Main Features
1. Easy to install, two people can finish the installation in half an hour;
2. Durable, reduce maintenance cost.
3. Battery driven, fuel saving.
Technical Data of 12 volt air conditioner for tractor
|
Model No. |
T20B |
| Installation style |
Roof-top Mounted |
|
Cooling Capacity |
9500Btu 2.8kw |
|
Voltage available |
DC12V, DC24V |
|
Compressor Type |
DC Electric scroll compressor. Brushless motor |
|
Working Current |
48A (12V), 35A(24V) |
|
Max. Current |
72A(12V), 55A(24V) |
|
Refrigerant Gas |
R134A |
|
Cooling air |
400cfb / 720m3/h |
|
Condenser fan |
11’ one pc |
|
Size |
L:856mm, W: 743mm, H:180mm |
|
Weight |
39Kg(86LBS) |
|
Air vent Qty |
5pcs |

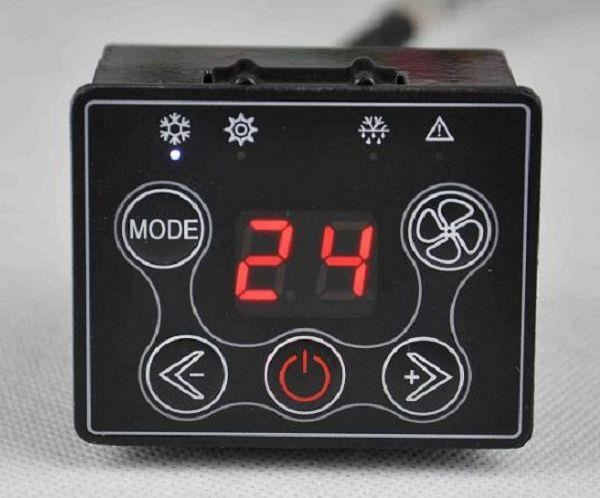

Controller.
Digital, Easy operation
Plug-in: 220V, 380V, (Electric Standby) is Optional
Different application of 12 volt air conditioner for tractor
