How to choose Transport Refrigeration Units?

Transport Refrigeration Units (TRU) are refrigeration systems designed to refrigerate temperature-sensitive goods that are transported in various containers, including truck, vans, semi-truck trailers, shipping containers,etc.

How to choose Transport Refrigeration Units? This guide will cover the different types of Transport Refrigeration Unit and help you to choose the most suitable solution.

1. Van Refrigeration Unit

For refrigerated vans, we have engine driven and battery driven van refrigeration unit for choice.

Engine Driven van refrigeration unit means that it is driven by the vehicle engine, so if the engine stops, the unit stops cooling either. Besides, a compressor and compressor bracket will be needed to install near the engine.

Battery driven van refrigeration units have DC electrical compressor built-in the condenser, so there is no need to install mechanical compressor again, just connecting alternator or battery for power source is ok.

When the engine is stopped, the dc electric refrigeration unit can continue to cool around 30 minutes (we can extend the duration by adding more batteries). If your vehicle does not have a space for additional compressor, DC Powered Electric Refrigeration Unit would be the best choice.

Battery driven van refrigeration unit is also best choice for electric vans as the mileage of electric vehicles will not be reduced.

1.1 Battery driven van refrigeration unit

Model C150TB chiller (-5℃) for compact vans.

Model V150TB Freezer(-20℃)for compact vans, and chiller for mid vans.

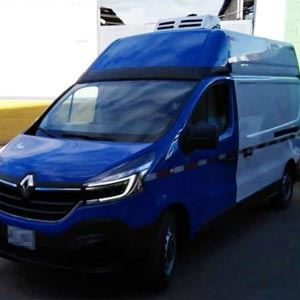

       Van-refrigeration-system-C150TB-in-Romania

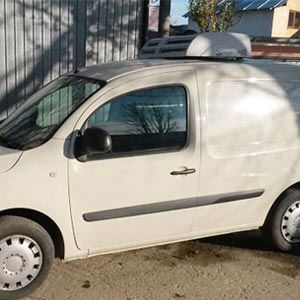

  Van refrigeration system C150TB in Romania

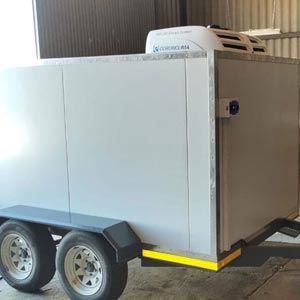

       Van-chiller-C150TB-in-South-Africa

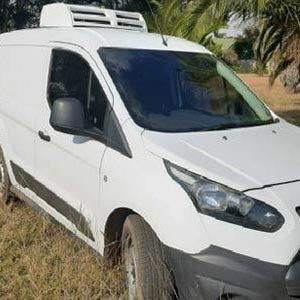

            Van chiller C150TB in South Africa



      Electric-Van-Refrigeration-Unit-V150TB-in-South-America

Electric Van Refrigeration Unit V150TB in South America

       Battery-Driven-Van-Freezer-Unit-V150TB-in-South-Africa

Battery Driven Van Freezer Unit V150TB in South Africa

 1.2 Engine driven van refrigeration unit

For Mini Van    chiller (-5℃)  C150T  freezer(-20℃)V150T

     Engine-driven-van-refrigeration-system-C150T-in-Morocco

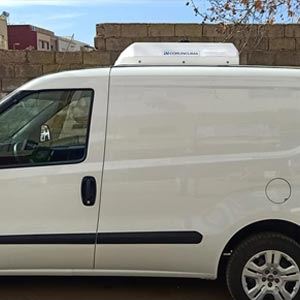

Engine driven van refrigeration system C150T in Morocco

       Engine-driven-van-fridge-V150T-in-Mexico

Engine driven van fridge V150T in Mexico

For Mid Van   chiller C300T/C350T   freezer(-20℃) V300T/V350T.

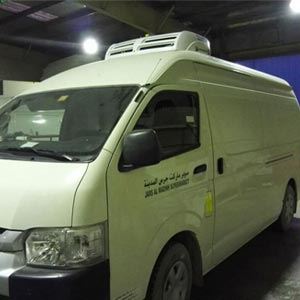

     Engine-driven-Van-chiller-Unit-C300T-in-UAE

Engine driven Van chiller Unit C300T in UAE

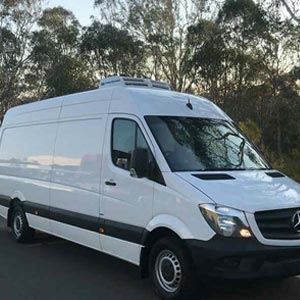

      Engine-driven-Van-Freezer-Unit-V300T-in-Australia

Engine driven Van Freezer Unit V300T in Australia



Model C150TB V150TB C150T C300T C350T V150T V300T V350T
Temperature -5℃ -20℃ -5℃ -5℃ -5℃ -20℃ -20℃ -20℃
Driven Battery  Battery  Engine  Engine  Engine  Engine  Engine  Engine

Application

(m³)

-5℃ 3 6-7 3 6-8 8-10 6-7 8-10 14-16
-20℃ NA 2.5-3.5 NA NA NA 3 6-7 8-10

If you are interested in our refrigeration units for cargo van, please contact us. info@corunclima.com

2. Truck refrigeration Unit

For refrigerated trucks, we have engine driven refrigeration unit,electric refrigeration unit, diesel Engine Refrigeration Unit for choice.

2.1Engine Driven refrigeration units for Pickup/Bakkie/UTE

     2.1.1 Chiller (-5℃) C150F/C300F

     2.1.2 Freezer(-20℃)V150F/V300F/V350F

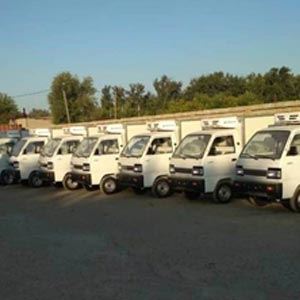

      Small-Truck-Refrigeration-Units-C150F-in-Uzbekistan

Small Truck Refrigeration Units C150F in Uzbekistan

       Pickup-Truck-Freezer-Unit-V350F-in-Australia

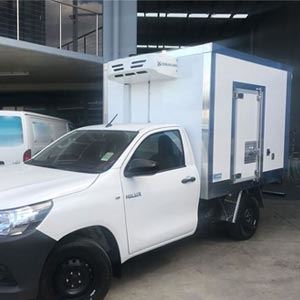

Pickup Truck Freezer Unit V350F in Australia

2.2 Engine Driven refrigeration units for Truck (12-18m³)   Freezer(-20℃) V450F/V550F

     Engine-Driven-Truck-reefer-V450F-in-Mexico

Engine Driven Truck reefer V450F in Mexico

       Engine-Driven-refrigeration-for-truck-V550F-in-Malaysia

Engine Driven refrigeration for truck V550F in Malaysia

2.3 Electric refrigeration unit for Truck(12-18m³)

Chiller (-5℃) C450FB    Freezer(-20℃)V450FB

    Electric-Truck-refrigeration-unit-Model-C450FB-in-Guam

Electric Truck refrigeration unit Model C450FB in Guam

      Electric-Truck-refrigeration-unit-Model-V450FB-in-USA

Electric Truck reefer unit Model V450FB in USA

2.4 For Truck(24-35m³)   Freezer(-20℃) V650F/V750F/V850F

    Truck-Freezer-Unit-V650F-in-Peru

         Truck Freezer Unit V650F in Peru

      Truck-Reeferr-Unit-V750F-in-Australia

         Truck Reeferr Unit V750F in Australia

2.5 For Truck (35-60m³)  Diesel Engine Refrigeration Unit is recommended.

Diesel Engine Truck Refrigeration Unit has its own engine, which means even the vehicle engine stops or breaks down, the unit continues cooling without being interfered.

In 2019, we have launched our 3rd generation diesel engine reefer units. Compared to old models, the 3rd generation diesel units use original Yanmar engine: Yanmar 3TNV76

3 cylinders, lower noise help you reduce the clients complain when delivery goods in early morning, lower fuel consumption help you reducing your running cost, less vibration, no damage to the insulation body.

With extremely powerful cooling power, diesel Transport Refrigeration Unit performs exceptionally in 7.6-9.6m length cargo container.

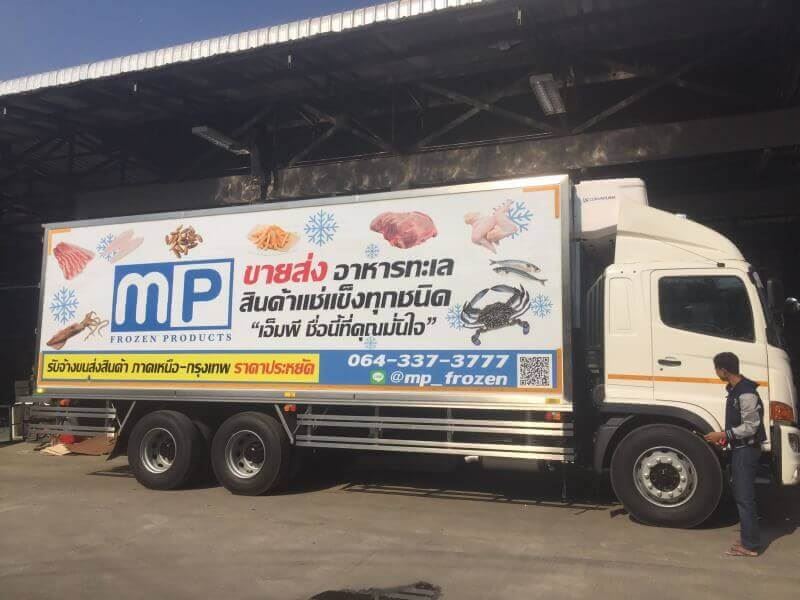

Diesel Engine Refrigeration Unit D1000 in Southeast Asia

Diesel Engine Refrigeration Unit D1000 in Southeast Asia



Model C150F C300F V150F V300F V350F V450F V550F V650F V750F V850F
Temperature -5℃ -5℃ -20℃ -20℃ -20℃ -20℃ -20℃ -20℃ -20℃ -20℃
Driven Engine  Engine  Engine  Engine  Engine  Engine  Engine  Engine  Engine  Engine

Application

(m³)

-5℃ 3 6-8 6-7 8-10 14-16 18 26 30 35 42
-20℃ NA NA 3 6-7 8-10 14-16 18-20 24-26 30 35



Model D1000 D1200
Temperature  frozen(-20℃)  frozen(-20℃)
Driven Diesel Engine Diesel Engine

Application(m³)

35-55

50-60

3.For both van refrigeration and truck refrigeration unit, electric standby system are available.

Electric Standby system is also called plug-in electric standby. It uses an external electric source enabling the refrigeration system to operate normally when the vehicle diesel engine shuts off. It works with an additional electric compressor to pump refrigerant gas through the TRU (transport refrigeration unit) when the vehicle engine is off.

Standby units are widely used on more used together with Engine Driven,Diesel Engine Refrigeration Units and electric refrigeration units, so that while the vehicle is parking and engine is off, driver can connect the standby unit with a charging pile to cool.

Corunclima has Split electric standby system and Integrated electric standby system (integrated in the condenser) for your choice.

 If you are interested in our refrigeration units for trucks, please contact us.  info@corunclima.com



How to choose a TRU supplier?

1.Brand reputation

Well-known brands indicate that their products have been verified by the market. It is often not wrong to choose products from well-known brands. However, products of well-known brands are often with higher price. If the budget is not high, choosing a reputable emerging brand is also a good choice.

2.Quality and Performance

Undoubtedly, the quality and performance of the product are crucial. High-quality products, even if they are a little expensive, can reduce the failure rate and will save you more.

3.After-sale service

Although you will choose good quality products, after-sales service is also essential. We offer one year warranty to our customers. We offer free spare parts if any part of the equipments under warranty needs to be replaced, after confirming the picture or video of the damaged part provided by distributor.

4.Successful cases

There are many differences in climate and vehicles conditions around the world, and different suppliers’ products are not the same. If there is successful case in your local area, you will be more sure that it is suitable for you. Of course, successful cases are also witnesses of product quality and performance.

5. Local dealer,warehouse and service team will provide great convenience

Local team can make product supply, installation,after-sale service more convenient.

Corunclima have warehouses in South Africa and Mexico. We have dealer in more than 20 countries.

6. R&D and Technical Team

An excellent team is not only a guarantee of product performance, but also can provide better technical support. Corunclima R&D and Technical has 16 people, 4 of whom are in Canada. Their average experience in HVAC systems is more than ten years.

7.Certification&Honors

As different countries and regions have different certification requirements for products, please check with the supplier whether they have the certification you need. Corunclima have passed TS 16949,ISO9001,ATP,EMC Test in German,CE Test in Romania,etc.

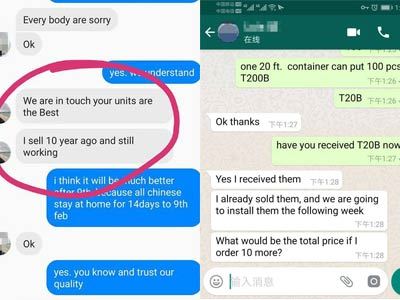

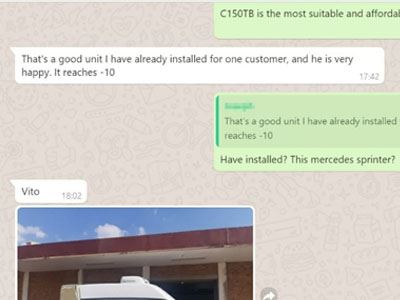

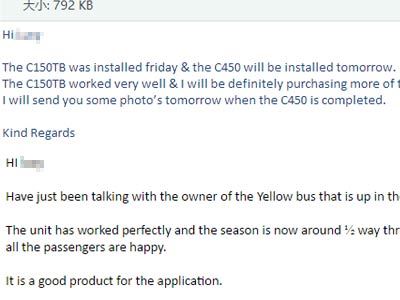

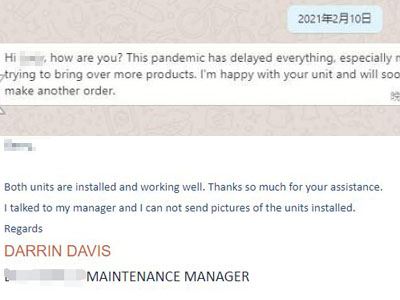

8.Customer feedback

Please remember to pay attention to what customer say as it is more valuable.

2 1
       customer feedback         feedback

For more customer feedback, please visit our Facebook and Linkedin Page



For more information about how to choose TRU, you can contact us. Our dedicated refrigeration professionals can and will answer any questions that have not been answered by this guide.  info@corunclima.com
