12 volt air conditioner for van AC100TB is a new type of air conditioner independently developed by Counclima. no need add compressor near the engine, when engine off, the AC still cooling with battery.
Electric vehicle air conditioning system AC100TB is monoblock all roof mounted type bus A/C for Engine Vans, Buses, Pure Electric and Hybrid Passenger Vans.
Benefit of 12 volt air conditioner for van AC100TB
1.Maintains Cooling when Engine-Off.
2.No Noise. No compressor Noise.
3.Save Engine Power. No power consumption for compressor. 2-3 hours is enough for one van.
4.Installation is very easy, No need to install compressor,air duct.
5. Battery/alternator driven, Save fuel
Technical Data of 12 volt air conditioner for van AC100TB
|
Model NO. |
AC100TB | |
|
Cooling Capacity |
9.6KW/32800BTU | |
|
Voltage |
DC12V/DC24V | |
|
Current |
120A(12V)/75A(24V) | |
|
Refrigerant |
R134A | |
|
Evaporator Air Flow Volume |
1600M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
2 |
|
Dimension |
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 56Kg | |
|
Evaporator |
Fan Quantity |
2 |
|
Dimension |
NA | |
|
Weight |
NA | |
|
Applying |
4.5-6.0m Van | |
Controller of 12 volt air conditioner for van AC100TB.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

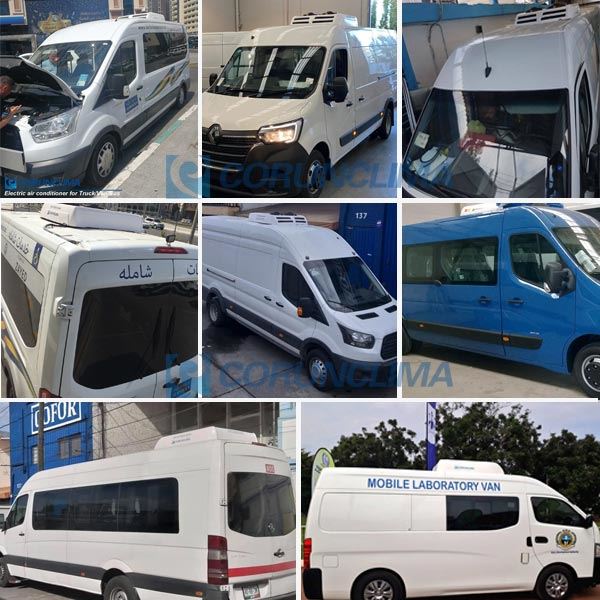

Successful Cases of 12 volt air conditioner for van AC100TB:
Corunclima all electric air conditioner for electrical buses, already installed in Mid-east countries from 2015 years (Ambient temperature more than 50C degree) and still increasing fast.
Looking for partners.
