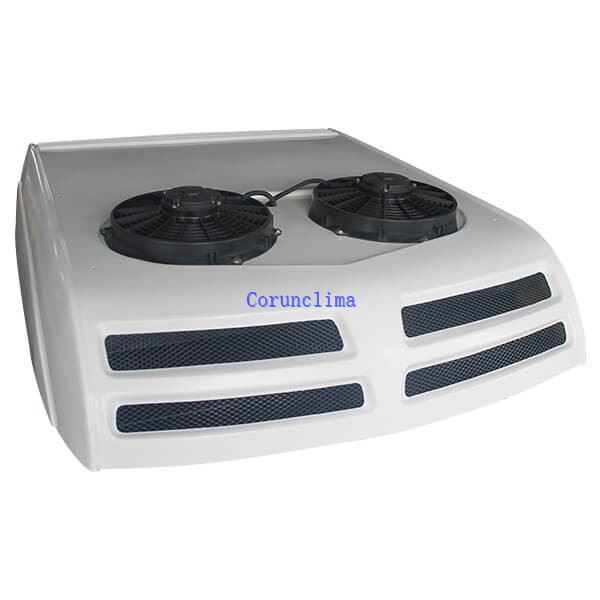

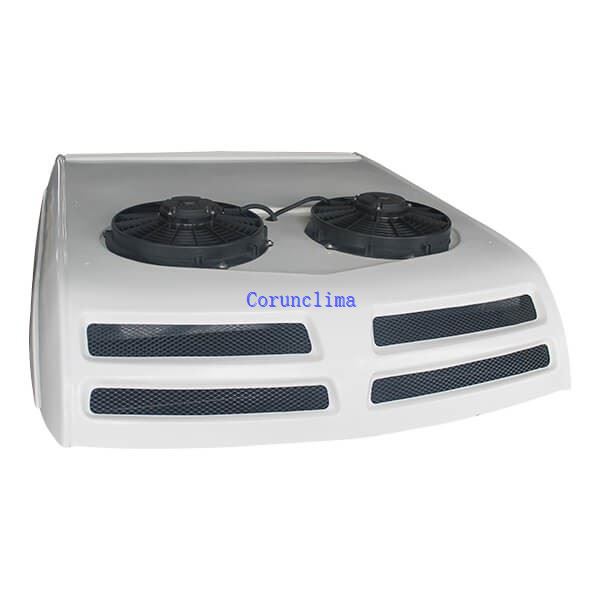

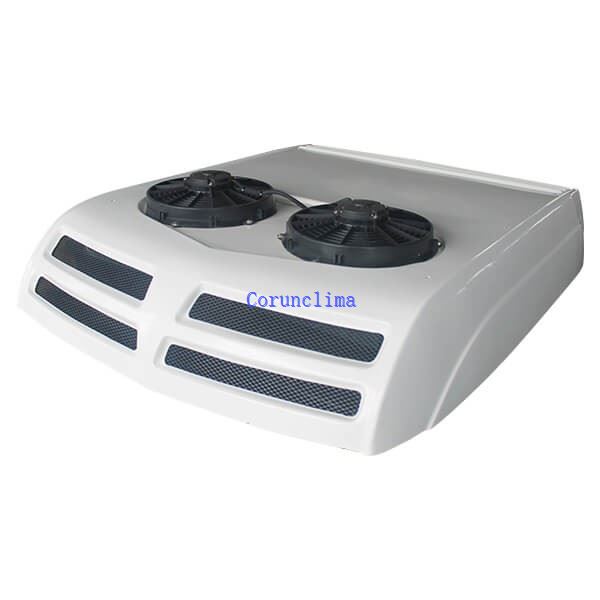

Corunclima 100% DC Electric Battery Driven A/C
Application for pure electric vehicles, or diesel engine vehicles.
Even in Mid-east countries, where Ambient temperature is more than 52℃, Corunclima electric bus air conditioner AC100TB still work perfect too. Special for Full Electrical bus, Van, Hybrid bus, EV bus.
Benefit
1) No need to install mechanic compressor or bracket set, installation is easier and cost-saving.
2)A/C can still cool the passengers when engine is off, save fuel, make passengers comfortable.
3)Whole cost (A/C cost+installation cost+managing cost)=Conventional A/C Cost*30%-50%
4)Save fuel.
5)roof mounted, light weight, fit for vehicle of different width.
Technical Data
|
Model NO. |
AC100TB | |
|
Cooling Capacity |
9.6KW/32800BTU | |
|
Voltage |
DC12V/DC24V | |
|
Current |
120A(12V)/75A(24V) | |
|
Refrigerant |
R134A | |
|
Evaporator Air Flow Volume |
1600M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
2 |
|
Dimension |
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 56Kg | |
|
Evaporator |
Fan Quantity |
2 |
|
Dimension |
NA | |
|
Weight |
NA | |
|
Applying |
4.5-6.0m Van | |
Controller.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

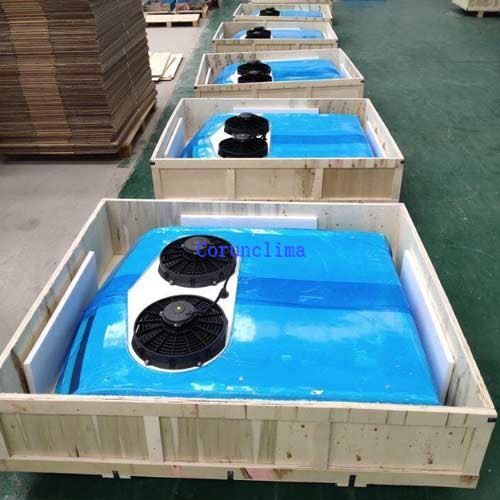

Successful Cases of Corunclima Battery air conditioner AC100TB:
