Air conditioner for all terrain vehicles AC60TB is monoblock all roof mounted type. Roof top mounted, R134A pre-filled. Stop Engine and battery driven.
Benefit
1.Easy installation. No need install mechanical compressor feed by engine. Just ppen hole, fix it, connect wiring, its enough.
2.Fast cooling. 10miutes will feeling cool.
3.Durable. Used in UAE, Australia etc very hot countries from 2016 years.
4.100% presser test and electric test
Technical Data
|
Model NO. |
AC60TB | |
|
Cooling Capacity |
6.8KW/23200BTU | |
|
Voltage |
DC12V/DC24V | |
|
Current |
75A(12V)/45A(24V) | |
|
Refrigerant |
R134A | |
|
Evaporator Air Flow Volume |
850M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
1 |
|
Dimension |
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 48Kg | |
|
Evaporator |
Fan Quantity |
1 |
|
Dimension |
NA | |
|
Weight |
NA | |
|
Applying |
4.5-5.5m Van | |
Controller.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

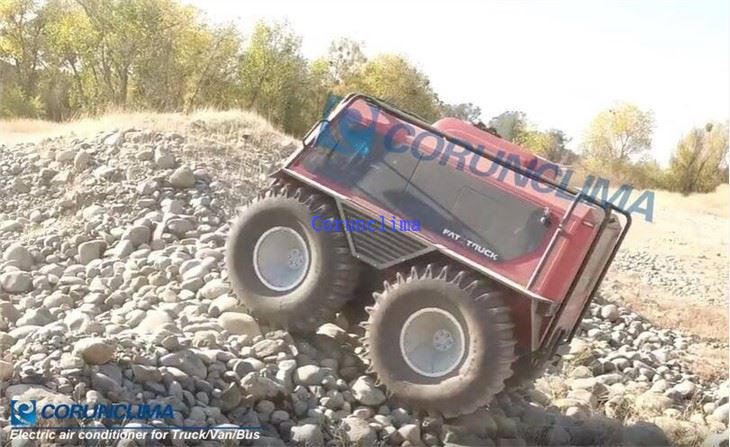

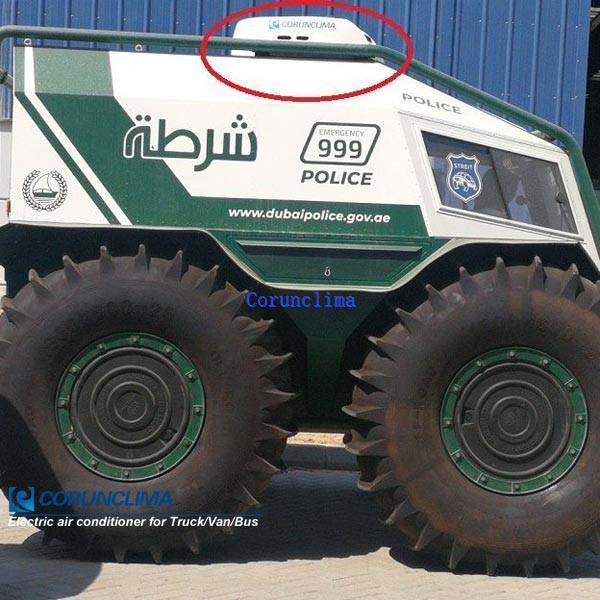

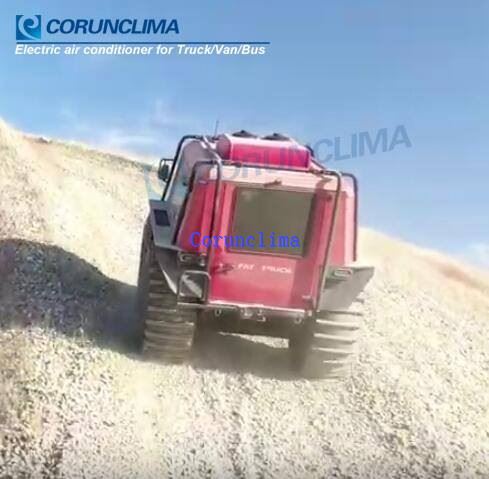

Successful Cases of Air conditioner for all terrain vehicles:
Full Electric is Future, We are Already Here.
From 2006 years, we start design, manufacture, and export the Full Electric A/C units. We already own the key technology of the Full Electric A/C units for engineering vehicle.
Corunclima will continue to provide customers with high-quality and cost-effective products to make customers have more advantages in the competition.
Dealer wanted.
