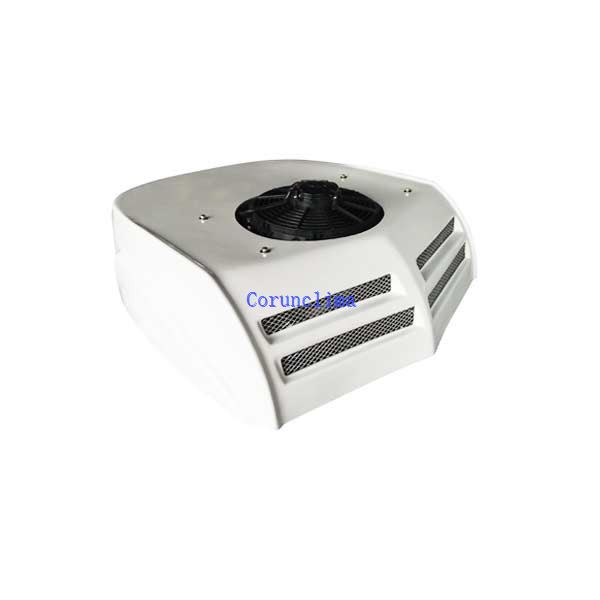

Air conditioner for backhoe loader T20B is powered by battery. It can work when the engine is on, and it can still work when the engine is off.
Main Features
1. Full DC electric and ZERO Emission
2. We use most Key parts of Top brand to ensure long servie life, increase your equipment utilization
3. 100% electric test and pressure test before shipping.
4.One piece design, easy to install, just two workers 0.5 hours;
5.Good stability and durability. Special for various heavy duty vehicles,such as Earthmoving machinery, Excavators, dumper trucks, tram cabs, Locomotive cabs, Electric Vehicles,
6.Compressor builtin, receiver builtin, no need to find bracket or space for them at all.
Technical Data
|
Model NO. |
T20B |
|
Cooling Capacity |
2.2-2.5KW/8,500BTU |
|
Voltage |
DC12V/DC24V |
|
Current |
48A(12V)/33A(24V) |
|
Evaporator Air Flow Volume |
750M³ /H |
|
Compressor |
Totally-enclosed, DC-powered, direct connection brushless motor |
|
Controller |
Digital/Manual |
|
Installation |
All roof top mounted |
|
Bunk Heater |
Optional |
|
Applying |
Heavy- duty vehicles&machinery with 12V/24V |
The entire air conditioner is integrated, with compressors, condensers, blowers and other accessories inside.
Controller.
Digital, Easy operation
Plug-in: 220V, 380V, (Electric Standby) is Optional

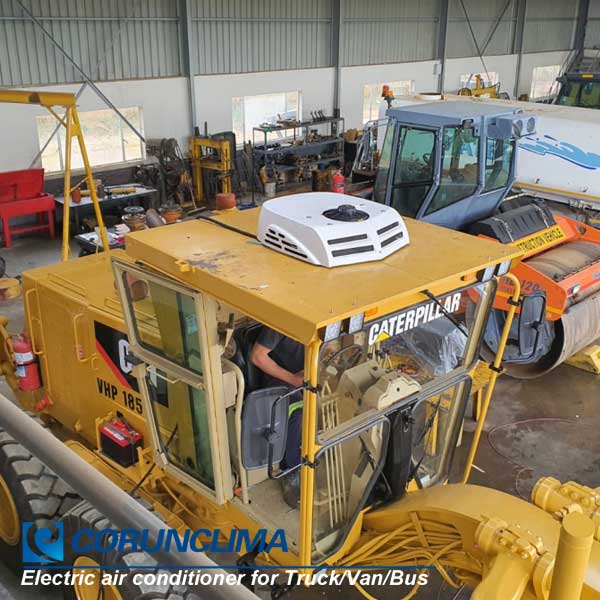

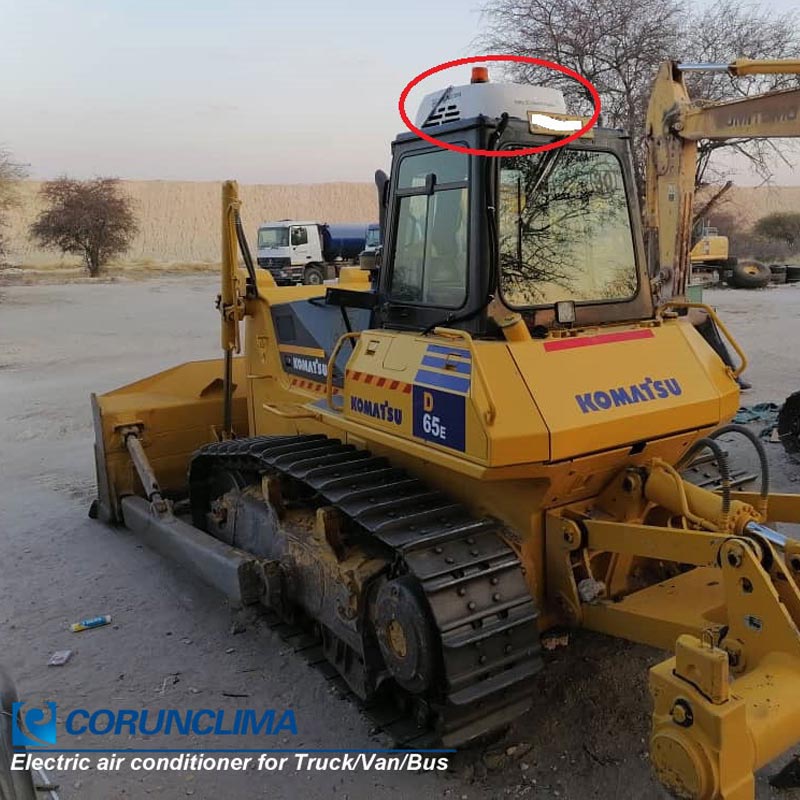

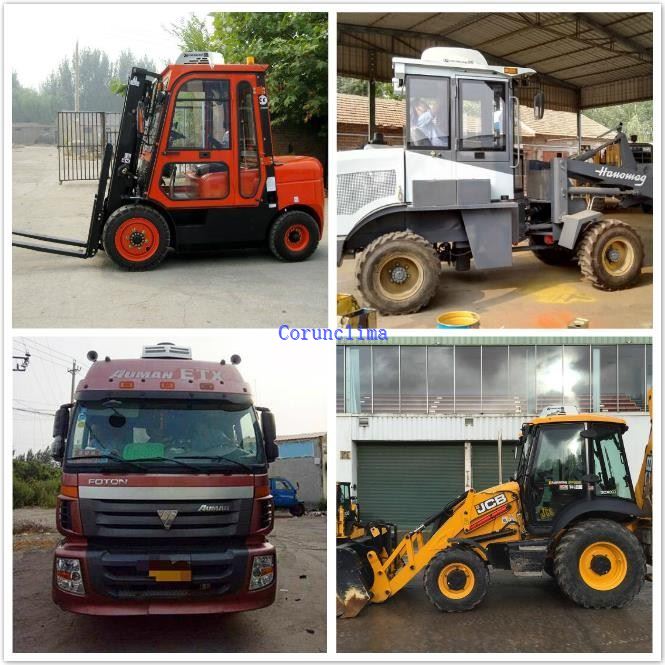

Successful Cases:
We have more than 10 years' expericence in Full Electric air conditioner. We already own the key technology and can provide mature all electric cooling solution. Our product have been widly installed in South africa, Mexico, Australia, USA, Argentia, Chile.etc.
If you are looking for Air conditioner for backhoe loader, please feel free to contact us. info@corunclima.com
