Battery driven refrigeration units are driven by 12V/24V vehicle original battery, both R134a and R404a are available.
For fuel driven vehicles, it can help logistics customers save more than 4000L fuel.
Benefit
1.Full DC Electrical, will reduce fuel consumption, reduce noise and reduce emissions to the environment.
2.Lower maintenance for most Key parts of Top brand.
3.Easy to install. No need to install a compressor bracket, just connect the electric compressor to the battery directly.
4.Already installed in USA, Canada, Mexico, Australia etc countries.
5.Compatible with electric vehicles and engines.
Technical Data
| Model | C150TB | |
|
Driven |
100% DC12V Powered by battery | |
|
Temperature |
-5℃ | |
|
Cooling Capacity |
1380w(-5℃) | |
|
Refrigerant |
R134A | |
|
Compressor |
DC 12V Electric Compressor | |
|
Condenser |
Fan Quantity |
1 |
|
Dimension |
1050*783*190mm | |
|
Weight |
28Kg | |
|
Evaporator |
Fan Quantity |
1 |
|
Dimension |
766*520*130mm | |
|
Weight |
12Kg | |
|
Electric Current |
72A | |
|
Application |
+5℃ |
6m3 |
|
-5℃ |
3m3 | |
Controller. Digital, Easy operation. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

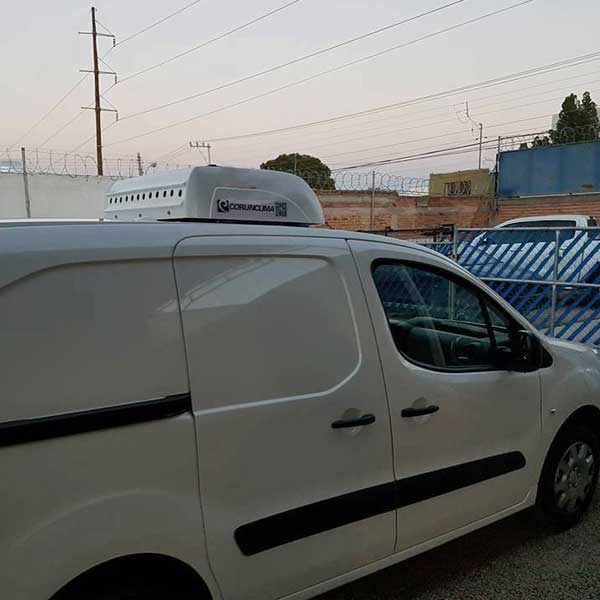

Successful Cases
We have over 20 years history and are TOP 1 export manufacturer among all Chinese Suppliers.
Since 2008, we already installed the PURE DC Electrical units in USA, Canada, Mexico, Australia etc countries, totally more than 6000sets.
Dealer wanted, welcome to visit our factory and cooperate with us!
Inquiry to info@corunclima.com
