Main Features
1. Environmentally friendly, Meet EPA SmartWay standard and anti-idling laws
2. A/C can bring cool while Parking.
3. Easy to install, two people can finish the installation in half an hour;
4. Durable, reduce maintenance cost.
5. Battery driven, fuel saving.
Technical Data of Battery powered apu for semi trucks
|
Model No. |
K20BS2 |
T20B |
T60B |
| Installation style |
Back-wall mounted |
Roof-top Mounted |
Roof-top Mounted |
|
Cooling Capacity |
9500Btu 2.8kw |
9500Btu 2.8kw |
19800Btu 5.8kw |
|
Voltage available |
DC12V, DC24V |
DC12V, DC24V |
DC12V, DC24V |
|
Compressor Type |
DC Electric scroll compressor. Brushless motor |
DC Electric scroll compressor. Brushless motor |
DC Electric scroll compressor. Brushless motor |
|
Working Current |
48A (12V), 35A(24V) |
48A (12V), 35A(24V) |
85A (12V), 70A(24V) |
|
Max. Current |
72A(12V), 55A(24V) |
72A(12V), 55A(24V) |
155A (12V), 115A(24V) |
|
Refrigerant Gas |
R134A |
R134A |
R134A |
|
Cooling air |
400cfb / 720m3/h |
400cfb / 720m3/h |
550cbf / 900m3/h |
|
Condenser fan |
11’ one pc |
11’ one pc |
12’ one pc |
|
Size |
Condenser: L:752mm, W: 676mm, H:182mm Evaporator: L:582mm, W: 310mm, H:138mm |
L:856mm, W: 743mm, H:180mm |
L:1263mm, W:1040mm, H:198mm |
|
Weight |
Condenser: 32KG(70.5LBS) Evaporator: 8.5KG(18.7LBS) |
39Kg(86LBS) |
55Kg(121LBS) |
|
Air vent Qty |
4pcs |
5pcs |
8pcs |
Controller.
Digital, Easy operation
Plug-in: 220V, 380V, (Electric Standby) is Optional

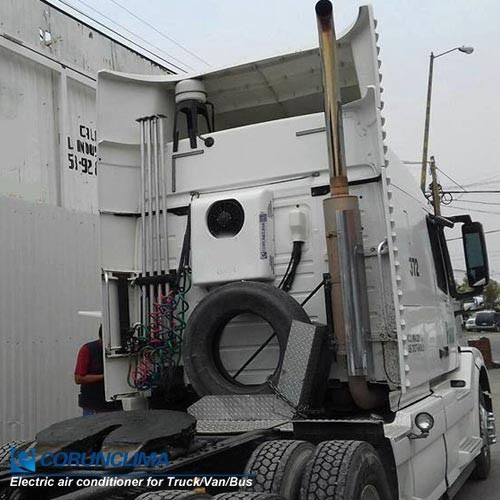

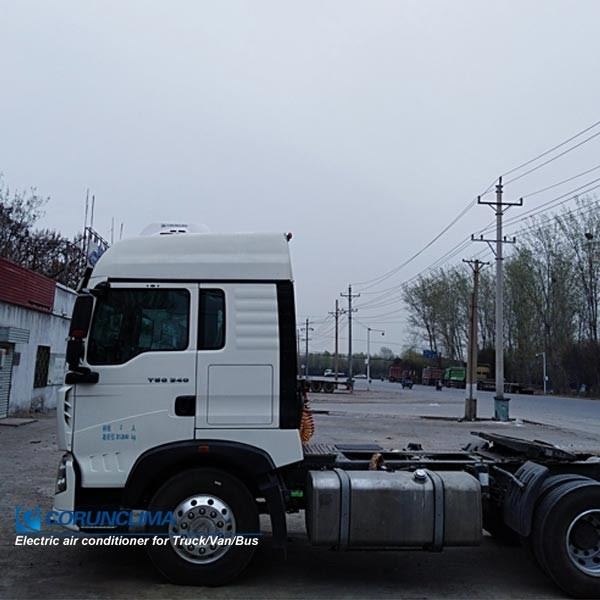

Successful Cases
Full elelctric is the future. Our Battery powered apu for semi trucks have been widely installed in USA, Mexico, Australia and so on.
We have warehouse in Mexico and South Africa.
Looking for long-term partners.
Inquiry to info@corunclima.com
FAQ
1. Do I need to equip another generator?
There is no need to equip the generator. You can directly use the generator on the truck. As long as the engine of the truck is working, the generator can charge the battery.
2. If the battery is exhausted, how long will it take to fully charge the battery when it is started next time?
If the 4 batteries are used up and the engine is started, it will be fully charged in 3.5-4 hours. The capacity and quality of the batteries are different, and the charging time may be different.
3. If the original truck battery is used, will the battery life be affected?
Use the original car battery, 2 batteries 220AH-260AH, the working time of the air conditioner is relatively short, only 2-3 hours, it is recommended to install 4-6 batteries; after the battery is used for a period of time, the battery capacity will decrease, generally 2.5 -Replace the battery with a new one after 3 years.
4. If the driver gets off the vehicle without turning off the air conditioner, will there be any danger?
If the driver forgets to turn off the air conditioner after getting off the vehicle, don't worry, the air conditioner has low voltage protection. When the battery voltage is lower than a certain value, the air conditioner will automatically shut down.
