Corunclima all electric bus air conditioner AC100TB is special for minibus, ambulance, vans, etc.
No need install mechnical compressor, save fuel, keep quiet, easy to operate make it sell well in Domestic and foreign markets.

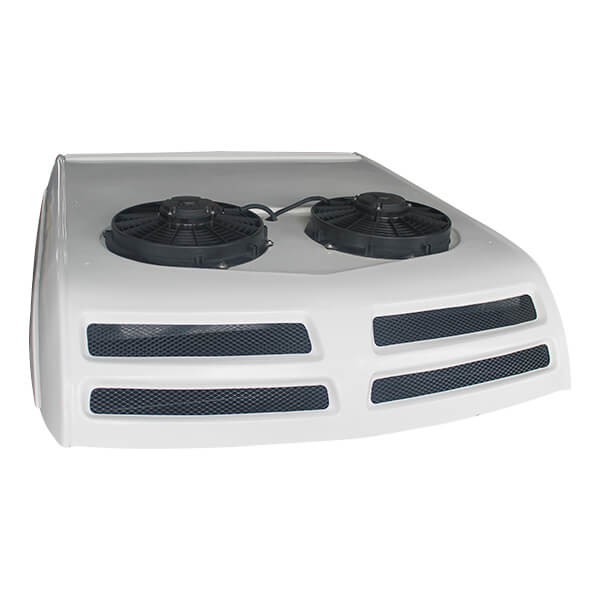

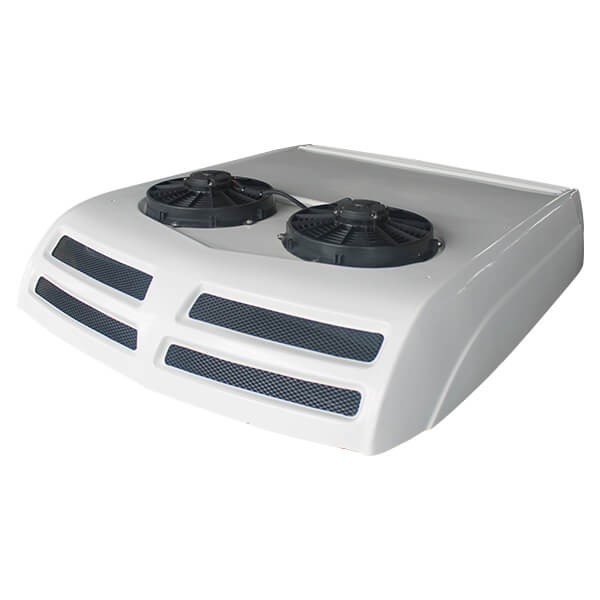

Electric vehicle air conditioning system AC100TB is monoblock all roof mounted type bus A/C for Engine Vans, Buses, Pure Electric and Hybrid Passenger Vans.
Benefit of Cooling Systems for electric vehicles AC100TB
1.Maintains Cooling when Engine-Off.
2.No Noise. No compressor Noise.
3.Save Engine Power. No power consumption for compressor. 2-3 hours is enough for one van.
4.Installation is very easy, No need to install compressor,air duct.
5. Battery/alternator driven, Save fuel
Technical Data of Cooling Systems for electric vehicles AC100TB
|
Model NO. |
AC100TB | |
|
Cooling Capacity |
9.6KW/32800BTU | |
|
Voltage |
DC12V/DC24V | |
|
Current |
120A(12V)/75A(24V) | |
|
Refrigerant |
R134A | |
|
Evaporator Air Flow Volume |
1600M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
2 |
|
Dimension |
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 56Kg | |
|
Evaporator |
Fan Quantity |
2 |
|
Dimension |
NA | |
|
Weight |
NA | |
|
Applying |
4.5-6.0m Van | |
Controller.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

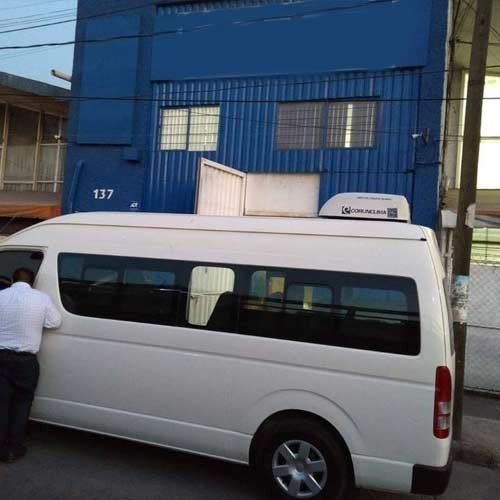

Successful Cases:
Even in Mid-east countries, where Ambient temperature is more than 52℃, humidity 100%，Corunclima Cooling Systems For Electric Vehicles work perfect too. Special for Full Electrical bus, Van, Hybrid bus, EV bus.
Full Electric is Future, We are Already Here. Dealer wanted. OEM/ODM are welcome.
Inquiry to info@corunclima.com
