Earthmoving air conditioner T20b is driven by battery.
Main Features
1.Monoblock. No need Mechnical compressor. Very easy to install.
2.Release 10% Engine power when driving compare with Engine driven A/C.
3.Durable. suitable for various mine environments,agricultural vehicles.
4.Lower maintenance for most Key parts of Top brand.
5.All parts are integrated into 1 monoblock, you never touch unnecessary parts at all, no risk of breaking any other parts.
Technical Data
|
Model NO. |
T20B |
|
Cooling Capacity |
2.2-2.5KW/8,500BTU |
|
Voltage |
DC12V/DC24V |
|
Current |
48A(12V)/33A(24V) |
|
Evaporator Air Flow Volume |
750M3 /H |
|
Compressor |
Totally-enclosed, DC-powered, direct connection brushless motor |
|
Controller |
Digital/Manual |
|
Installation |
All roof top mounted |
|
Bunk Heater |
Optional |
|
Applying |
Heavy- duty vehicles&machinery with 12V/24V |
Controller.
Digital, Easy operation
Plug-in: 220V, 380V, (Electric Standby) is Optional

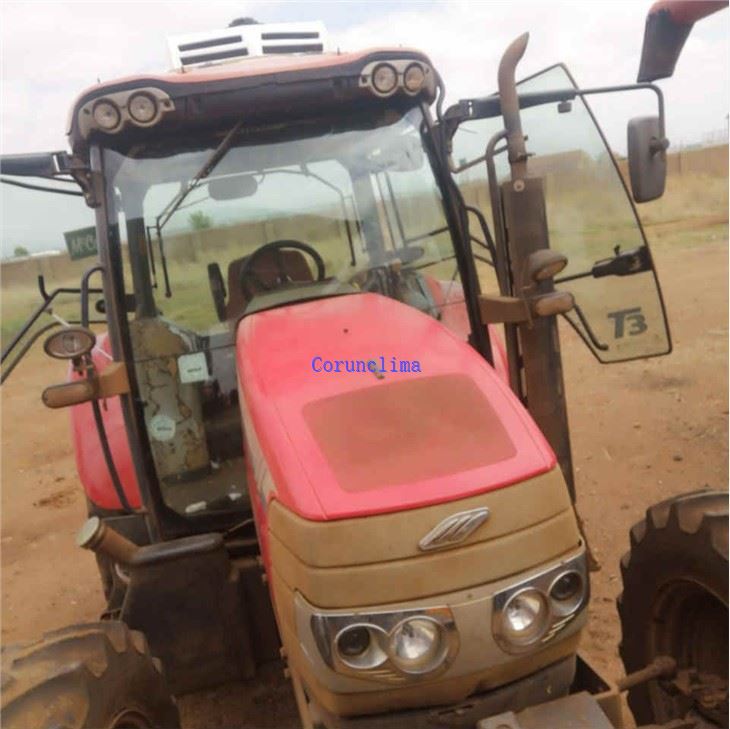

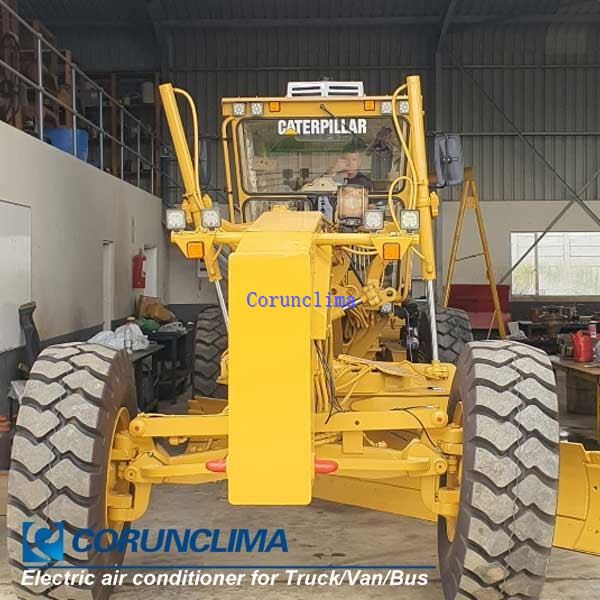

Successful Cases:
We begin to design, manufacture, and export DC electrical refrigeration units and air conditioners since 2006. We can not only provide all dc electric air conditioner, but also provide you with cooling solution according to your requirements.
Dealer wanted. If you are looking for Earthmoving air conditioner, please send inquiry to info@corunclima.com
