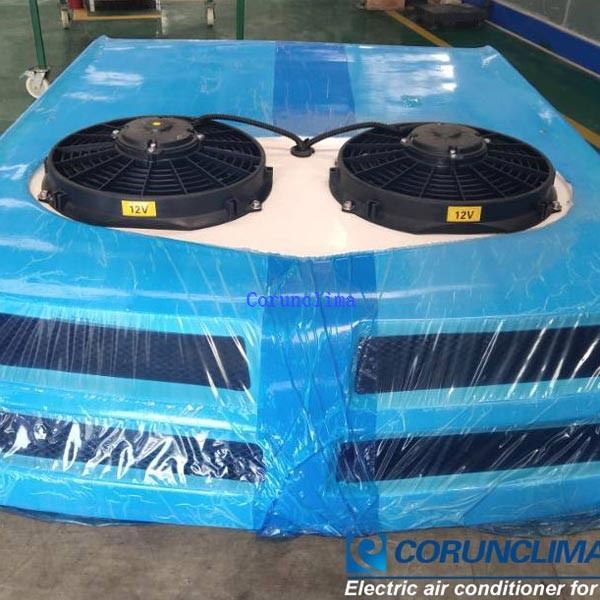

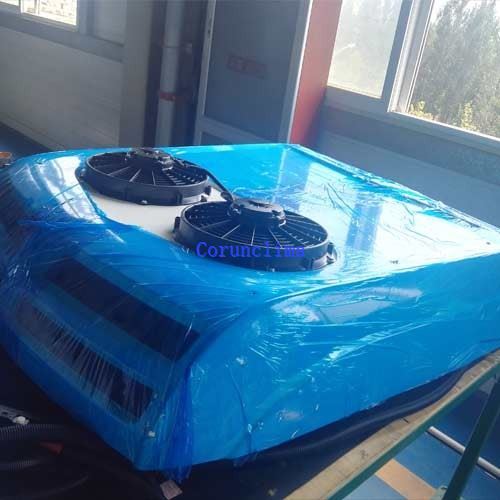

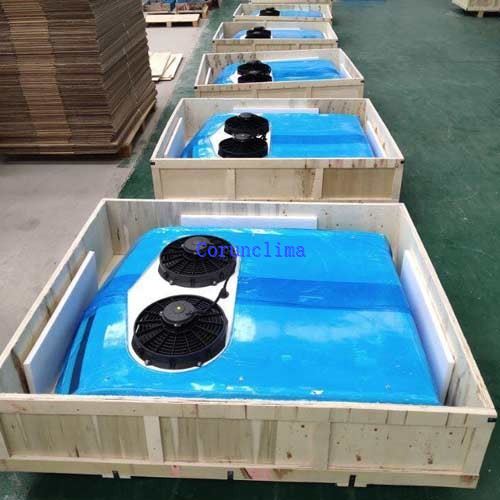

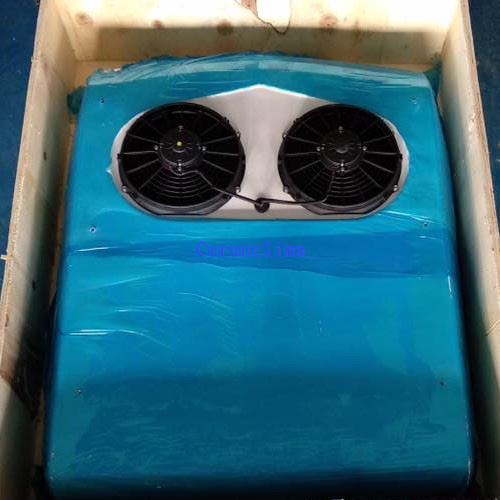

This DC series Electric air conditioner is driven by DC12V/DC24V directly (Alternator or Battery). All system (Compressor, Fan, Blower etc) are DC12V/DC24V electrical.
Engine drive alternator, the alternator drive the whole a/c system or alternator charge battery and battery drive the whole a/c system.
It is new Green technology. No need engine driven compressor. Easy installation, no noise, Zero Emission.
Even when Ambient temperature is more than 52℃ ,Corunclima full-Electric air conditioner for bus can still work perfectly too.
Compatible with Full Electrical bus, Van, Hybrid bus, EV bus.
Benefit of Electric air conditioner for bus
1.Battery powed, save fuel.
2.Strong cooling capacity, sufficient cooling air, low noise.
3.Customized 12V and 24V compressor with brushless motor
4.Reasonable outlet designed to prevent the water reflow
5.Compressor controller and compressor are integrated to reduce failure rate
6.Automobile special wiring harness, anti-electromagnetic interference
7.With the same cooling capacity, the current is the smallest.
8.keep quiet, easy to operate
Technical Data
|
Model NO. |
AC60TB | AC65B | AC100TB | |
|
Cooling Capacity |
6.8KW/23200BTU | 6.0KW/20500BTU | 9.6KW/32800BTU | |
|
Voltage |
DC12V/DC24V | DC12V/DC24V | DC12V/DC24V | |
|
Current |
75A(12V)/45A(24V) | 60A(12V)/42A(24V) | 120A(12V)/75A(24V) | |
|
Refrigerant |
R134A | R134A | R134A | |
|
Evaporator Air Flow Volume |
850M3 /H | 1100M3 /H | 1600M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | DC 12V/24V Electric Compressor | DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
1 |
1 | 2 |
|
Dimension |
Monoblock 1263*1040*198mm |
1050*783*190mm
|
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 48Kg | 29Kg | Monoblock 56Kg | |
|
Evaporator |
Fan Quantity |
1 |
1 | 2 |
|
Dimension |
NA | 677*298*140mm | NA | |
|
Weight |
NA | 12Kg | NA | |
|
Applying |
4.5-5.5m Van | 4.5-5.5m Van | 4.5-6.0m Van | |
Controller of Electric air conditioner for bus.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

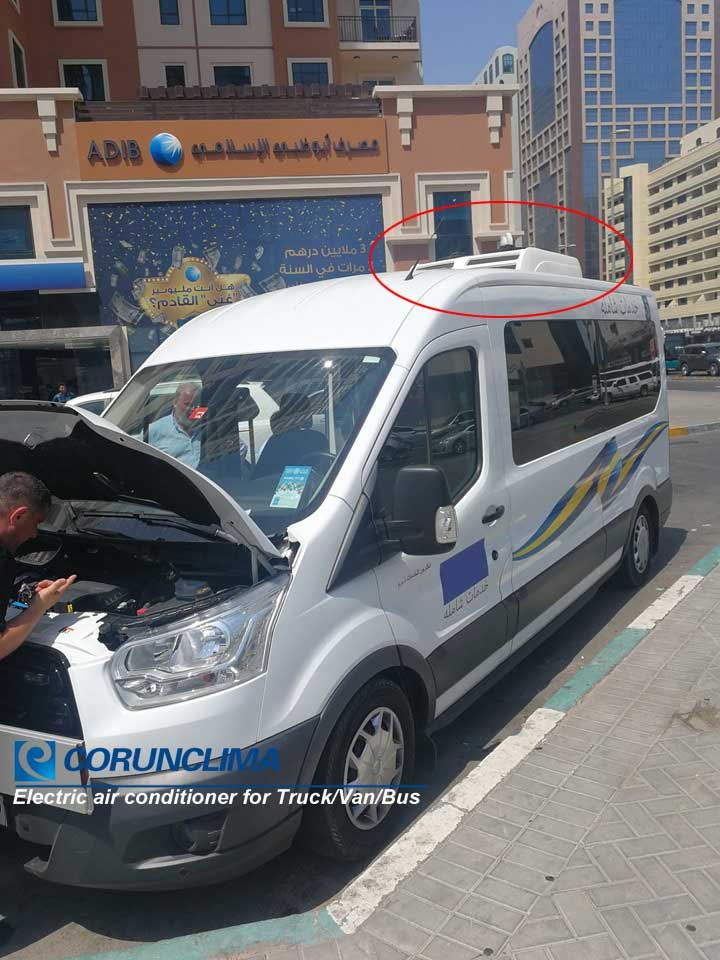

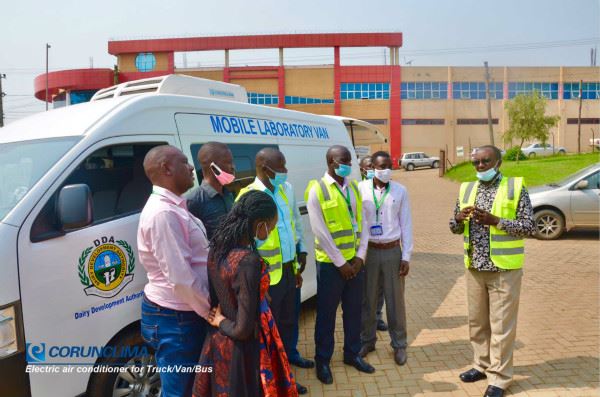

Successful Cases of Electric air conditioner for bus:
Since 2006, we start to design, manufacture, and export the Full Electrical air conditioners,leading the cutting-edge technology of electric air conditioners. Our Electric air conditioner for bus have been widely installed in Mexico, South africa, Australia, US, etc. We have different cooling solution for different applications.
If you are looking for Electric air conditioner for bus, or want to be our dealer, please feel free to contact us. info@corunclima.com
