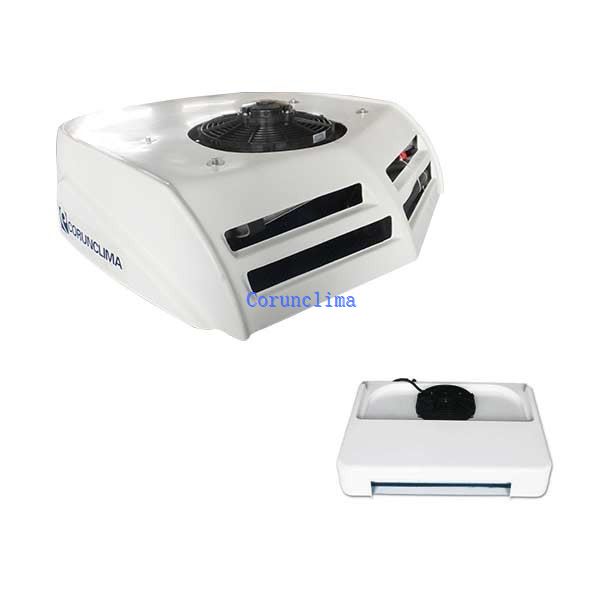

Corunclima Electric Transport Refrigeration Units are the Best Solution for Urban Deliveries. Especially applied to Full Electric Cargo van, Chiller van, food van, Engine van, Hybrid Van.
Benefit
1. When you load or unload goods from vans, you can shut-off engine and still cooling that driven by battery directly.
2.No need install mechanical compressor feed by engine.
3.Lower maintenance for without Mechanical compressor.
4.Digital control system, easy to operate, and can accurately monitor the operation of the entire system.
Technical Data
|
Model |
V150TB |
|
|
Driven |
100% DC12V Powered by battery |
|
|
Temperature |
-20℃ |
|
|
Cooling Capacity |
760W(-20℃) |
|
|
Refrigerant |
R404A |
|
|
Compressor |
DC vortex compressor |
|
|

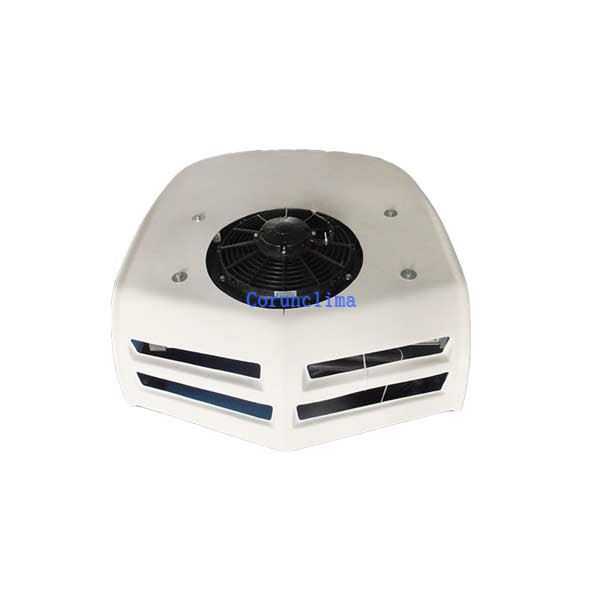

Condenser |
Fan Quantity |
1 |
|
Dimension |
856*743*165 |
|
|
Weight |
29Kg |
|
|

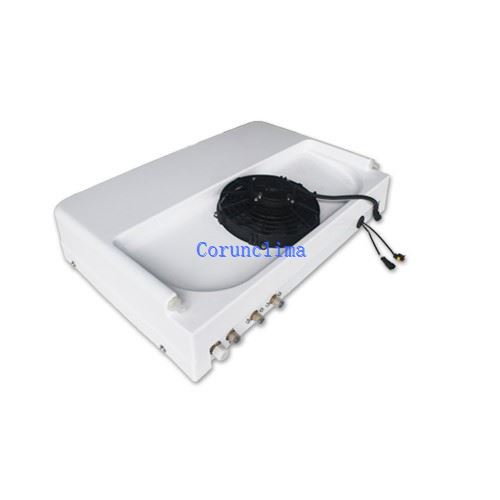

Evaporator |
Fan Quantity |
1 |
|
Dimension |
766*520*130 |
|
|
Weight |
12Kg |
|
| Electric Current | Application | |
| Application | +0°C | 7-8 m3 |
| -5°C | 6-7 m3 | |
| -10°C | 4-5 m3 | |
| -20°C | 2.5—3.5 m3 | |
Controller.
Digital, Easy operation. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional
Successful Cases of Electrical Van refrigeration unit V150TB:
We have already installed the PURE DC Electrical units in USA, Canada, Mexico, Australia etc countries, totally more than 6000sets.
