10Kw Electric Vehicle Air Conditioning System AC100TB is a new type of air conditioner independently developed by Counclima. When engine off, the AC still cooling with battery.

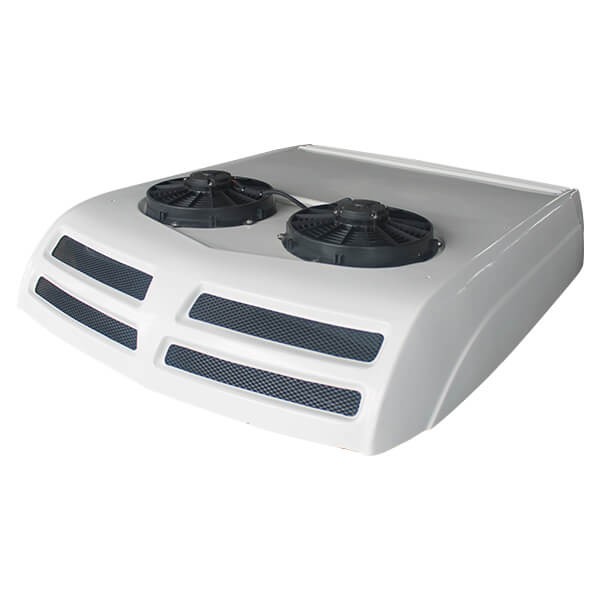

Electric vehicle air conditioning system AC100TB is monoblock all roof mounted type bus A/C for Engine Vans, Buses, Pure Electric and Hybrid Passenger Vans.
Benefit
1.Maintains Cooling when Engine-Off. ( when Van parking or Waiting)
2.No Noise. No compressor Noise.
3.Save Engine Power. No power consumption for compressor.
4.Installation is very easy,two workers two hours is ok
5. Save fuel
6. Pure DC Electrical, DC12V, DC24V, DC48V, DC72V, DC110V, DC400V are available.
Technical Data
|
Model NO. |
AC100TB | |
|
Cooling Capacity |
9.6KW/32800BTU | |
|
Voltage |
DC12V/DC24V | |
|
Current |
120A(12V)/75A(24V) | |
|
Refrigerant |
R134A | |
|
Evaporator Air Flow Volume |
1600M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
2 |
|
Dimension |
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 56Kg | |
|
Evaporator |
Fan Quantity |
2 |
|
Dimension |
NA | |
|
Weight |
NA | |
|
Applying |
4.5-6.0m Van | |
Controller
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

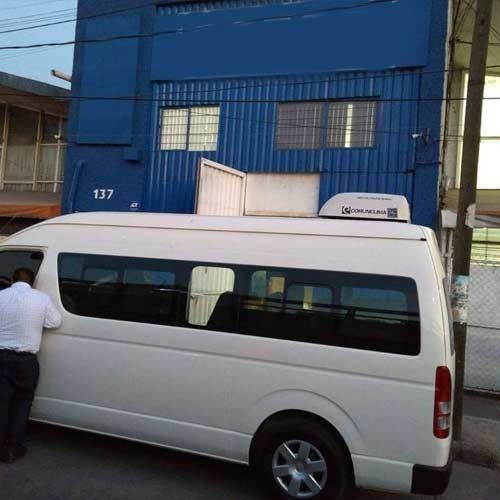

Successful Cases of Electric vehicle air conditioning system AC100TB:
We started to design, produce and export DC Electric Battery Driven Refrigeration Units and DC Electric Aircon since 2006, we own the key technology.
Corunclima units have been widely installed in North America, South America, South Africa, Australia, and Southeast Asia countries.
We are seeking for dealer worldwide, welcome to visit our factory and cooperate with us!
