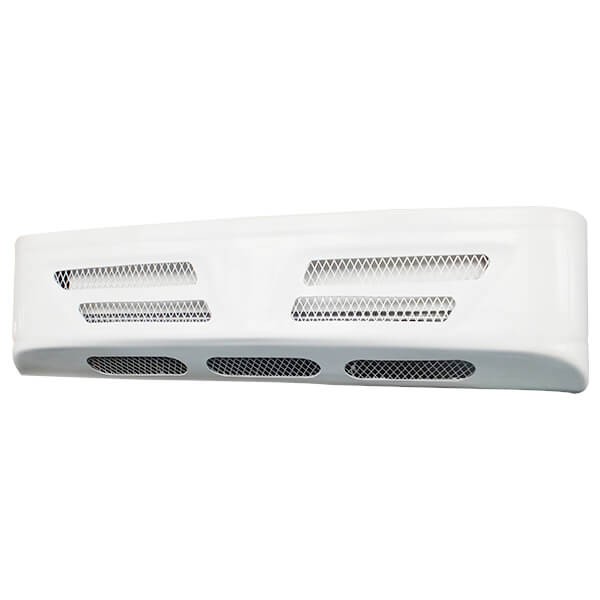

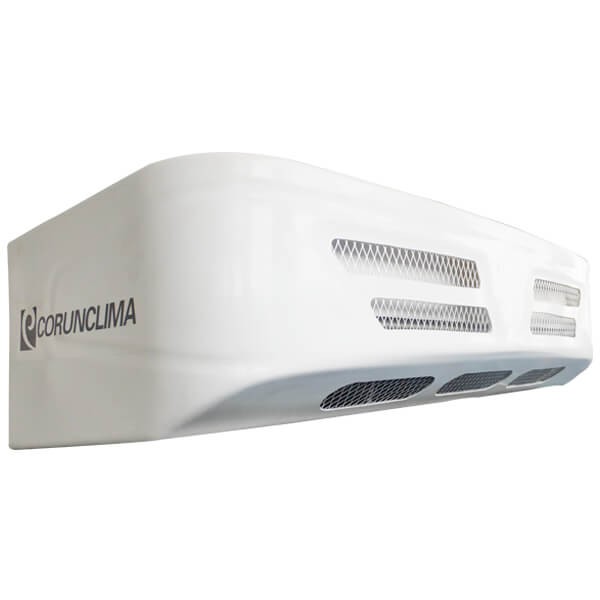

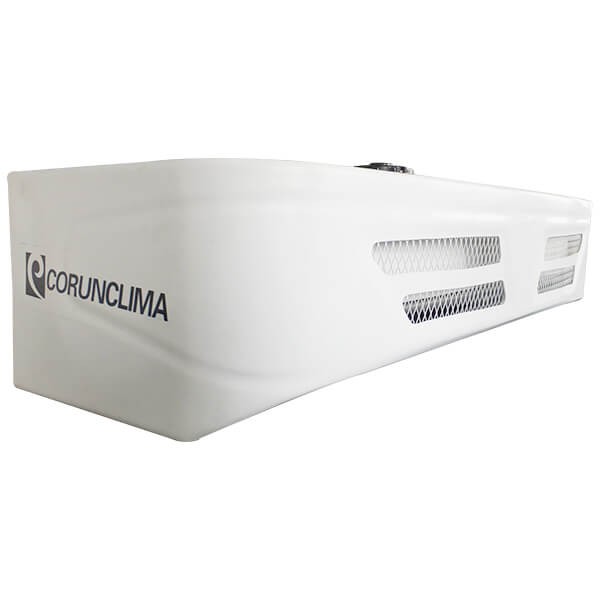

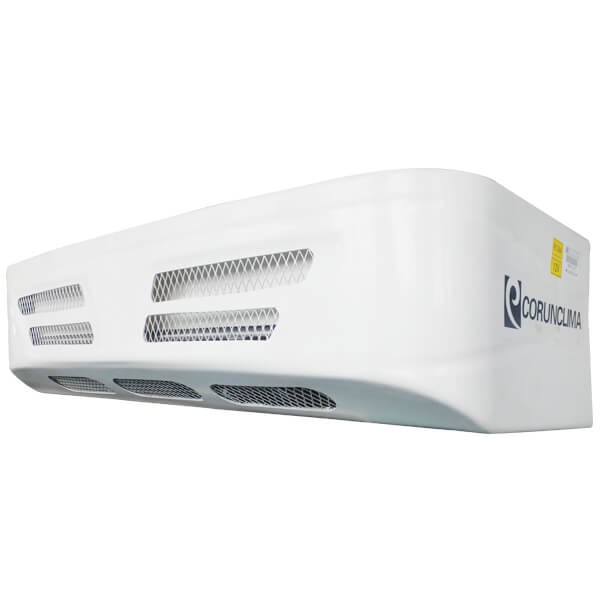

C300F is a classic model of our truck refrigeration units series.
It can be used as a freezer unit or chiller unit .
It is most suitable for small vehicles, such as Suzuki Carry, Daihatsu Gran Max,Mitsubushi L300.
Its nose-mount design and powerful cooling effect has satisfied a number of our clients.
Benefit
1. Original Top Brand parts, Sanden, QP, TM compressor, Danfoss, etc.
2.Lower current, no need to add extra alternator.
3. Smart condenser size, suitable for all height of box.
4.Durable quality, life time 10 years.
5. Hot gas defrosting system help work better.
6. It adopts environmentally friendly refrigerant R134A,
7.high and low pressure protection for cooling system, sturdy evaporator cover protect core body from damage.
Technical Data
|
Model |
C300F | |
|
Temperature |
-5℃ | |
|
Voltage |
DC12V/DC24V | |
|
Cooling Capacity |
2920w(-5℃) | |
|
Refrigerant |
R134A | |
|
Compressor |
SD5S14 | |
|
Condenser |
Fan Quantity |
1 |
|
Dimension |
925*450*260mm | |
|
Weight |
24Kg | |
|
Evaporator |
Fan Quantity |
2 |
|
Dimension |
766*520*130mm | |
|
Weight |
14Kg | |
|
Application |
+5℃ |
10-12m3 |
|
-5℃ |
6-8m3 | |
|
-20℃ |
NA | |
Controller.
Digital, Easy operation. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional
Successful Cases of truck transport refrigeration units:
Corunclima truck transport refrigeration units have already been installed in South africa,Mexico, Chile, UAE, Qatar, Thailand, Australia, etc.
