Main Features of Heavy duty truck ac system
1.Full DC electric, Environmentally friendly
2.Lower maintenance for most Key parts of Top brand, it can help you save 20%-25% on A/C maintenance costs.
3.Durable and heavy duty design. Able to handle the high ambient temperatures and robust road.
4.Compressor builtin, receiver builtin, no need to find bracket or space for them at all.
5.pre-gased ready to run
6.Suitable for any weather conditions, cooling performance and stability have been proven for years by partners in South Africa, Australia, and Canada.
Technical Data of Heavy duty truck ac system
|
Model NO. |
T20B |
|
Cooling Capacity |
2.5KW/8,500BTU |
|
Voltage |
DC12V/DC24V |
|
Current |
48A(12V)/33A(24V) |
|
Evaporator Air Flow Volume |
750 m3/H |
|
Compressor |
Totally-enclosed, DC-powered, direct connection brushless motor |
|
Controller |
Digital/Manual |
|
Installation |
All roof top mounted |
|
Bunk Heater |
Optional |
|
Applying |
Heavy- duty vehicles&machinery with 12V/24V |

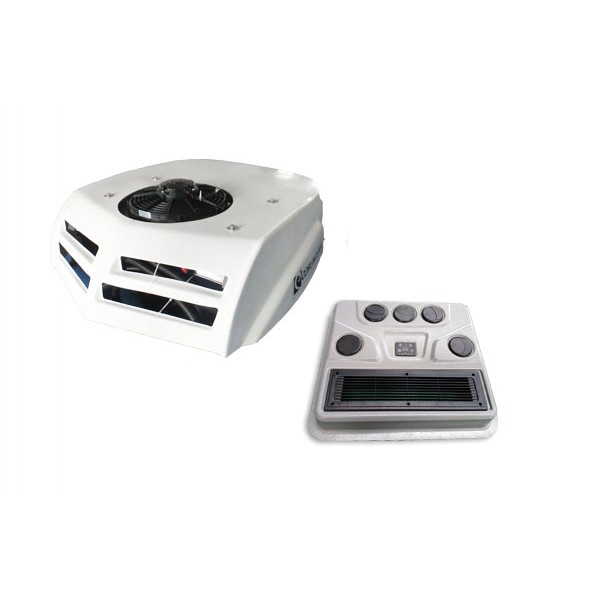

The entire air conditioner is integrated, with compressors, condensers, blowers and other accessories inside.
Controller.
Digital, Easy operation
Plug-in: 220V, 380V, (Electric Standby) is Optional

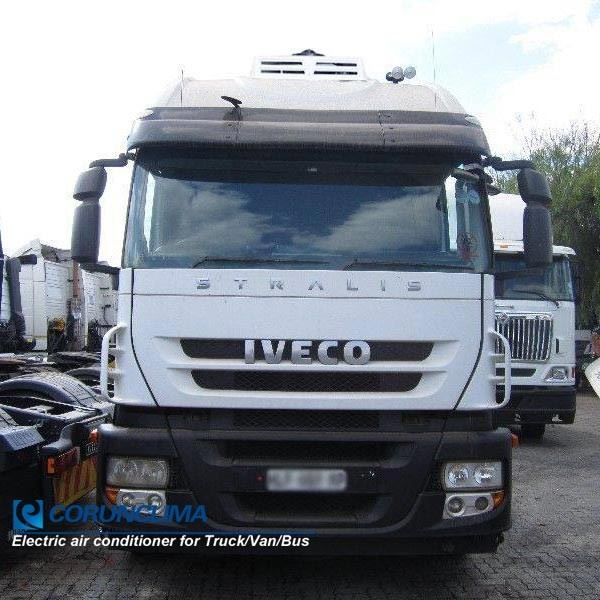

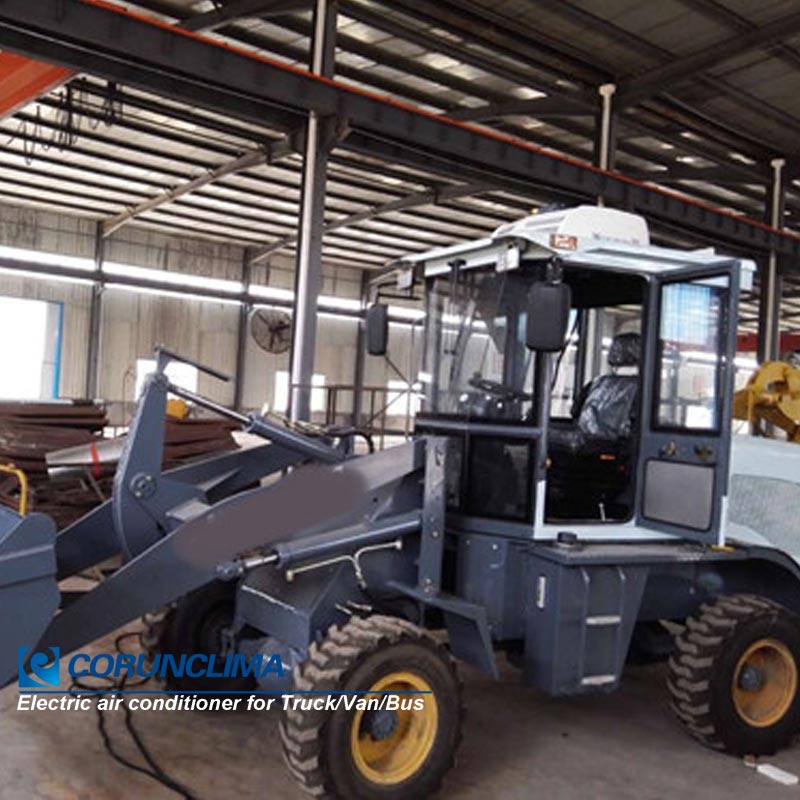

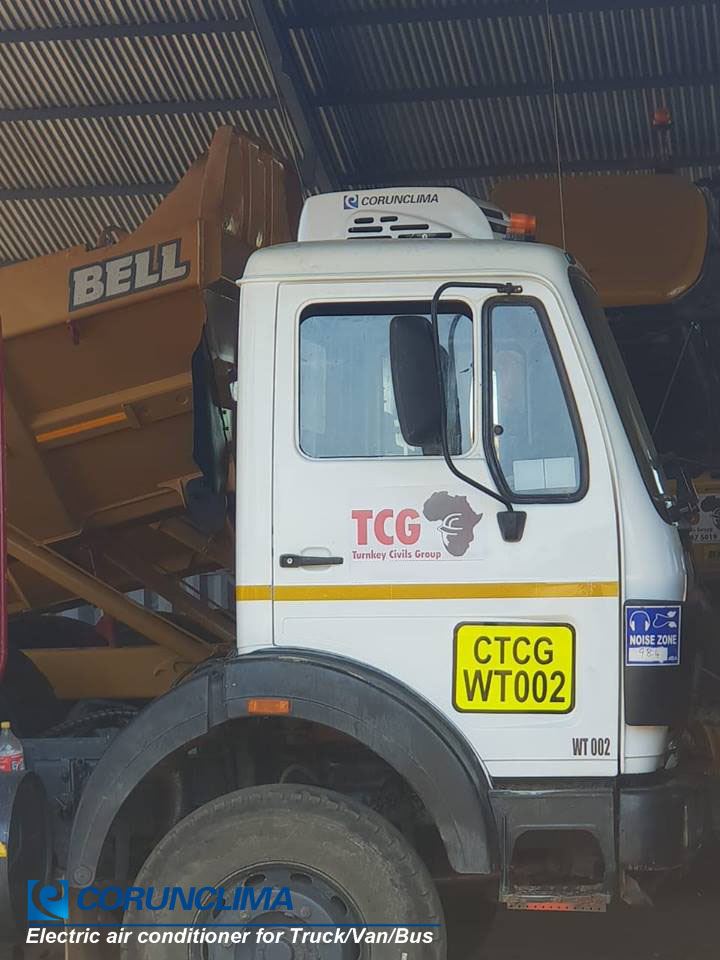

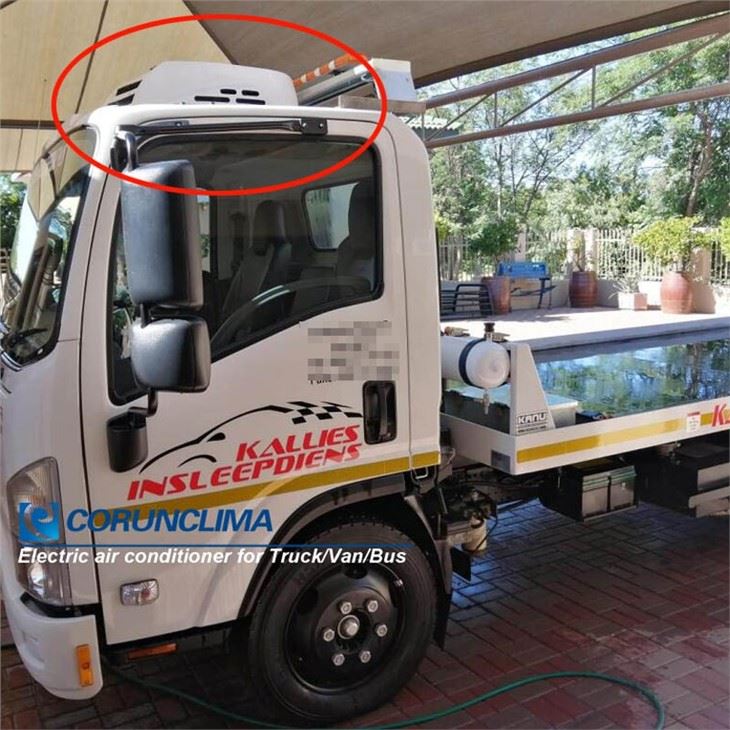

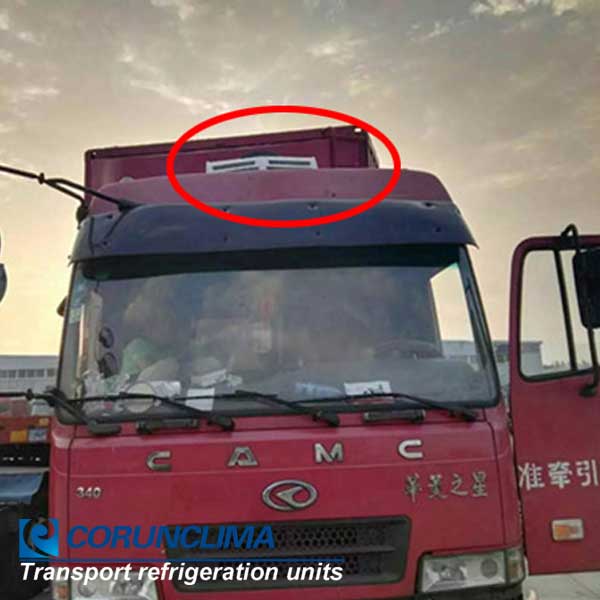

Successful Cases of Heavy duty truck ac system:
Q&A
1. Is the entire system of the air-conditioning product installed on the front of the truck?
Yes.
2. Is the product powered by batteries? If it is continuously turned on overnight, how long can it be used?
It is driven by batteries, which are commonly used batteries in automobiles. Normally, 4 batteries can run for 6-7 hours, and 6 batteries can run for 9-10 hours.
3. Is it easy to install?
Yes, Installation is very convenient. Only fix it and connect power cable to Battery/Alternators.No need to install compressor, No need connect hose, No need vacuum and no need fill gas.
4.What about delivery time?
If we have stock of the item you need, we can send goods to you within 2 working days after deposit or 100% payment into our bank account. If we don’t have stock,the time to make each product is different generally, it takes 2 to 4 weeks.
