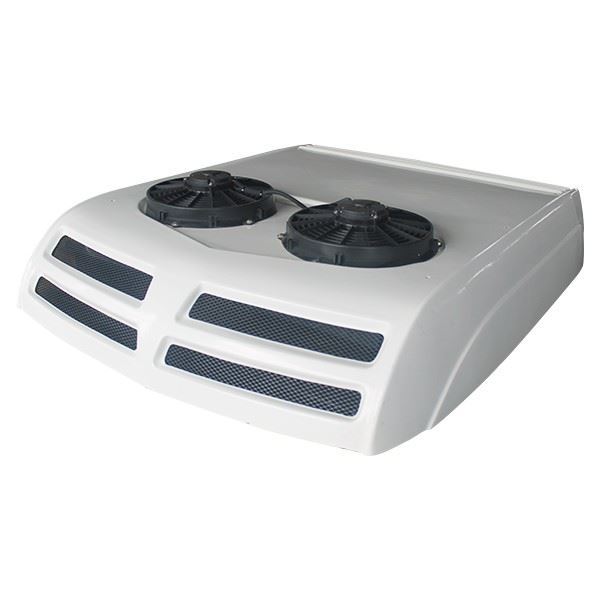

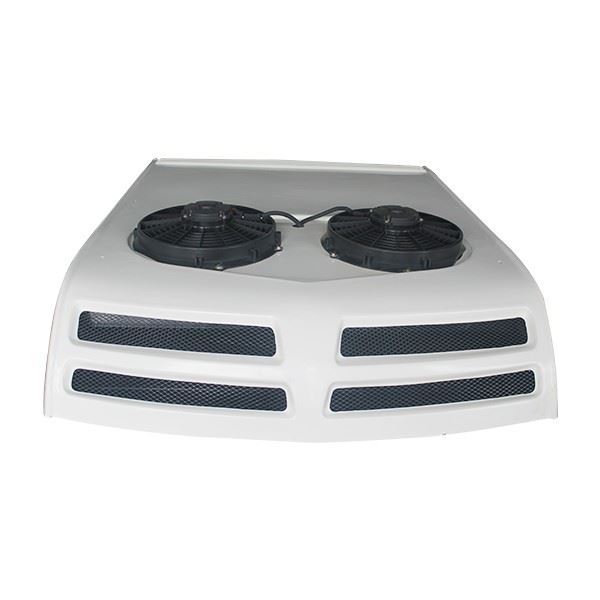

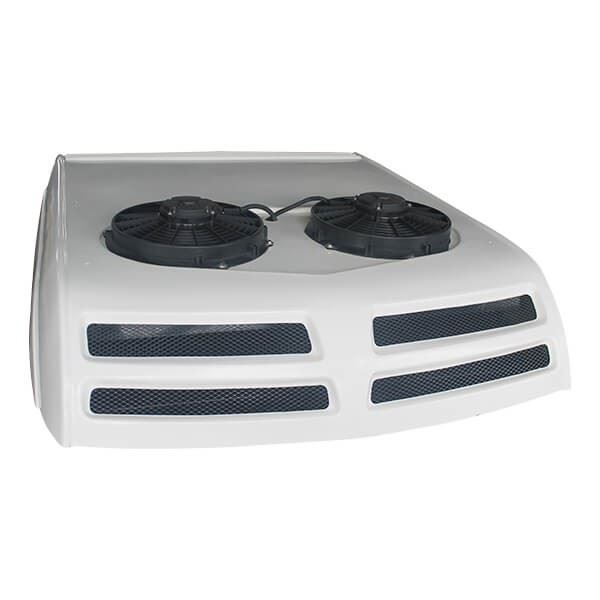

Corunclima HEV air conditioner AC100TB is powered by battery/alternator.
It is monoblock all roof mounted type bus A/C for Engine Vans, Buses, Pure Electric and Hybrid Passenger Vans.
Benefit of HEV air conditioner AC100TB
1.Connect to battery directly, save fuel.
2.Installation is much easier. Open hole, fix it, connect wiring, its enough.
3. Fast cooling. 10miutes will feeling cool..
4. Lower maintenance.
5.Durable. Used in UAE, Australia etc very hot countries since 2016.
Technical Data of HEV air conditioner AC100TB
|
Model NO. |
AC100TB | |
|
Cooling Capacity |
9.6KW/32800BTU | |
|
Voltage |
DC12V/DC24V | |
|
Current |
120A(12V)/75A(24V) | |
|
Refrigerant |
R134A | |
|
Evaporator Air Flow Volume |
1600M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
2 |
|
Dimension |
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 56Kg | |
|
Evaporator |
Fan Quantity |
2 |
|
Dimension |
NA | |
|
Weight |
NA | |
|
Applying |
4.5-6.0m Van | |
Controller of HEV air conditioner.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

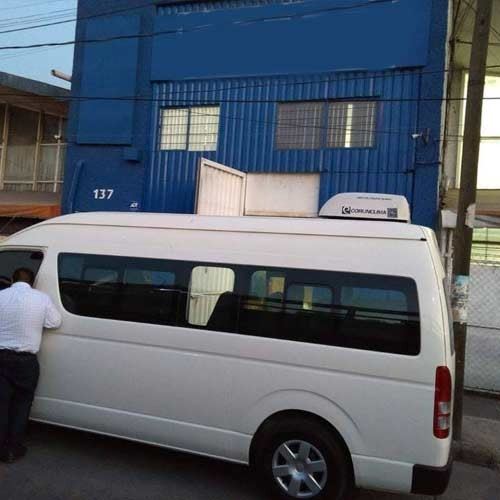

Successful Cases of Cooling Systems for electric vehicles:
Corunclima is always committed to the development of electric products. We started to design, produce and export DC Electric Battery Driven Refrigeration Units and DC Electric Aircon since 2006, we own the key technology.
Welcome to be our distributor, agent, or representative, and choose us to be your OEM or ODM.
