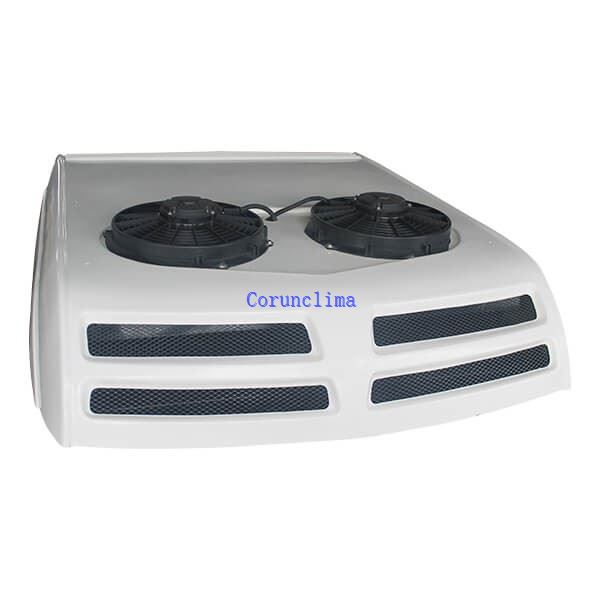

Hybrid electric vehicles air conditioner
Benefit
1. A/C still working by battery When Engine-off.
2.Save fuel for engine-off when parking
3. Easy to install. Open hole, fix it, connect wiring, it's enough
4.FYR cover, whch is tougher than plastic and has high corrosion resistance and plasticity.
5.Durable. Used in UAE, Australia etc very hot countries from 2016 years.
6.Lower maintenance.
Technical Data
|
Model NO. |
AC60TB | AC65B | AC100TB | |
|
Cooling Capacity |
6.8KW/23200BTU | 6.0KW/20500BTU | 9.6KW/32800BTU | |
|
Voltage |
DC12V/DC24V | DC12V/DC24V | DC12V/DC24V | |
|
Current |
75A(12V)/45A(24V) | 60A(12V)/42A(24V) | 120A(12V)/75A(24V) | |
|
Refrigerant |
R134A | R134A | R134A | |
|
Evaporator Air Flow Volume |
850M3 /H | 1100M3 /H | 1600M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | DC 12V/24V Electric Compressor | DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
1 |
1 | 2 |
|
Dimension |
Monoblock 1263*1040*198mm |
1050*783*190mm
|
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 48Kg | 29Kg | Monoblock 56Kg | |
|
Evaporator |
Fan Quantity |
1 |
1 | 2 |
|
Dimension |
NA | 677*298*140mm | NA | |
|
Weight |
NA | 12Kg | NA | |
|
Applying |
4.5-5.5m Van | 4.5-5.5m Van | 4.5-6.0m Van | |
Controller.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional
Successful Cases:
We have different cooling solution for different applications.
Dealer wanted. ODM/OEM are available.
If you are looking for Hybrid electric vehicles air conditioner, or want to be our dealer, please feel free to contact us. info@corunclima.com
