Corunclima Idle free apu runs on 4 or 6 deep cycle type AGM batteries, idle 8-10hours.

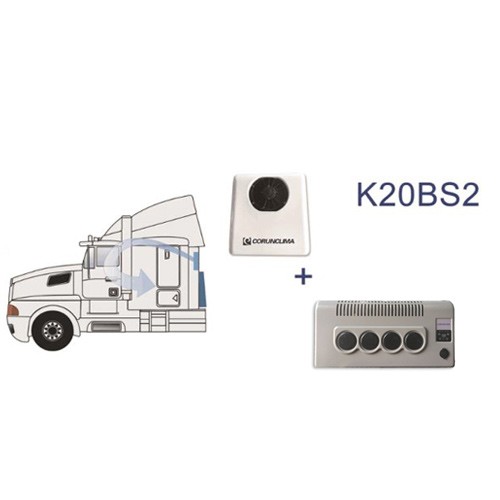

Monoblock type and split type(condenser wall mounted, evaporator inside ) are available.
Main Features
1.Environmentally friendly, Meet EPA SmartWay standard and anti-idling laws
2.A/C can work by battery while the engine turn off.
3. Easy to install, two people can finish in half an hour;
4. Save Vehicle fuel and engine power, reduce maintenance cost.
5. Saving 3000gallons diesel per year;
6. Most reliable and super quality products
Technical Data of Idle free apu
|
Model No. |
K20BS2 |
T20B |
T60B |
| Installation style |
Back-wall mounted |
Roof-top Mounted |
Roof-top Mounted |
|
Cooling Capacity |
9500Btu 2.8kw |
9500Btu 2.8kw |
19800Btu 5.8kw |
|
Voltage available |
DC12V, DC24V |
DC12V, DC24V |
DC12V, DC24V |
|
Compressor Type |
DC Electric scroll compressor. Brushless motor |
DC Electric scroll compressor. Brushless motor |
DC Electric scroll compressor. Brushless motor |
|
Working Current |
48A (12V), 35A(24V) |
48A (12V), 35A(24V) |
85A (12V), 70A(24V) |
|
Max. Current |
72A(12V), 55A(24V) |
72A(12V), 55A(24V) |
155A (12V), 115A(24V) |
|
Refrigerant Gas |
R134A |
R134A |
R134A |
|
Cooling air |
400cfb / 720m3/h |
400cfb / 720m3/h |
550cbf / 900m3/h |
|
Condenser fan |
11’ one pc |
11’ one pc |
12’ one pc |
|
Size |
Condenser: L:752mm, W: 676mm, H:182mm Evaporator: L:582mm, W: 310mm, H:138mm |
L:856mm, W: 743mm, H:180mm |
L:1263mm, W:1040mm, H:198mm |
|
Weight |
Condenser: 32KG(70.5LBS) Evaporator: 8.5KG(18.7LBS) |
39Kg(86LBS) |
55Kg(121LBS) |
|
Air vent Qty |
4pcs |
5pcs |
8pcs |
Controller.
Digital, Easy operation
Plug-in: 220V, 380V, (Electric Standby) is Optional

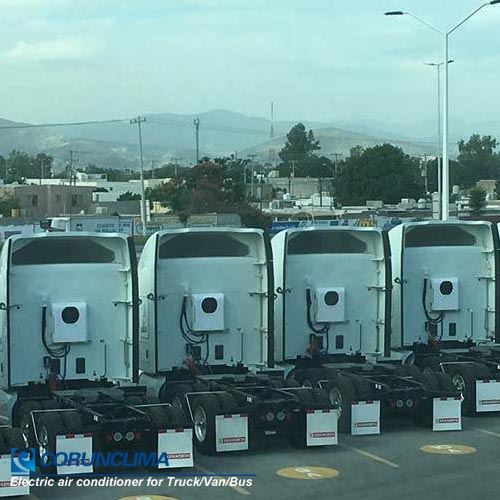

Successful Cases
