Payloaders air conditioner is Monoblock type, driven by Battery.
Main Features
1. Run directly on DC electric batteries.
2. No need install mechanical compressor feed by engine.
3. Release 10% Engine power when driving compare with Engine driven A/C;
4. Most reliable and super quality products.
5. Connect to battery directly.
Technical Data
|
Model NO. |
T20B |
|
Cooling Capacity |
2.2-2.5KW/8,500BTU |
|
Voltage |
DC12V/DC24V |
|
Current |
48A(12V)/33A(24V) |
|
Evaporator Air Flow Volume |
750M3 /H |
|
Compressor |
Totally-enclosed, DC-powered, direct connection brushless motor |
|
Controller |
Digital/Manual |
|
Installation |
All roof top mounted |
|
Bunk Heater |
Optional |
|
Applying |
Heavy- duty vehicles&machinery with 12V/24V |
Controller.
Digital, Easy operation
Plug-in: 220V, 380V, (Electric Standby) is Optional

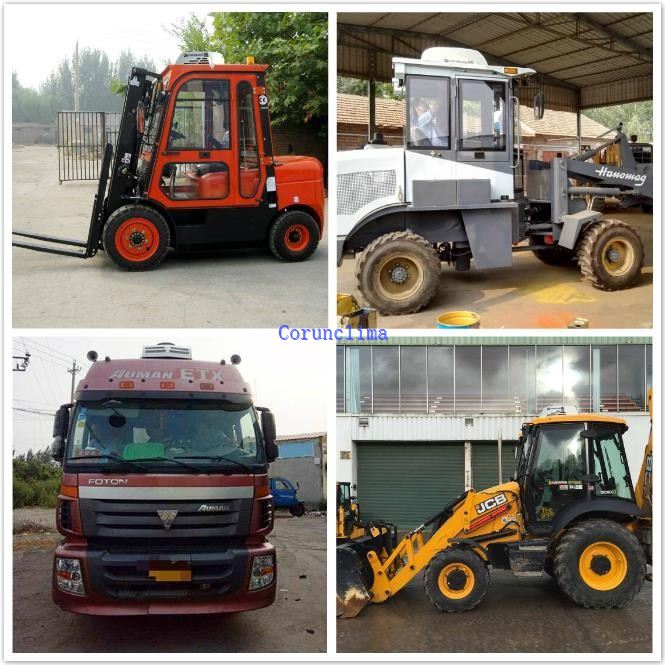

Successful Cases:
Full Electric is Future, We are Already Here. From 2006 years, we start design, manufacture, and export the Full Electric air conditioners. We already own the key technology. Contact Corunclima for more info.
Corunclima understands well about customers' requirement, and can offer a suitable air conditioner system for you, contact us for more info.
Never Losing the Opportunity, Start Now.
