Corunclima DC electrical School bus air conditioners
Benefit
1. Connect to battery directly.
2. No need to install mechanical compressor, installation is very easy.
3. Fast cool. You will feel cool in 10miutes.
4.100% presser test and electric test
5.Reasonable layout of pipe, it's convenient for testing
6.Suitable for high temperature and high humidity areas
Technical Data
|
Model NO. |
AC60TB | AC65B | AC100TB | |
|
Cooling Capacity |
6.8KW/23200BTU | 6.0KW/20500BTU | 9.6KW/32800BTU | |
|
Voltage |
DC12V/DC24V | DC12V/DC24V | DC12V/DC24V | |
|
Current |
75A(12V)/45A(24V) | 60A(12V)/42A(24V) | 120A(12V)/75A(24V) | |
|
Refrigerant |
R134A | R134A | R134A | |
|
Evaporator Air Flow Volume |
850M3 /H | 1100M3 /H | 1600M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | DC 12V/24V Electric Compressor | DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
1 |
1 | 2 |
|
Dimension |
Monoblock 1263*1040*198mm |
1050*783*190mm
|
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 48Kg | 29Kg | Monoblock 56Kg | |
|
Evaporator |
Fan Quantity |
1 |
1 | 2 |
|
Dimension |
NA | 677*298*140mm | NA | |
|
Weight |
NA | 12Kg | NA | |
|
Applying |
4.5-5.5m Van | 4.5-5.5m Van | 4.5-6.0m Van | |
Controller.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

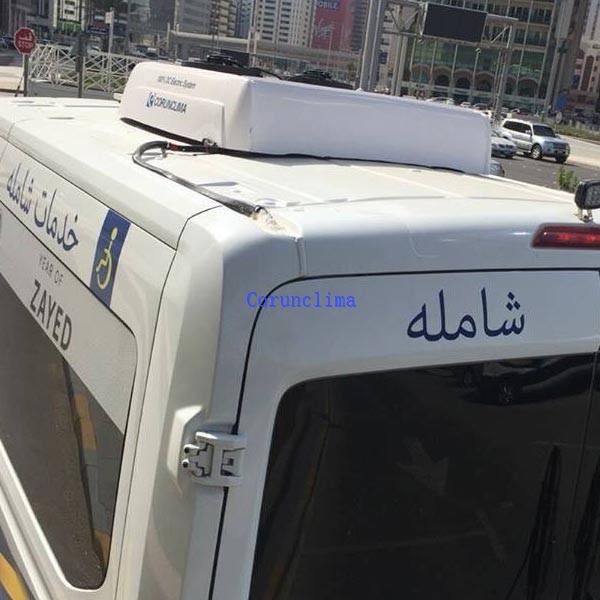

Successful Cases:
Corunclima has been working on DC Electric refrigeration units and DC Electric A/C since 2006.
We understands better about customers' requirement, and can offer a suitable air conditioner system for you.
Welcome to contact us to get more applications of DC electrical school bus air conditioners.
