Semi Truck Ac Units

Model: T20B
Full DC Electrical Air conditioner for Heavy Duty Vehicles
Run directly on : DC12V/DC24V/DC48V/DC72V/DC400V/DC720V

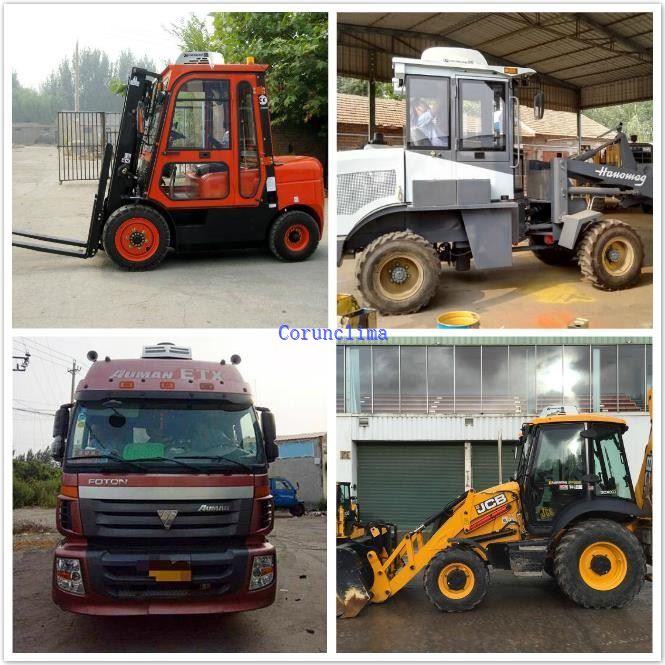

Apply for: Electric Vehicles, Earthmoving machinery, Excavators, Tractors, Loaders, dumper trucks, tram cabs, Locomotive cabs

Send Inquiry

Description

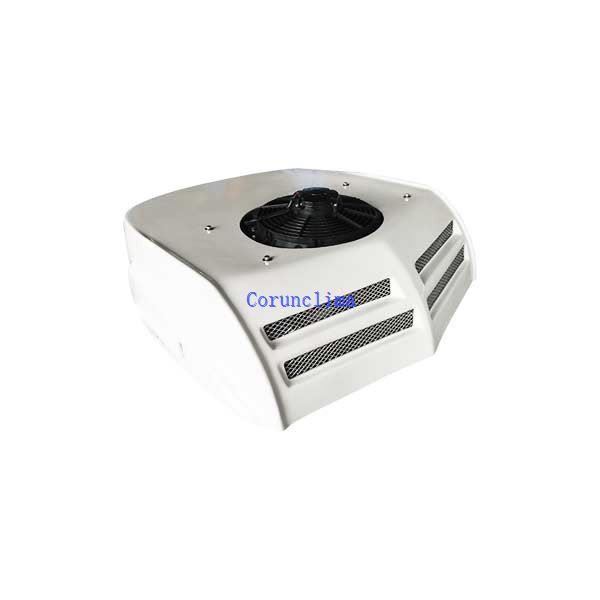

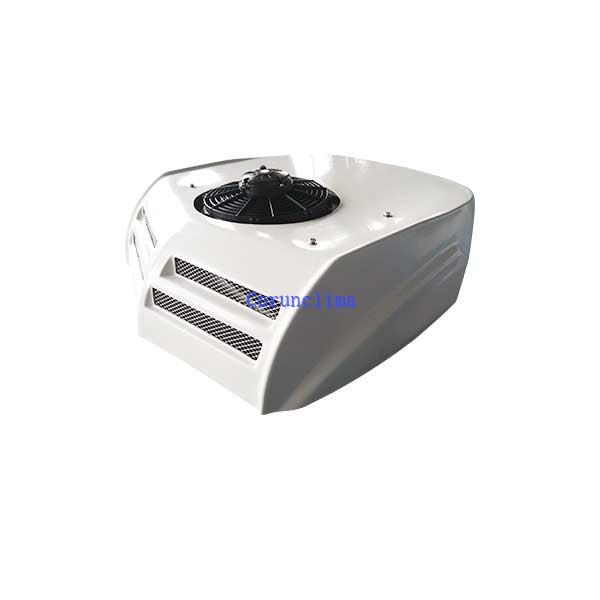

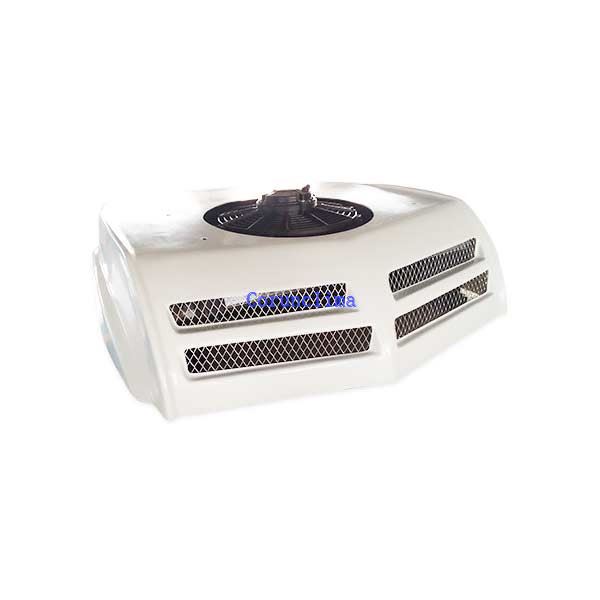

Rooftop air conditioner for trucks T20b is driven by battery. It does not require a mechanical compressor driven by engine, but relies on an on-board battery to drive an electric compressor.

It can work when engine-on, can still work when engine-off

No belts, no hose, no belt compressor

Plug and play installation

Able to operate at ambient temp at +40 degree

Able to handle heavy vibration on construction sites

DC Compressors have been tested at variable conditions, quality and stability have been proven by our major partners in Australia, Canada, Mexico, South Africa etc.

Technical Data

Model NO.	T20B
Cooling Capacity	2.2-2.5KW/8,500BTU
Voltage	DC12V/DC24V
Current	48A(12V)/33A(24V)
Evaporator Air Flow Volume	750M3 /H
Compressor	Totally-enclosed, DC-powered, direct connection brushless motor
Controller	Digital/Manual
Installation	All roof top mounted
Bunk Heater	Optional
Applying	Heavy- duty vehicles&machinery with 12V/24V
