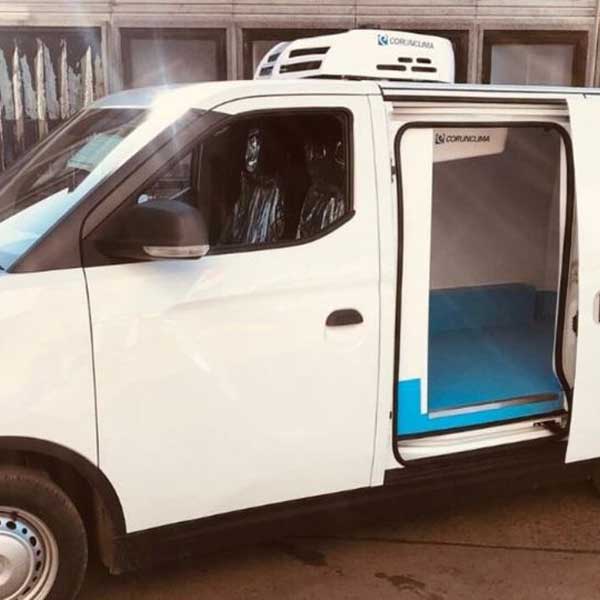

Small Electric Refrigeration Unit C150TB offers cooling solution to the last stop in urban area.
Perfectly compatible with EV Vans, Electric Vans, Hybrid Vans, Diesel Vans or Gasoline Vans. .
Whatever E-Sprinter, E-deliver3, E-deliver9, etc electric Vans, we, Corunclima, already have the full-electric temperature-controlled system powered by DC12V, DC24V, DC48V.
No need modification the original battery.
Benefit
1. COST-SAVING
40% decrease in operational cost of TRU with 12months pay-back time
2. EASY-INSTALL
No troublesome works of compressor and brackets; Only need 2-3 hours.
3. SUPER-GREEN
Technical Data
|
Model |
V150TB |
|
|
Driven |
100% DC12V Powered by battery |
|
|
Temperature |
-20℃ |
|
|
Cooling Capacity |
760W(-20℃) |
|
|
Refrigerant |
R404A |
|
|
Compressor |
DC vortex compressor |
|
|

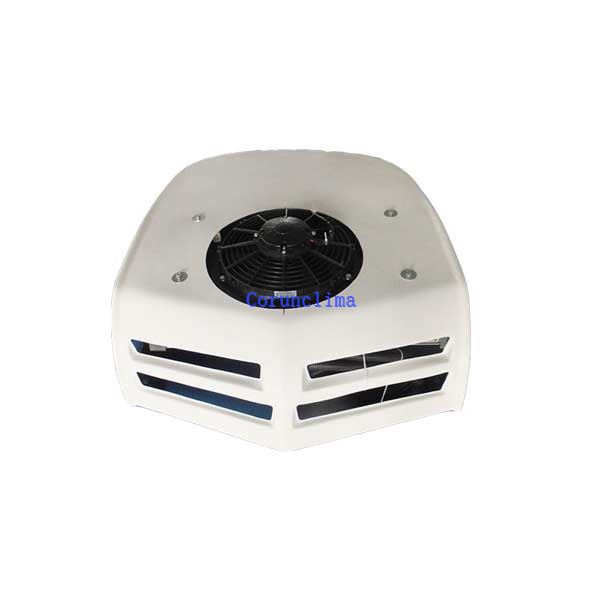

Condenser |
Fan Quantity |
1 |
|
Dimension |
856*743*165 |
|
|
Weight |
29Kg |
|
|

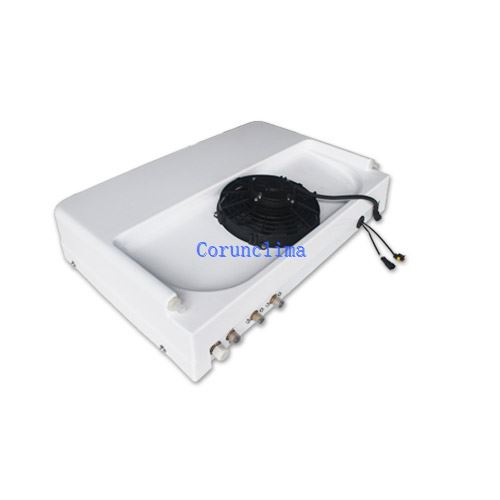

Evaporator |
Fan Quantity |
1 |
|
Dimension |
766*520*130 |
|
|
Weight |
12Kg |
|
| Electric Current | Application | |
| Application | +0°C | 7-8 m3 |
| -5°C | 6-7 m3 | |
| -10°C | 4-5 m3 | |
| -20°C | 2.5—3.5 m3 | |
Controller.
Digital, Easy operation. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional
Successful Cases:
Full Electric is Future, We are Already Here.
3000 sets are installed last two years, and still increasing fast.
Never Losing the Future Opportunity, Start Now.
Inquiry to info@corunclima.com
