Corunclima full electric Sprinter 12v air conditioner can still cool the passengers when engine is off, save fuel, make passengers comfortable, suitable for Engine Vans, Buses, Pure Electric and Hybrid Passenger Vans.
Benefit
1.Pure DC Electrical, DC12V, DC24V, DC48V, DC72V, DC110V, DC400V are available.
2.No need to install mechanic compressor or bracket set, installation is easier and cost-saving.
3.Save fuel, environmentally sustainable and cost-effective option.
4.Successful case in very hot countries such as UAE, Australia.
5.Reducing noise and emissions
6.Roof mounted, light weight, fit for vehicle of different width.

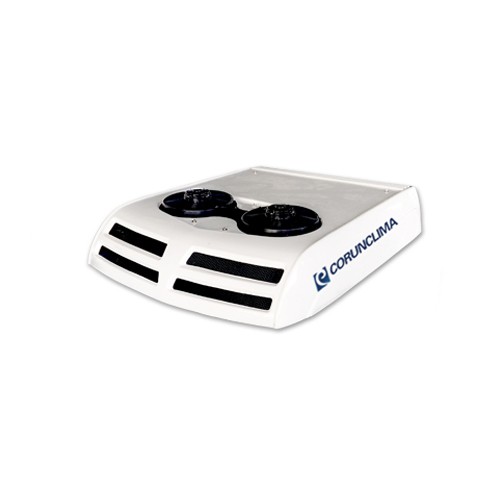

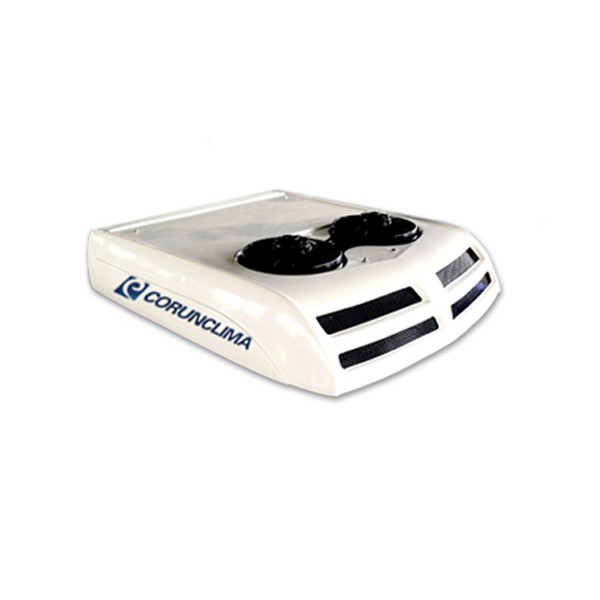

Technical Data of Sprinter 12v air conditioner
Model NO. |
AC100TB | |
Cooling Capacity |
9.6KW/32800BTU | |
Voltage |
DC12V/DC24V | |
Current |
120A(12V)/75A(24V) | |
Refrigerant |
R134A | |
Evaporator Air Flow Volume |
1600M3 /H | |
Compressor |
DC 12V/24V Electric Compressor | |
Condenser |
Fan Quantity |
2 |
Dimension |
Monoblock 1263*1040*198mm | |
Weight |
Monoblock 56Kg | |
Evaporator |
Fan Quantity |
2 |
Dimension |
NA | |
Weight |
NA | |
Applying |
4.5-6.0m Van |
Controller of Sprinter 12v air conditioner.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

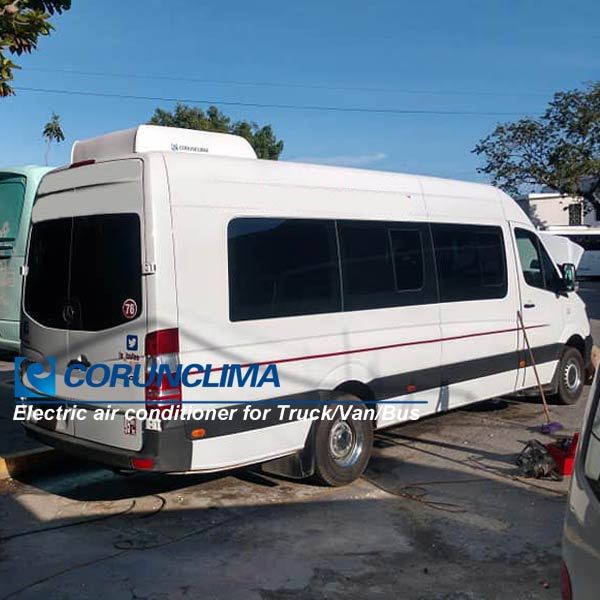

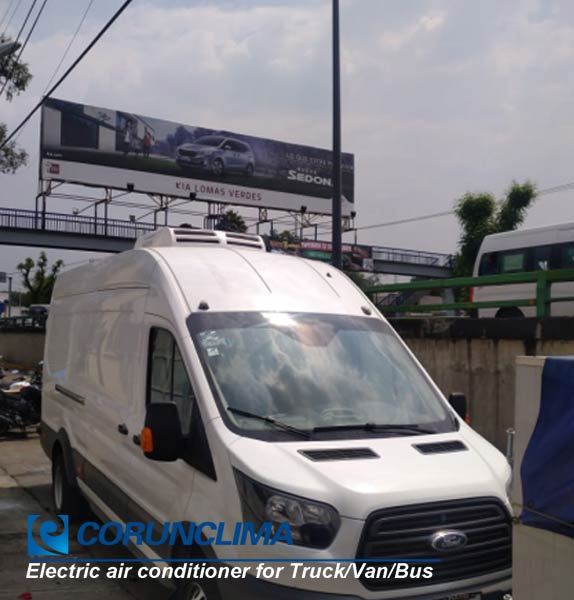

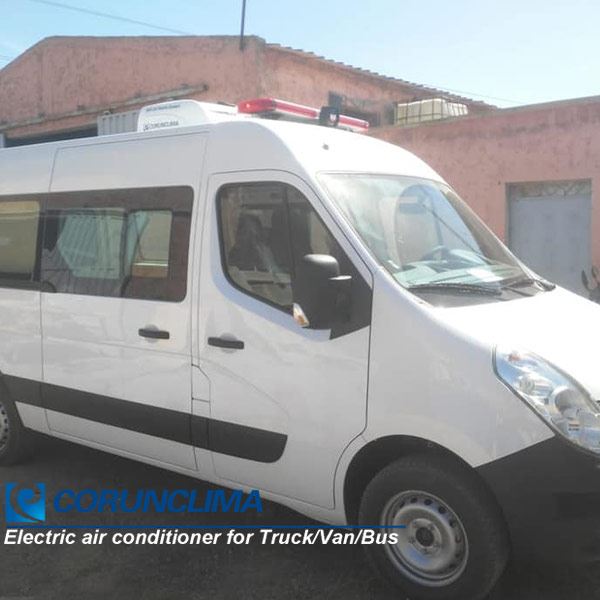

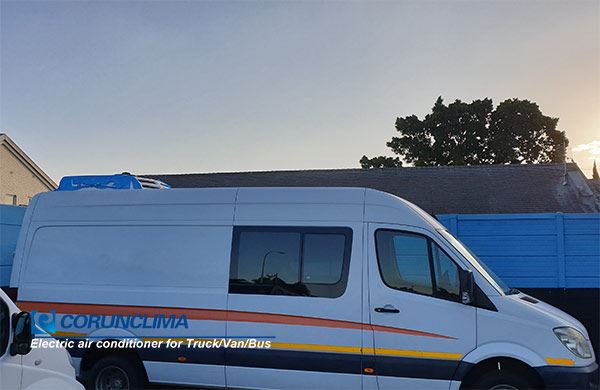

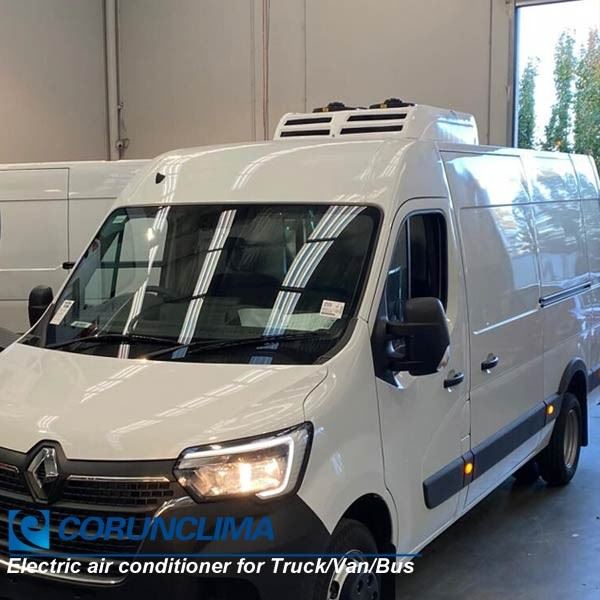

More Successful Cases of Corunclima Sprinter 12v air conditioner AC100TB:
Full Electric is Future, We are Already Here.
Corunclima electric buses have all-electric air conditioners installed in Middle Eastern countries (the ambient temperature exceeds 50C) since 2015, and the quantity is still growing rapidly.
Never Losing the Future Opportunity, Start Now.
Inquiry to info@corunclima.com
