Corunclima Truck Reefer V300F, suitable for all kinds small trucks, pickup, bakkie, UTE vehicles, etc. It can be quickly cooled to +5 to -20 degrees to meet different temperature requirements.
Benefit
1.Lower current, no need to add extra alternator.
2. Smart condenser size, suitable for all height of box.
3.Durable quality, life time 10 years.
4. Digital control system, easy to operate.
5. The housing is sturdy and structure is light weight, easy to install.
6.Compact structure, long service life, high cooling efficiency
Technical Data
|
Model |
V300F | |
|
Temperature |
-20℃ | |
|
Voltage |
DC12V/DC24V | |
|
Cooling Capacity |
1610w(-20℃) | |
|
Refrigerant |
R404A | |
|
Compressor |
SD5S14 | |
|
Condenser |
Fan Quantity |
1 |
|
Dimension |
925*450*260mm | |
|
Weight |
28Kg | |
|
Evaporator |
Fan Quantity |
2 |
|
Dimension |
766*520*130mm | |
|
Weight |
16Kg | |
|
Application |
+5℃ |
12m3 |
|
-5℃ |
8-10m3 | |
|
-20℃ |
6-7m3 | |
Controller. Digital, Easy operation. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

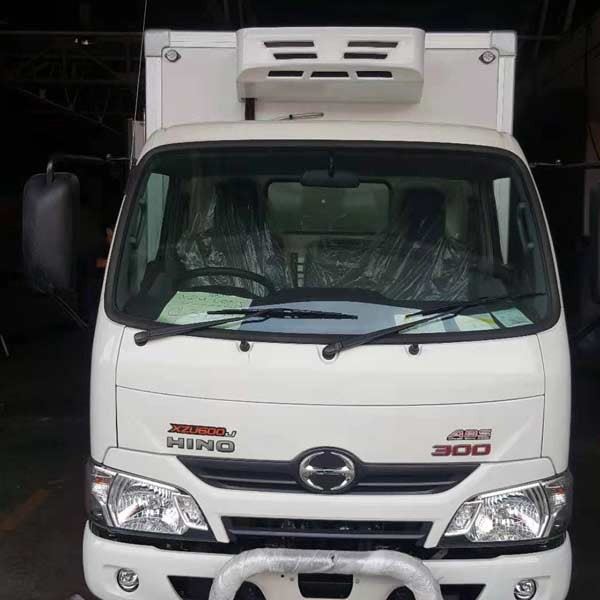

Successful Cases of Truck reefer V300F:
Corunclima truck transport refrigeration units have already been installed in South africa,Mexico, Chile, UAE, Qatar, Thailand, Australia, etc.
Corunclima Truck reefer have already been installed in Mexico, Chile, Uruguay, UAE, Australia, South Africa, Malaysia,etc.
Contact us to get more success cases. info@corunclima.com
