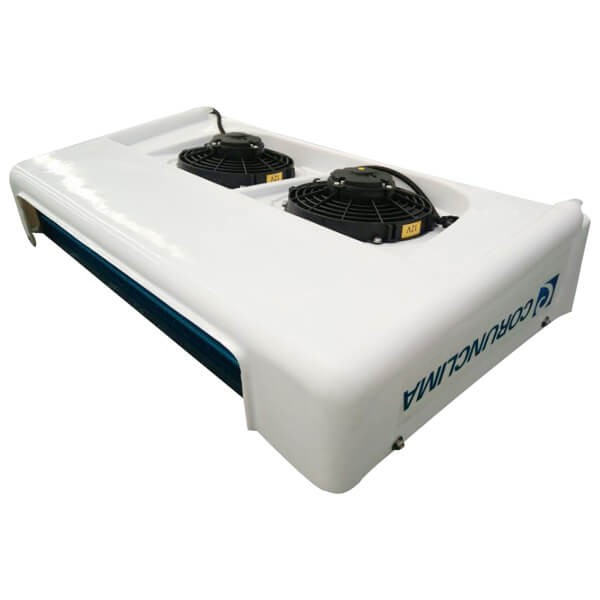

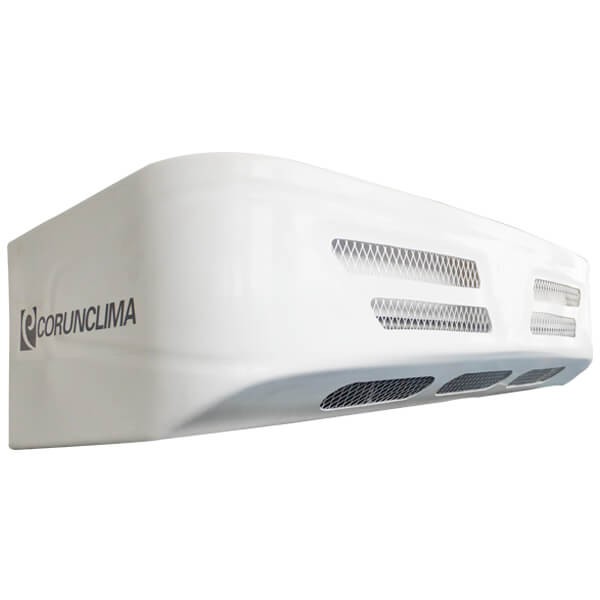

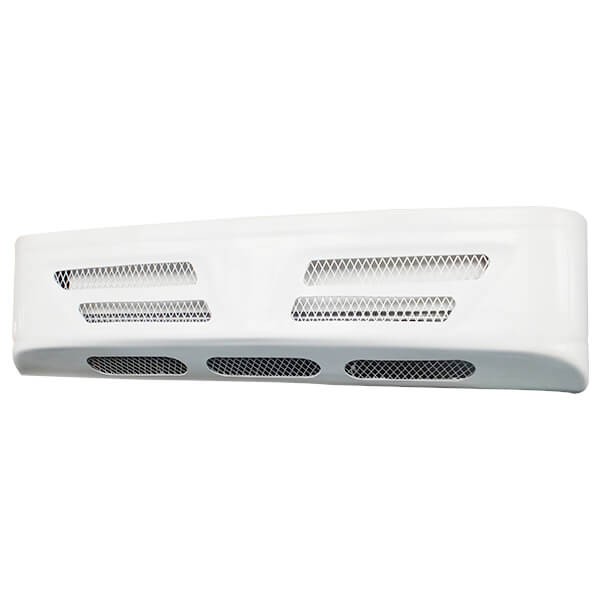

Corunclima Truck refrigerator V300F is driven by truck engine. It is desigen for minitruck, pickup, Bakkie, UTE vehicles from 6-12m3. It can be quickly cooled to +5 to -20 degrees to meet different temperature requirements.
Benefit
1.Separate design make it easy to install.
2.Durable quality, life time 10 years.
3. Digital control system makes it easy to operate.
4. friendly refrigerant R404A
5.Hot gas defrosting system.
6. Add CPR valve to protect compressors.
Technical Data
|
Model |
V300F | |
|
Temperature |
-20℃ | |
|
Voltage |
DC12V/DC24V | |
|
Cooling Capacity |
1610w(-20℃) | |
|
Refrigerant |
R404A | |
|
Compressor |
SD5S14 | |
|
Condenser |
Fan Quantity |
1 |
|
Dimension |
925*450*260mm | |
|
Weight |
28Kg | |
|
Evaporator |
Fan Quantity |
2 |
|
Dimension |
766*520*130mm | |
|
Weight |
16Kg | |
|
Application |
+5℃ |
12m3 |
|
-5℃ |
8-10m3 | |
|
-20℃ |
6-7m3 | |
Controller. Digital, Easy operation. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

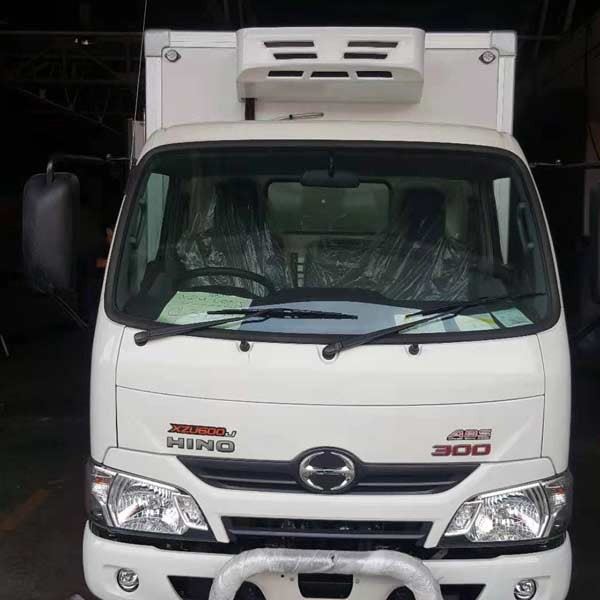

Successful Cases
We have over 20 years history and are TOP 1 export manufacturer among all Chinese Truck refrigerator Suppliers. We not only provide high quality products, but also provide Professional technical support, Timely after-sale service,big project developing support,Key client developing support and so on.
Corunclima Truck refrigerator have already been installed in Mexico, Chile, UAE, Australia, South Africa, Malaysia, Uruguay, etc. Contact us to get more success cases. info@corunclima.com
