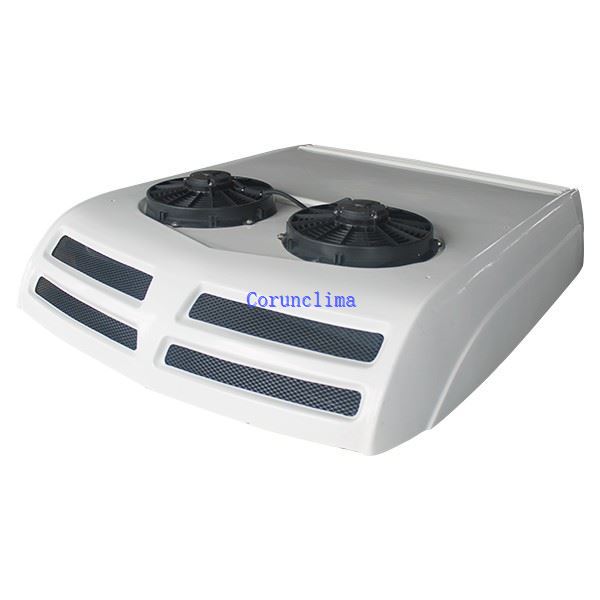

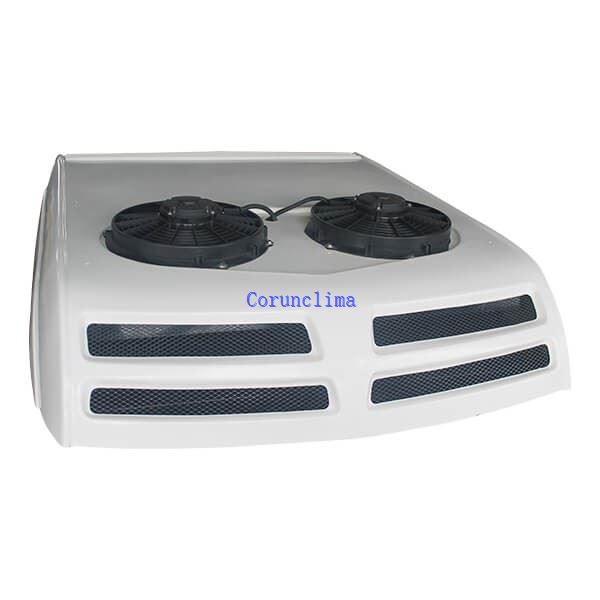

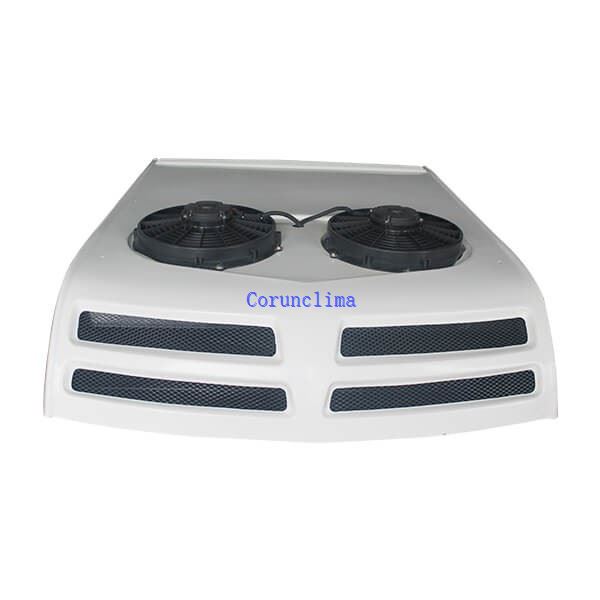

Corunclima Zero emission air conditioner is 100% DC Electric Battery Driven A/C.
Application for pure electric vehicles, or diesel engine vehicles.
Benefit
1. Pure DC Electrical, DC12V, DC24V, DC48V, DC72V, DC110V, DC400V are available.
2. No need install mechanical compressor feed by engine
3. Easy installation, two workers two hours is ok
4. Save fuel for engine-off when load/unload goods
5.100% presser test and electric test
6.Whole cost (A/C cost+installation cost+managing cost)=Conventional A/C Cost*30%-50%
Technical Data of Zero emission air conditioner AC100TB
|
Model NO. |
AC100TB | |
|
Cooling Capacity |
9.6KW/32800BTU | |
|
Voltage |
DC12V/DC24V | |
|
Current |
120A(12V)/75A(24V) | |
|
Refrigerant |
R134A | |
|
Evaporator Air Flow Volume |
1600M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
2 |
|
Dimension |
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 56Kg | |
|
Evaporator |
Fan Quantity |
2 |
|
Dimension |
NA | |
|
Weight |
NA | |
|
Applying |
4.5-6.0m Van | |
Controller.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

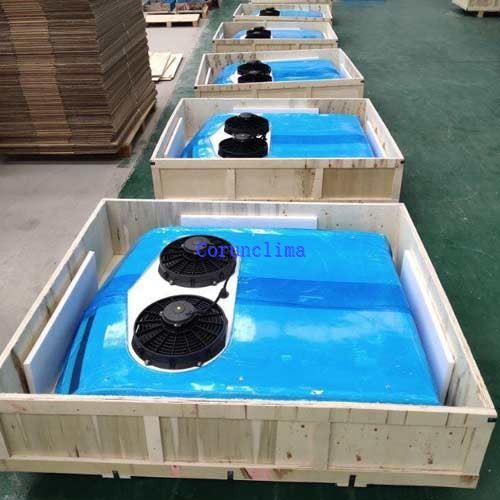

Successful Cases of Corunclima Zero emission air conditioner AC100TB:
Full Electric is Future, We are Already Here.
Never Losing the Future Opportunity, Start Now.
Inquiry to info@corunclima.com
