Description

Many years of experience in the import and export of HEV air conditioner, roof mounted air conditioner for truck, DC Powered Electric Refrigeration Units has laid the foundation for our understanding of domestic and foreign product standards and quality. Our company is in line with the business philosophy of 'consumers, businesses, employees, enterprises are all one family'. In the aspect of personnel training, we are constantly developing and innovating, and gradually establishing a scientific human resource management system. We combine the opinions of customers and the needs of the company for products, and constantly improve the production process, and strive to make customers 100% satisfied.

The Corunclima All DC electric ambulance van air conditioner, can directly run on DC electric batteries, no need installing compressor or engine, which can greatly save fuel and environment pollution, reduce engine wear and engine power loss during drive.

With large cooling capacity 6.5kw, Corunclima cooling solution of AC65B would be perfectly compatible with these vehicles like ambulance vans, minivans, passenger vans and etc.

Also different installations would meet your flexible needs. Split Mounted Ambulance van Air Conditioner AC65B is split system with condenser roof-mounted. Less occupied space keeps original car body entirety and lower energy consumption maintains the vehicle endurance.


Benefit

1. Battery Driven Full DC12V Electric Air Conditioner for Ambulance Van

2. A/C still working by battery When Engine-off.

3. No need installing compressor on Engine

4. Save fuel for engine-off when parking

5. We Insist AAA Quality Class Component Parts, imported Danfoss dry bottle, Danfoss expension valve, Goodyear hose.

6. FYR cover, whch is tougher than plastic and has high corrosion resistance and plasticity

7. Customized 12V and 24V compressor with brushless motor&3 different speeds to meet different applications, have been proved in market for 8 years


Technical Data  of Ambulance Van Air Conditioner AC65B


Model NO.

AC65B

Cooling Capacity

6.0KW/20500BTU

Voltage

DC12V/DC24V

Current

60A(12V)/42A(24V)

Refrigerant

R134A

Evaporator Air Flow Volume

1100M3 /H

Compressor

DC 12V/24V Electric Compressor

Condenser

Fan Quantity

1

Dimension1050*783*190mm
Weight29Kg

Evaporator

Fan Quantity

1

Dimension677*298*140mm
Weight12Kg

Applying

4.5-5.5m Van

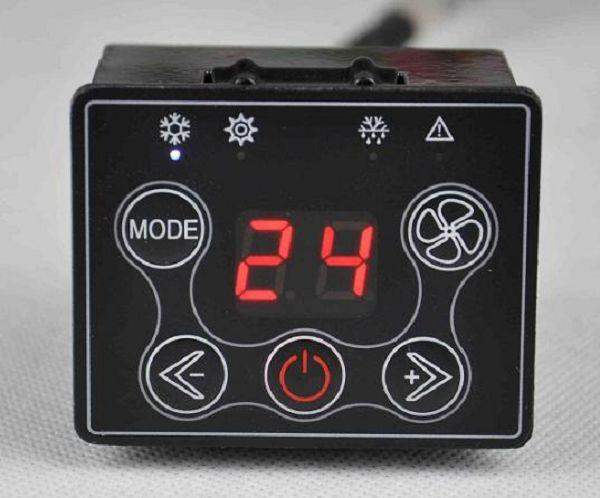

Controller.

controller of Ambulance Van Air Conditioner

Digital, Easy operation, Put on dashboard

Plug-in:  220V, 380V, (Electric Standby) is Optional

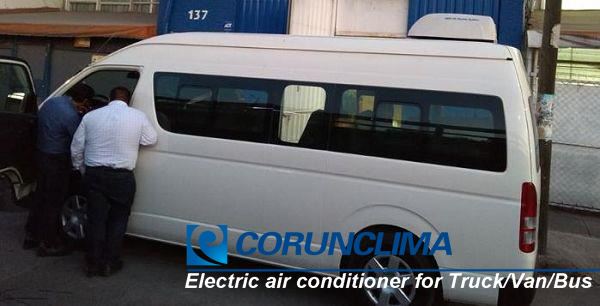

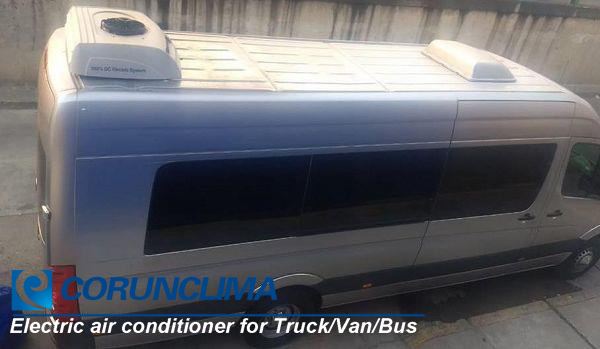

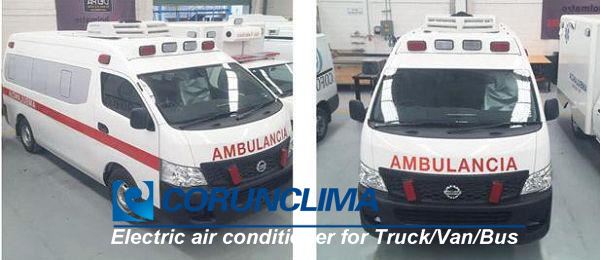

Successful Cases:

Ambulance Van Air Conditioner

Ambulance Van Air Conditioner

Ambulance Van Air Conditioner


Already installed in America countries from 2016 years and still increasing fast.
