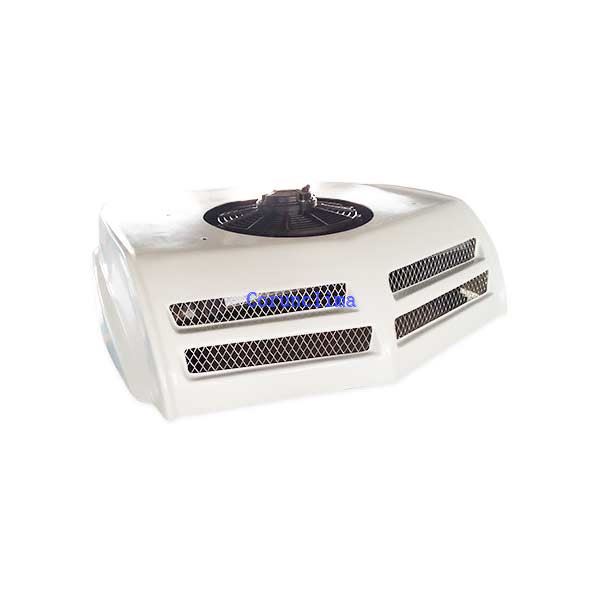

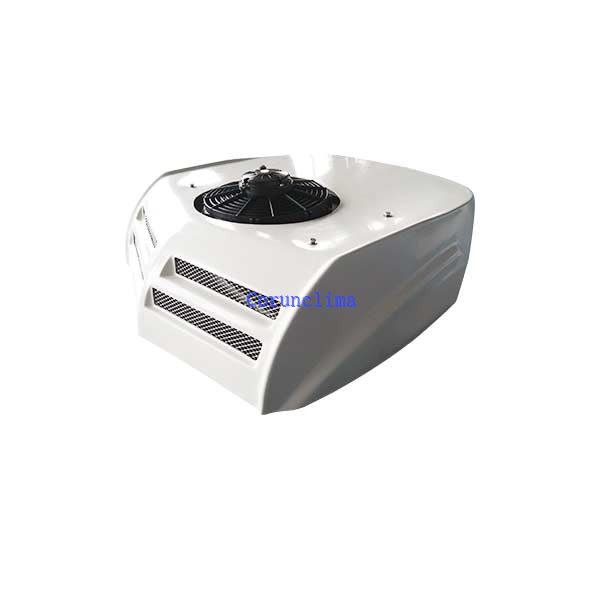

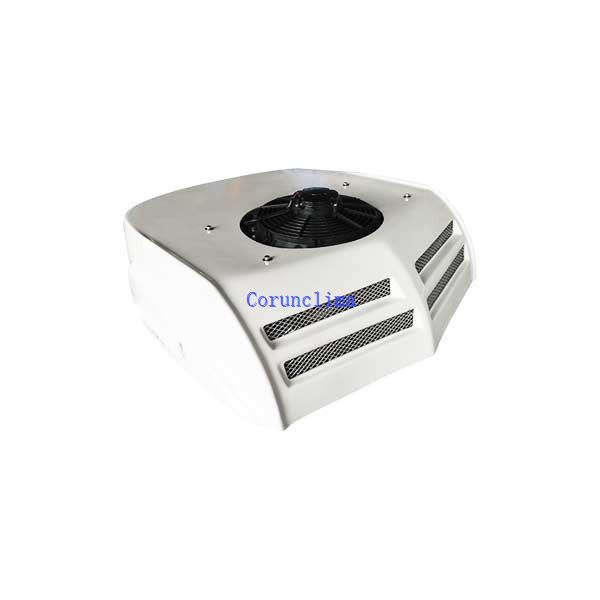

Battery driven air conditioner for road machinery is designed to handle the high ambient temperatures and robust construction industry that the tropic climate can put out, like South-Africa, Mid-east, West Australia, Chile, Russia, etc.
It is suitable for all heavy-duty applications such as earthmoving road construction equipment, off-road vehicles, agriculture, all-terrains, off-road utility vehicles etc.
Main Features
1. Fully DC12V or DC24V electric powered for whole air conditioning system.
2. Long life ( 8 years) and heavy duty-design.
3. Release 10% Engine power when driving compare with Engine driven A/C;
4. Easy installation. Refrigerant gas R134 pre-filled in factory, only cut hole, fix it, connect hose and wiring. It's finished.
5. More cooling capacity and more air flow. Cooling capacity up to 9500Btu and 19800Btu. Cooling air flow up to 400cbf and 550cbf..
Technical Data
|
Model NO. |
T20B |
|
Cooling Capacity |
2.2-2.5KW/8,500BTU |
|
Voltage |
DC12V/DC24V |
|
Current |
48A(12V)/33A(24V) |
|
Evaporator Air Flow Volume |
750M3 /H |
|
Compressor |
Totally-enclosed, DC-powered, direct connection brushless motor |
|
Controller |
Digital/Manual |
|
Installation |
All roof top mounted |
|
Bunk Heater |
Optional |
|
Applying |
Heavy- duty vehicles&machinery with 12V/24V |
Controller.
Digital, Easy operation
Plug-in: 220V, 380V, (Electric Standby) is Optional

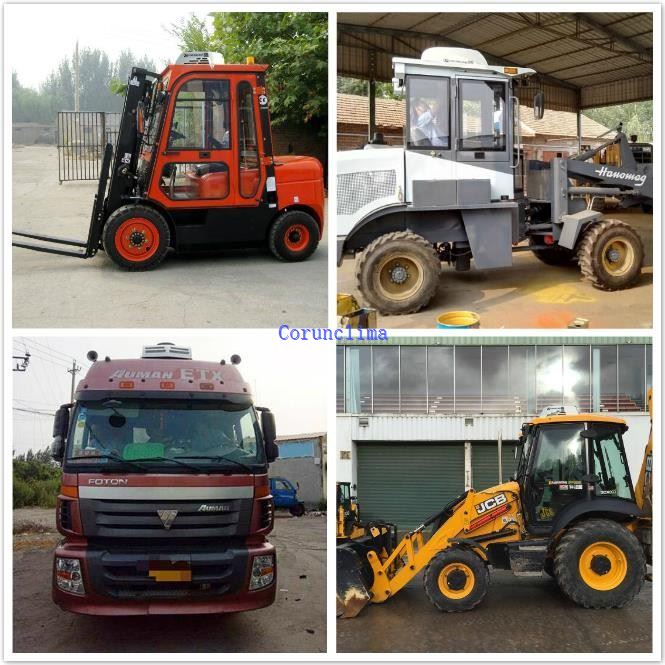

Successful Cases:
