Main Features of Air conditioning system for agriculture vehicle
Monoblock, save space. No need to install mechanical compressor and bracket
Easy to install. Ready-to-fit kits design.
Save money. Low budget
Durable and heavy duty design. Up to 10 years.
Technical Data of Air conditioning system for agriculture vehicle
|
Model NO. |
T20B |
|
Cooling Capacity |
2.5KW/8,500BTU |
|
Voltage |
DC12V/DC24V |
|
Current |
48A(12V)/33A(24V) |
|
Evaporator Air Flow Volume |
750M³ /H |
|
Compressor |
Totally-enclosed, DC-powered, direct connection brushless motor |
|
Controller |
Digital/Manual |
|
Installation |
All roof top mounted |
|
Bunk Heater |
Optional |
|
Applying |
Heavy- duty vehicles&machinery with 12V/24V |

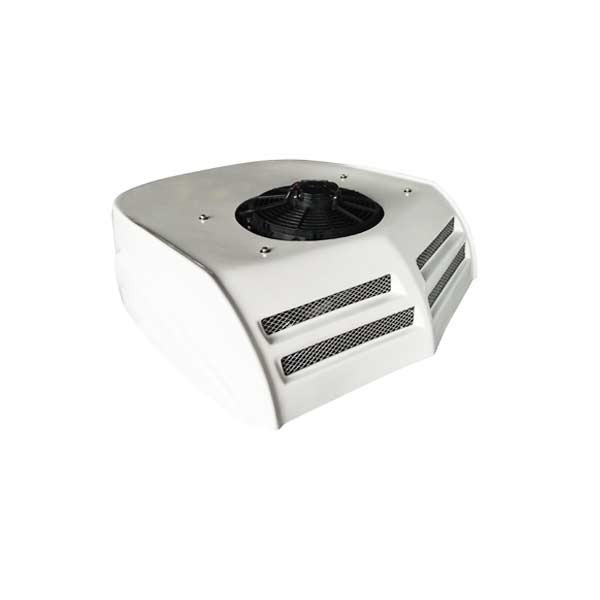

The entire air conditioner is integrated, with compressors, condensers, blowers and other accessories inside.
Controller.
Digital, Easy operation
Plug-in: 220V, 380V, (Electric Standby) is Optional

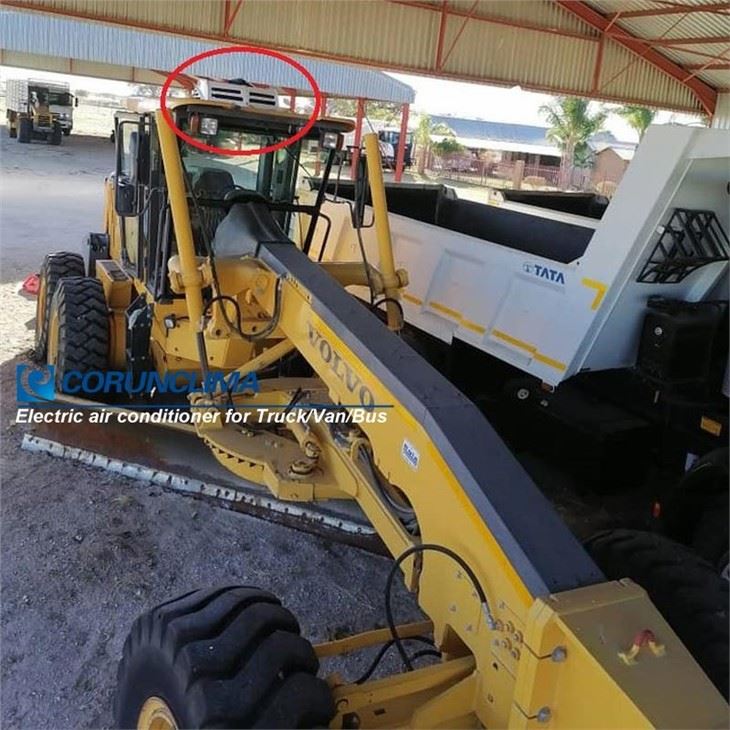

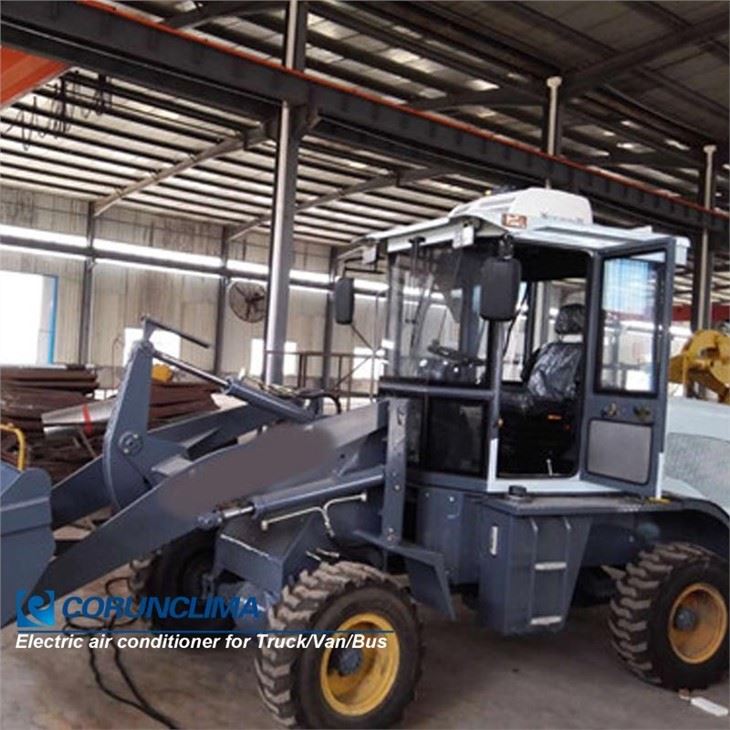

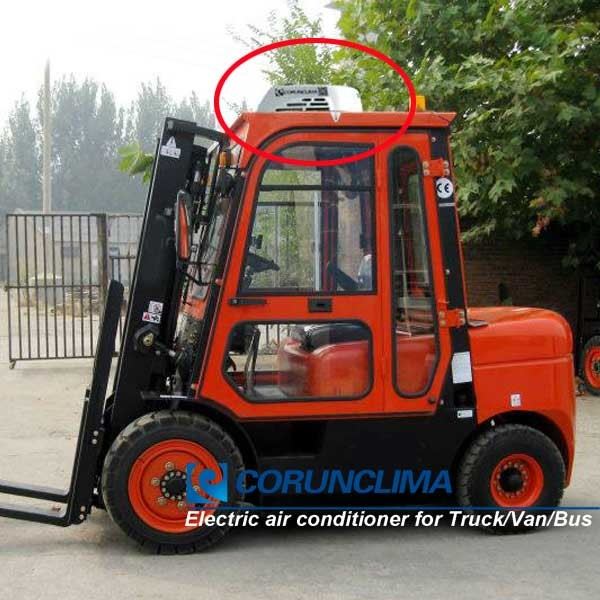

Successful Cases:
Q&A
1. What is the cooling temperature range of the air conditioner?
The temperature inside the driver cab can reach 18-19 degrees.
2. Is it easy to install?
Yes, Installation is very convenient. Only fix it and connect power cable to Battery/Alternators.No need to install compressor, No need connect hose, No need vacuum and no need fill gas.
3. If the battery runs out, how to charge it?
Automatic charging by the truck's generator
4. If the external environment is seriously polluted and the dust is very large, how to filter it and does it affect the coolant?
There is no effect, but the condenser outside the air conditioner needs to be cleaned frequently.
