All roof mounted Air Conditioning System for Electric Vehicle, can directly run on DC electric batteries. There is no need to install compressor or engine, which can greatly save fuel and environment pollution, reduce engine wear and engine power loss during driving. It is special for minibus, ambulance, vans, etc.
Benefit of Air Conditioning System for Electric Vehicle
1.No need to install mechanic compressor, installation is much easier and cost-saving.
2.A/C can still cool the passengers when engine is off, save fuel, make passengers comfortable.
3.Whole cost (A/C cost+installation cost+managing cost)=Conventional A/C Cost*30%-50%
4. 100% presser test and electric test
5.Save 10% Engine power when driving (compared with Engine driven A/C).
6.Much lighter than Engine type bus A/C.
7.No Engine Noise when cabs in cooling.
8.Fuel Saving (saving 3000gallons diesel per year).
Technical Data of Air Conditioning System for Electric Vehicle
|
Model NO. |
AC60TB | AC65B | AC100TB | |
|
Cooling Capacity |
6.8KW/23200BTU | 6.0KW/20500BTU | 9.6KW/32800BTU | |
|
Voltage |
DC12V/DC24V | DC12V/DC24V | DC12V/DC24V | |
|
Current |
75A(12V)/45A(24V) | 60A(12V)/42A(24V) | 120A(12V)/75A(24V) | |
|
Refrigerant |
R134A | R134A | R134A | |
|
Evaporator Air Flow Volume |
850M3 /H | 1100M3 /H | 1600M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | |||
|
Condenser |
Fan Quantity |
1 |
1 | 2 |
|
Dimension |
Monoblock 1263*1040*198mm | 1050*783*190mm | Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 48Kg | 29Kg | Monoblock 56Kg | |
|
Evaporator |
Fan Quantity |
1 |
1 | 2 |
|
Dimension |
NA | 677*298*140mm | NA | |
|
Weight |
NA | 12Kg | NA | |
|
Applying |
4.5-5.5m Van | 4.5-5.5m Van | 4.5-6.0m Van | |
Controller.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

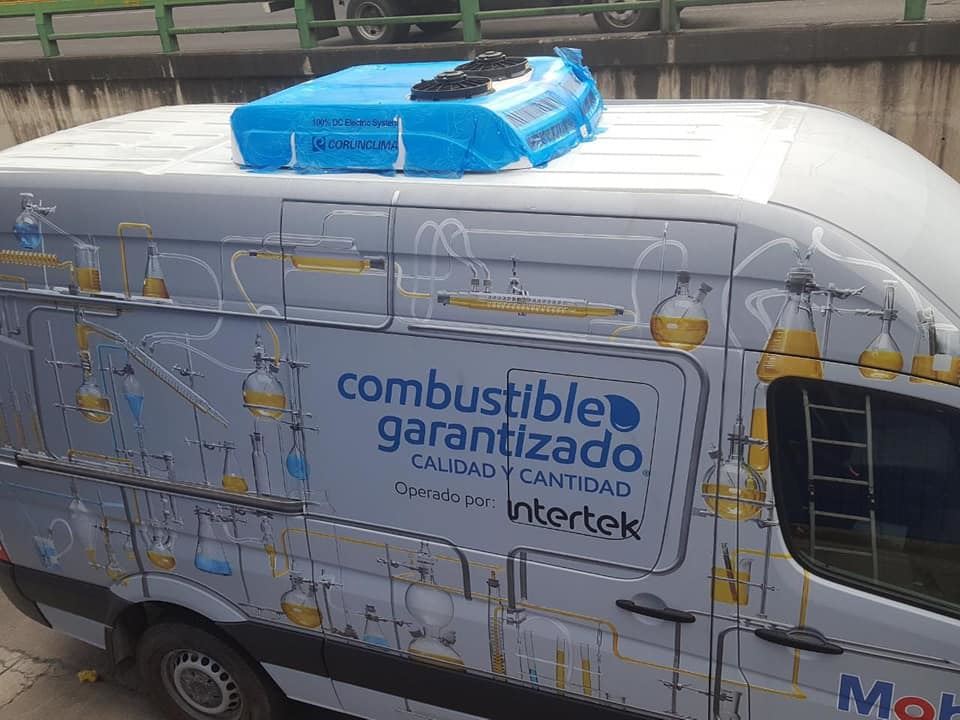

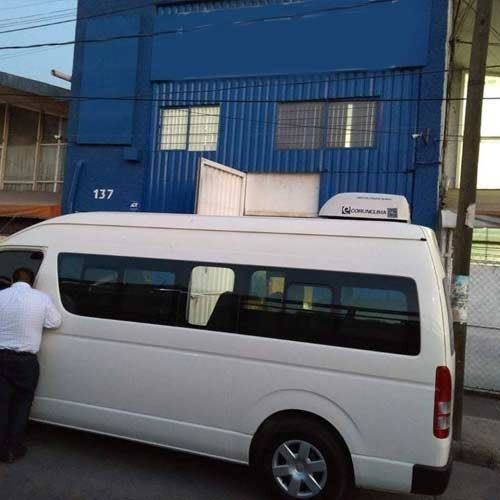

Successful Cases of Air Conditioning System for Electric Vehicle:
Full Electric is Future, We are Already Here.
Even in UAE, local temp. 50℃, humidity 100%, the customers are surprised and satisfiedwith the cooling performance of Corunclima Air Conditioning System for Electric Vehicle. More and more customer choose Corunclima Pure DC electrical A/C units to save time and money.
FullElectric is the Future, We're already here. Follow us.
Pls send inquiry to info@corunclima.com.
Never Losing the Future Opportunity, Contact us Now.
