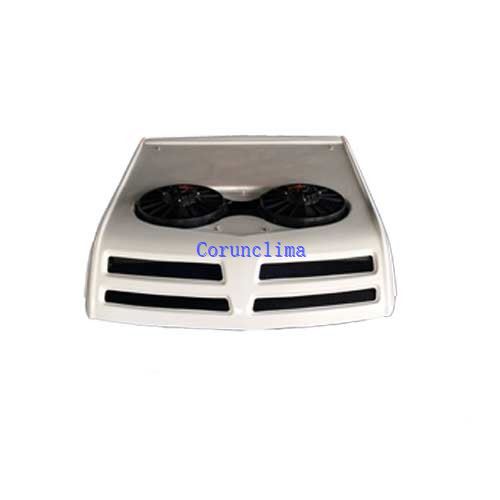

Battery Air Conditioner

Model: AC100TB
Pure DC12V Electric air conditioner for electrical buses and Vans
No need installing mechnical compressor
Applying for: Vans, Buses, Pure Electric and Hybrid Passenger Vans，Trolly bus, Shuttle bus
S

Send Inquiry

Description

Benefit

1.Customized 12V and 24V compressor with brushless motor

2. different speeds to meet different applications, have been proved in market for 8 years

3. 100% presser test and electric test

4.Save fuels when engine-on and engine-off.

5.Roof top mounted, R134A pre-filled. Stop Engine and battery driven.

Technical Data of Battery air conditioner AC100TB

Model NO.		AC100TB
Cooling Capacity		9.6KW/32800BTU
Voltage		DC12V/DC24V
Current		120A(12V)/75A(24V)
Refrigerant		R134A
Evaporator Air Flow Volume		1600M3 /H
Compressor		DC 12V/24V Electric Compressor
Condenser	Fan Quantity	2
	Dimension	Monoblock 12631040198mm
	Weight	Monoblock 56Kg
Evaporator	Fan Quantity	2
	Dimension	NA
	Weight	NA
Applying		4.5-6.0m Van

Controller.

controller of Battery air conditioner

Easy operation, Digital,. Put on dashboard

Plug-in: 220V, 380V, (Electric Standby) is Optional

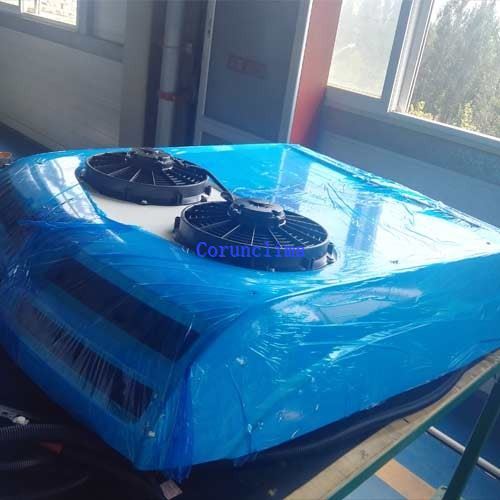

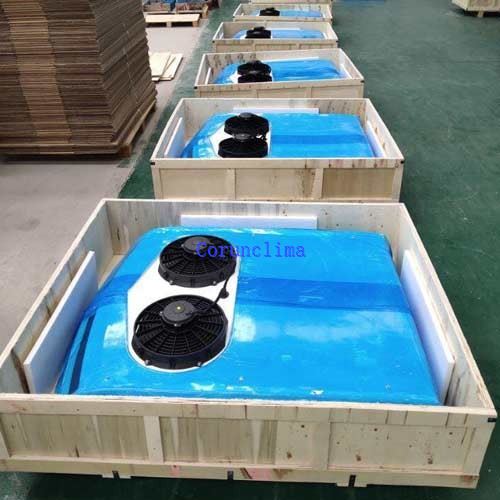

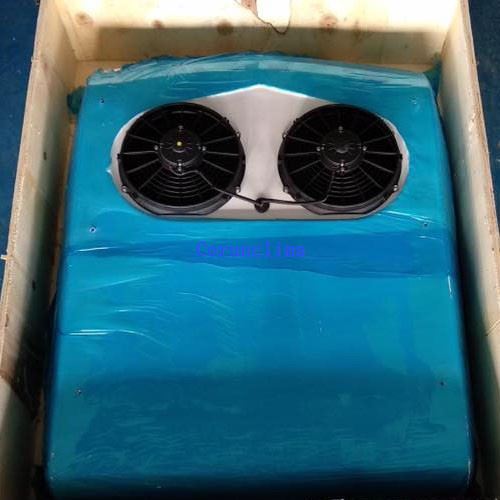

Successful Cases of Corunclima Battery air conditioner AC100TB:

Battery air conditioner

Full Electric is Future, We are Already Here.

Corunclima has been designing, producing, and exporting DC electric aircon and DC electric refrigeration solution since 2006, we own the real technology, can customize the suitable solution for different electric vehicles, no matter what voltage the vehicle is.

Inquiry to info@corunclima.com
