Battery aircon is new Green technology. It is driven by DC12V/DC24V directly (Alternator or Battery). All system (Compressor, Fan, Blower etc) are DC12V/DC24V electrical.
Benefit
1) Fast installation. Open hole, fix it, connect wiring, its enough.
2) Fast cooling. 10miutes will feeling cool.
3) Durable. Used in UAE, Australia etc very hot countries from 2016 years.
4) Lower maintenance.
5)Maintains Cooling when Engine-Off.
6)No Noise. No compressor Noise.

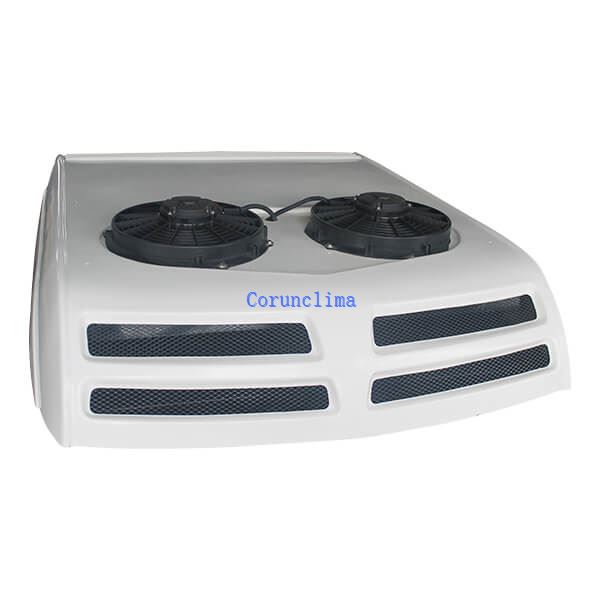

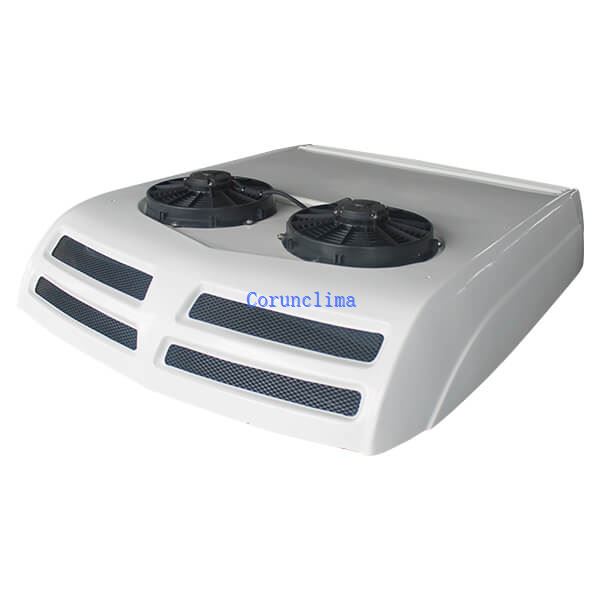

Technical Data
|
Model NO. |
AC100TB | |
|
Cooling Capacity |
9.6KW/32800BTU | |
|
Voltage |
DC12V/DC24V | |
|
Current |
120A(12V)/75A(24V) | |
|
Refrigerant |
R134A | |
|
Evaporator Air Flow Volume |
1600M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
2 |
|
Dimension |
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 56Kg | |
|
Evaporator |
Fan Quantity |
2 |
|
Dimension |
NA | |
|
Weight |
NA | |
|
Applying |
4.5-6.0m Van | |
Controller.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

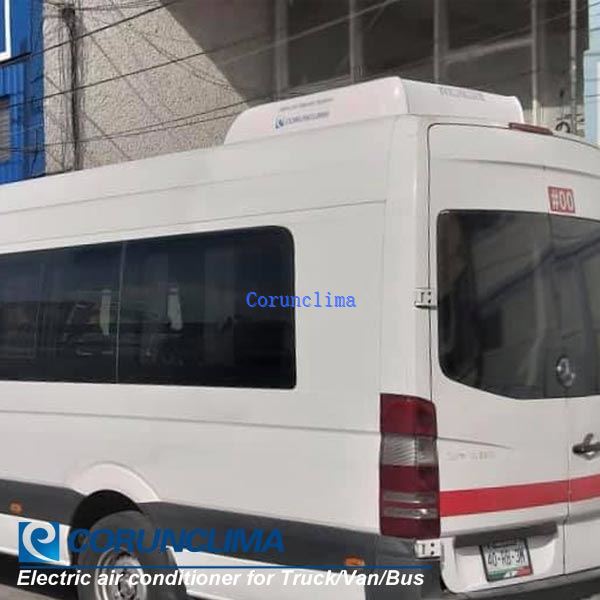

Successful Cases:
Full Electric is Future, We are Already Here.
Corunclima understands well about customers' requirement, and can offer a suitable air conditioner system for you, contact us for more info.
Never Losing the Future Opportunity, Start Now.
Inquiry to info@corunclima.com
