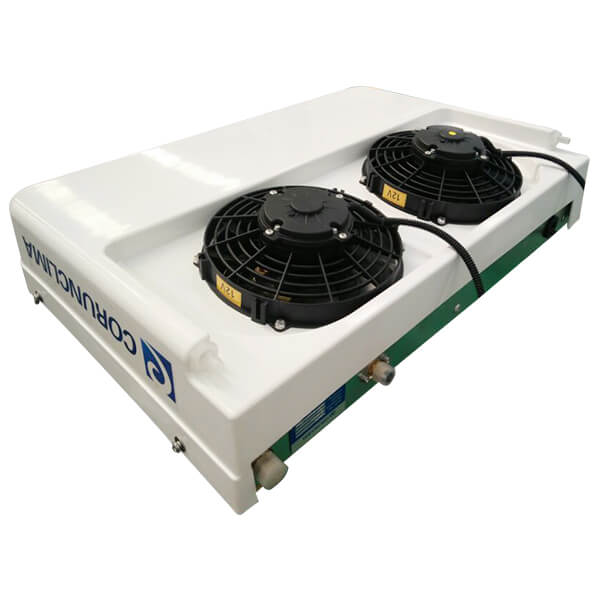

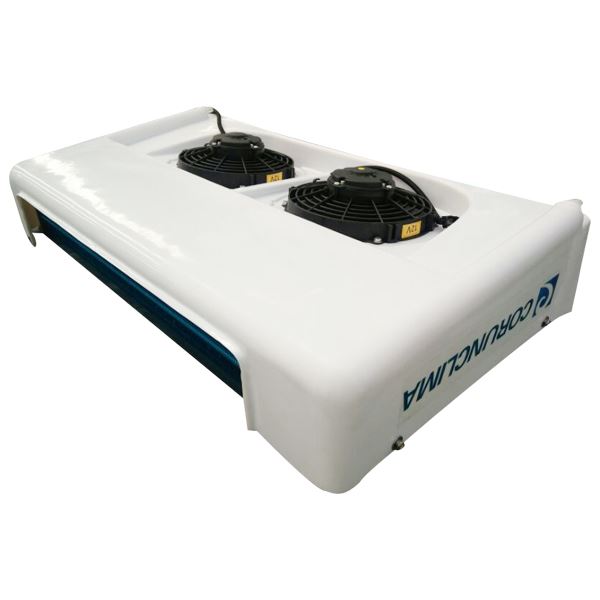

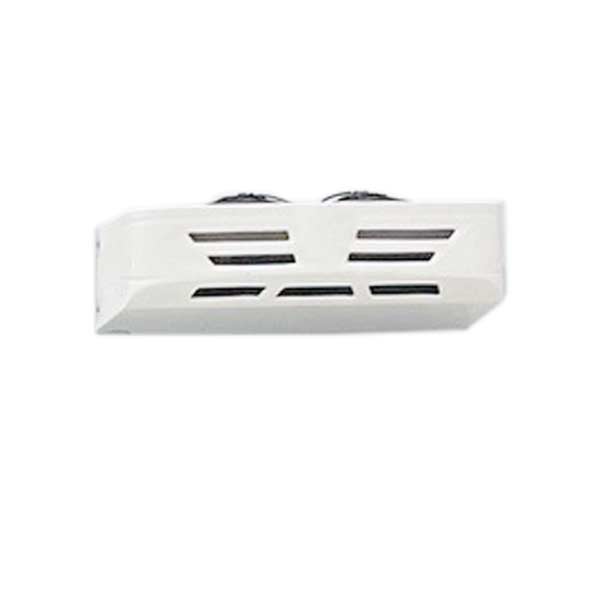

Box truck refrigeration unit V350F is one of Corunclima Best Popular Model. It is front mounted, driven by the engine, suitable for truck box from 8m3 to 20m3. It can be chiller or freezer (-20℃) for mini truck, pickup, bakkie, UTE vehicles, etc.
Benefits
1.Use Original Top Brand parts, Sanden, QP, TM compressor, Danfoss, etc.
2.Hot gas defrosting system .
3.Separate design make it easy to install.
4.high and low pressure protection for cooling system, sturdy evaporator cover protect core body from damage.
5. friendly refrigerant R404A.
6. Add CPR valve to protect compressors.
Technical Data
|
Model |
V350F | |
|
Temperature |
-20℃ | |
|
Voltage |
DC12V/DC24V | |
|
Cooling Capacity |
2250w(-20℃) | |
|
Refrigerant |
R404A | |
|
Compressor |
SD7L15/TM16 | |
|
Condenser |
Fan Quantity |
1 |
|
Dimension |
925*450*260mm | |
|
Weight |
28Kg | |
|
Evaporator |
Fan Quantity |
2 |
|
Dimension |
955*534*160mm | |
|
Weight |
20Kg | |
|
Application |
+5℃ |
18-20m3 |
|
-5℃ |
14-16m3 | |
|
-20℃ |
8-10m3 | |
Controller is Digital, Very easy to operate. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

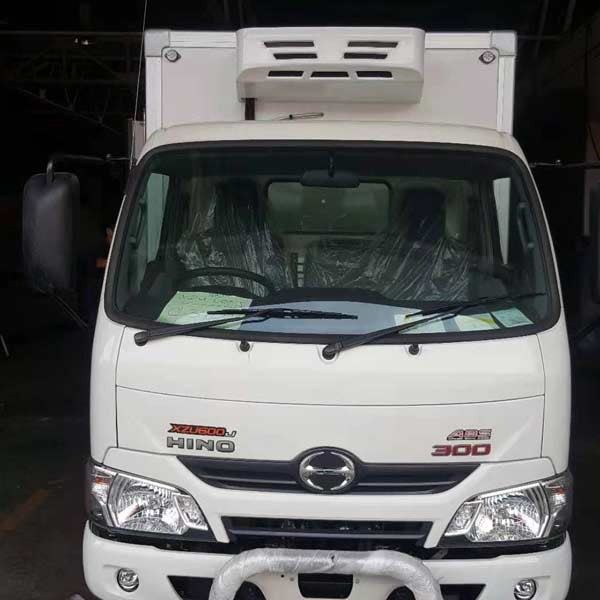

Successful Cases of Box truck refrigeration unit V350F:
Corunclima truck transport refrigeration units have already been installed in South africa,Mexico, Chile, UAE, Qatar, Thailand, Australia, etc.
Stronger quality control is Corunclima's main competitive advantages, which is why our partners are increasingly successful and the Corunclima brand is becoming increasingly popular.
