Battery powered Cargo van air conditioner
Benefit
1. Pure DC Electrical, DC12V, DC24V, DC48V, DC72V, DC110V, DC400V are available.
2. No need install mechanical compressor feed by engine
3. Monoblock type, Easy installation, two workers two hours is ok
4.Quiet / less noise ensures the driver feel comfort.
5.Compatible with Full Electrical bus, Van, Hybrid bus, EV bus
Technical Data
|
Model NO. |
AC60TB | AC65B | AC100TB | |
|
Cooling Capacity |
6.8KW/23200BTU | 6.0KW/20500BTU | 9.6KW/32800BTU | |
|
Voltage |
DC12V/DC24V | DC12V/DC24V | DC12V/DC24V | |
|
Current |
75A(12V)/45A(24V) | 60A(12V)/42A(24V) | 120A(12V)/75A(24V) | |
|
Refrigerant |
R134A | R134A | R134A | |
|
Evaporator Air Flow Volume |
850M3 /H | 1100M3 /H | 1600M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | DC 12V/24V Electric Compressor | DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
1 |
1 | 2 |
|
Dimension |
Monoblock 1263*1040*198mm |
1050*783*190mm
|
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 48Kg | 29Kg | Monoblock 56Kg | |
|
Evaporator |
Fan Quantity |
1 |
1 | 2 |
|
Dimension |
NA | 677*298*140mm | NA | |
|
Weight |
NA | 12Kg | NA | |
|
Applying |
4.5-5.5m Van | 4.5-5.5m Van | 4.5-6.0m Van | |
Controller.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

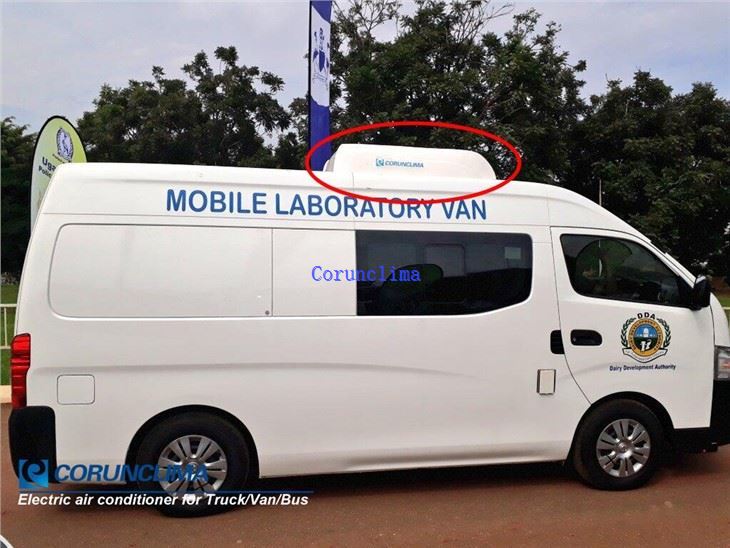

Successful Cases:
Full Electric is Future, We are Already Here.
With 15 years experience of applications, we understand you better! Our DC electric Cargo van air conditioner have been installed in Mexico, UAE, Australia,Romania, South africa and so on. Contact us to get more installation cases.
If you are looking for Cargo van air conditioner, or want to be our dealer, please feel free to conta ct us.
