Model: AC100TB
Pure DC12V Electric air conditioner for electrical buses and Vans
No need installing mechnical compressor
Applying for: Vans, Buses, Pure Electric and Hybrid Passenger Vans,Trolly bus, Shuttle bus
Send Inquiry
Description

Battery powered roof air conditioner for van



Benefit


1) Installation is easy.

2)Keep you cool even when engine off. ( when Van parking or Waiting).

3)Strong cooling capacity, sufficient cooling air, low noise.

4)Save Engine Power. No power consumption for compressor.

5)Special for Sprinter, Ford, Fiat, Renault, VW, IVECO etc Van, ambulance vehicles.



Technical Data



Model NO.

AC100TB

Cooling Capacity

9.6KW/32800BTU

Voltage

DC12V/DC24V

Current

120A(12V)/75A(24V)

Refrigerant

R134A

Evaporator Air Flow Volume

1600M3 /H

Compressor

DC 12V/24V Electric Compressor

Condenser

Fan Quantity

2

Dimension

Monoblock 1263*1040*198mm

Weight

Monoblock 56Kg

Evaporator

Fan Quantity

2

Dimension

NA

Weight

NA

Applying

4.5-6.0m Van



Controller.

controller of roof air conditioner for van

Easy operation, Digital,. Put on dashboard

Plug-in: 220V, 380V, (Electric Standby) is Optional

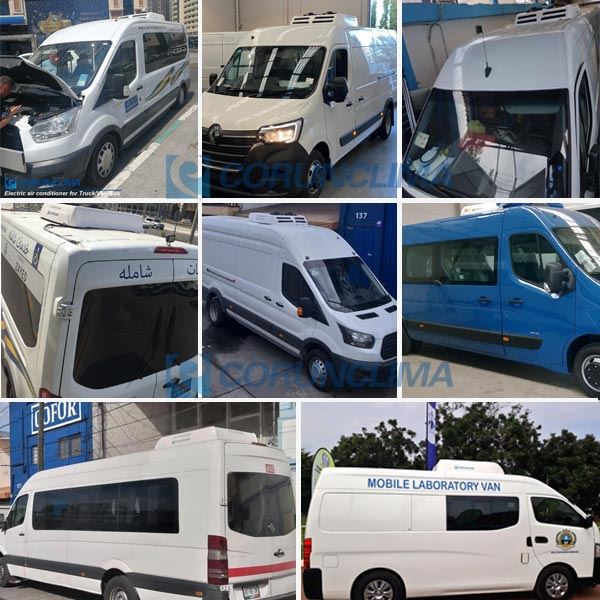

Successful Cases of rooftop ac unit for vans AC100TB:

rooftop ac unit for vans AC

Corunclima will continue to provide customers with high-quality and cost-effective roof mounted air conditioner for vans to make customers have more advantages in the competition.

At the same time, we will assist customers to participate in the project together, and formulate appropriate plans to help customers succeed.



Dealer wanted. OEM/ODM is available.

If you are looking for Roof air conditioner for van or want to be our dealer, please feel free to contact us.
