10Kw battery driven roof mount van air conditioner AC100TB is a new type of air conditioner independently developed by Counclima. No need add compressor near the engine, when engine off, the AC still cooling with battery.
Benefit
1. Pure DC Electrical, DC12V, DC24V, DC48V, DC72V, DC110V, DC400V are available.
2. Lower maintenance.
3. Monoblock type, Easy installation.
4. Connect to battery directly.
5. Save fuel.
Technical Data
|
Model NO. |
AC100TB | |
|
Cooling Capacity |
9.6KW/32800BTU | |
|
Voltage |
DC12V/DC24V | |
|
Current |
120A(12V)/75A(24V) | |
|
Refrigerant |
R134A | |
|
Evaporator Air Flow Volume |
1600M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
2 |
|
Dimension |
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 56Kg | |
|
Evaporator |
Fan Quantity |
2 |
|
Dimension |
NA | |
|
Weight |
NA | |
|
Applying |
4.5-6.0m Van | |
Controller.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

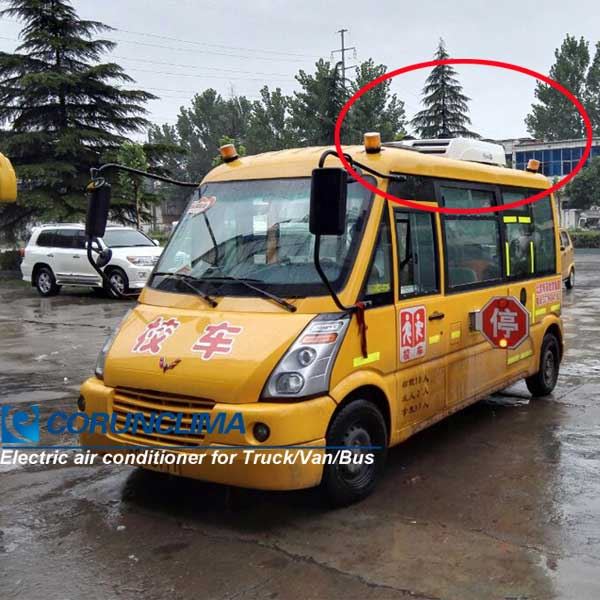

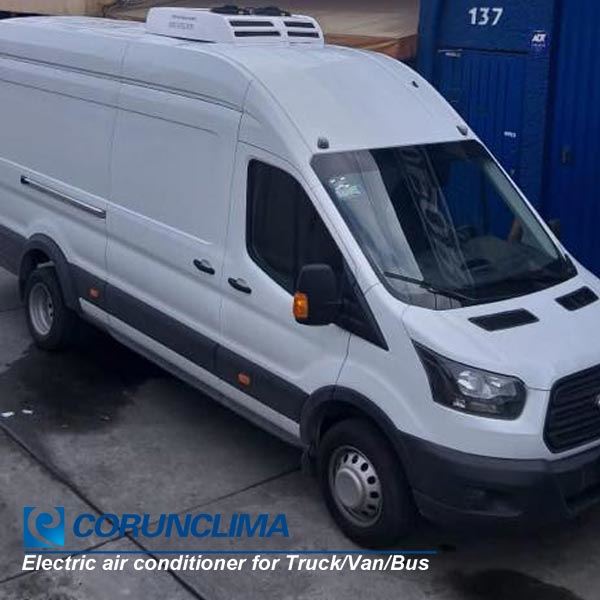

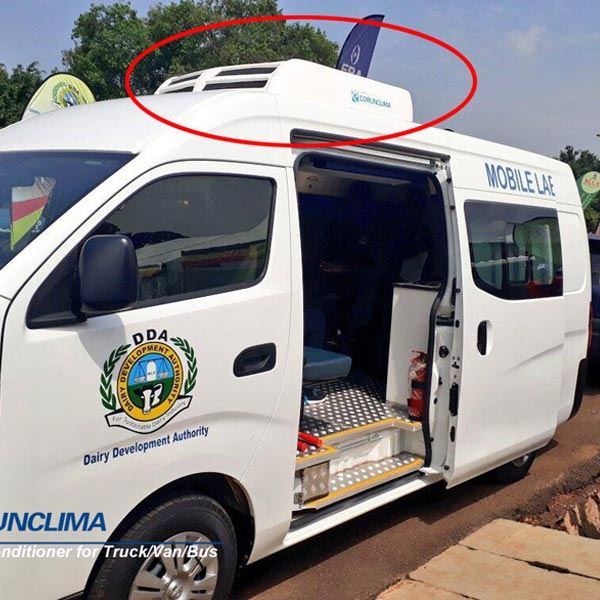

Successful Cases:
Full Electric is Future, We are Already Here.
Corunclima understands well about customers' requirement, and can offer a suitable air conditioner system for you, contact us for more info.
Never Losing the Future Opportunity, Start Now.
Inquiry to info@corunclima.com
