Roof mounted air conditioning units for trucks T20b is driven by battery. It does not require a mechanical compressor driven by engine, but relies on an on-board battery to drive an electric compressor.
Main Features
1.work continuously when parking
2.Easy to install. Two people can finish in half an hour.
3.Lower maintenance for most Key parts of Top brand.
4.The compressor is directly driven by electricity without a converter, which reduces the failure rate
5.Same cooling capacity, minimum current
6.passed the Canadian NRC laboratory test and the German Emark laboratory test
7.suitalbe for Trucks, trailers, tractors, excavators and other construction vehicles.
Technical Data
|
Model NO. |
T20B |
|
Cooling Capacity |
2.2-2.5KW/8,500BTU |
|
Voltage |
DC12V/DC24V |
|
Current |
48A(12V)/33A(24V) |
|
Evaporator Air Flow Volume |
750M3 /H |
|
Compressor |
Totally-enclosed, DC-powered, direct connection brushless motor |
|
Controller |
Digital/Manual |
|
Installation |
All roof top mounted |
|
Bunk Heater |
Optional |
|
Applying |
Heavy- duty vehicles&machinery with 12V/24V |
Controller.
Digital, Easy operation
Plug-in: 220V, 380V, (Electric Standby) is Optional

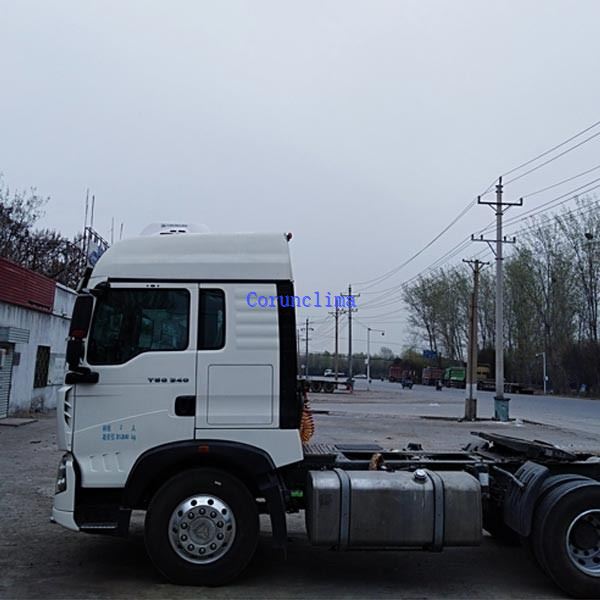

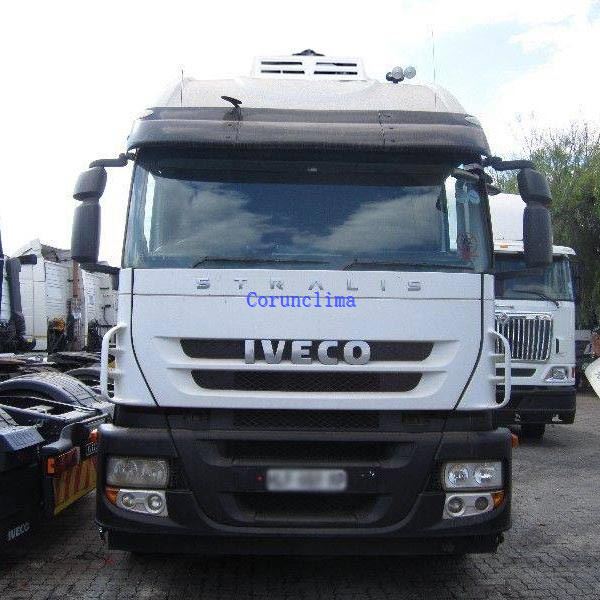

Successful Cases:
Since 2006, we start to design, manufacture, and export the Full Electric air conditioning. We already own the key technology.
If you are looking for Full electric Roof mounted air conditioning units for trucks, please feel free to contact us. info@corunclima.com
