This DC series air conditioner is driven by DC12V/DC24V directly (Alternator or Battery). All system (Compressor, Fan, Blower etc) are DC12V/DC24V electrical.
Engine drive alternator, the alternator drive the whole a/c system or alternator charge battery and battery drive the whole a/c system.
It is new Green technology. No need engine driven compressor. Easy installation, no noise, Zero Emission.
Benefit
1) No need to install mechanic compressor or bracket set, installation is easier and cost-saving.
2)A/C can still cool the passengers when engine is off, save fuel, make passengers comfortable.
3)Whole cost (A/C cost+installation cost+managing cost)=Conventional A/C Cost*30%-50%
4)Save fuel.
5)roof mounted, light weight, fit for vehicle of different width.
Technical Data
|
Model NO. |
AC100TB | |
|
Cooling Capacity |
9.6KW/32800BTU | |
|
Voltage |
DC12V/DC24V | |
|
Current |
120A(12V)/75A(24V) | |
|
Refrigerant |
R134A | |
|
Evaporator Air Flow Volume |
1600M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
2 |
|
Dimension |
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 56Kg | |
|
Evaporator |
Fan Quantity |
2 |
|
Dimension |
NA | |
|
Weight |
NA | |
|
Applying |
4.5-6.0m Van | |
Controller.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

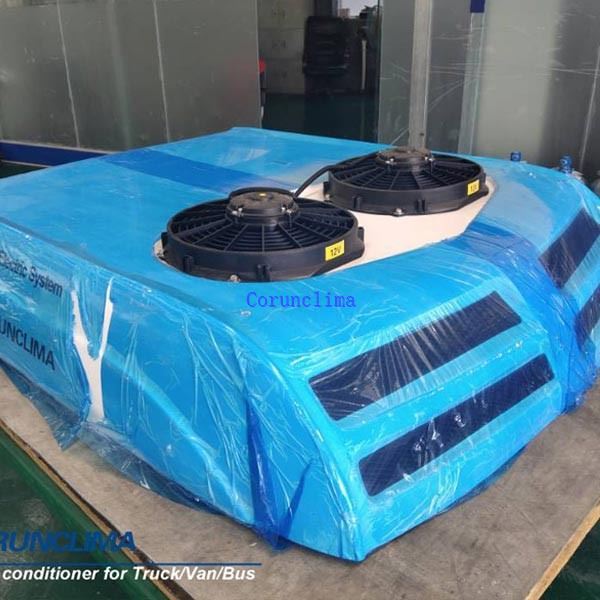

Successful Cases of Corunclima Battery air conditioner AC100TB:
Dealer wanted. ODM/OEM are available.
Inquiry to info@corunclima.com
