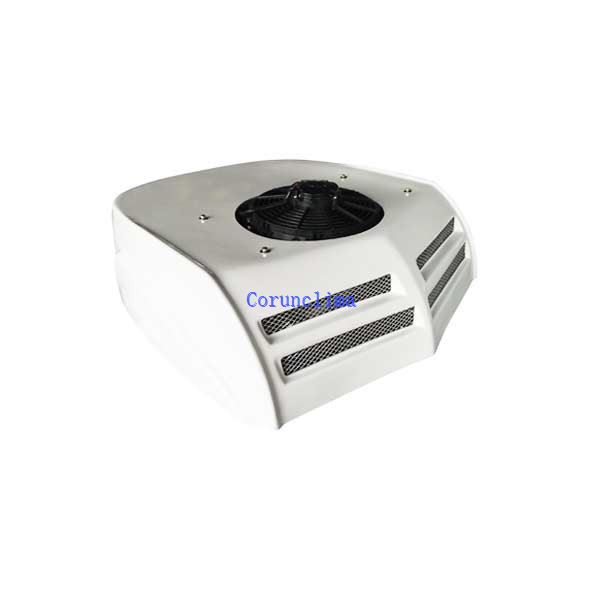

Rooftop air conditioner for trucks T20b is driven by battery. It does not require a mechanical compressor driven by engine, but relies on an on-board battery to drive an electric compressor.
Compared with traditional car air conditioners, electric air conditioners are simple to install, do not need to rely on the power of the vehicle engine, and can also rely on the original battery of the vehicle to work when parking. It can greatly save fuel and environmental pollution, reduce engine wear and engine power loss during driving.
Main Features
1.Rely on battery to work continuously when parking
2.Monoblock type, easy installation.
3.cool fast
4.Lower maintenance for most Key parts of Top brand.
5.Customized 12V and 24V compressor with brushless motor.
6.Reasonable outlet designed to prevent the water reflow.
Technical Data
|
Model NO. |
T20B |
|
Cooling Capacity |
2.2-2.5KW/8,500BTU |
|
Voltage |
DC12V/DC24V |
|
Current |
48A(12V)/33A(24V) |
|
Evaporator Air Flow Volume |
750M3 /H |
|
Compressor |
Totally-enclosed, DC-powered, direct connection brushless motor |
|
Controller |
Digital/Manual |
|
Installation |
All roof top mounted |
|
Bunk Heater |
Optional |
|
Applying |
Heavy- duty vehicles&machinery with 12V/24V |
Controller.
Digital, Easy operation
Plug-in: 220V, 380V, (Electric Standby) is Optional

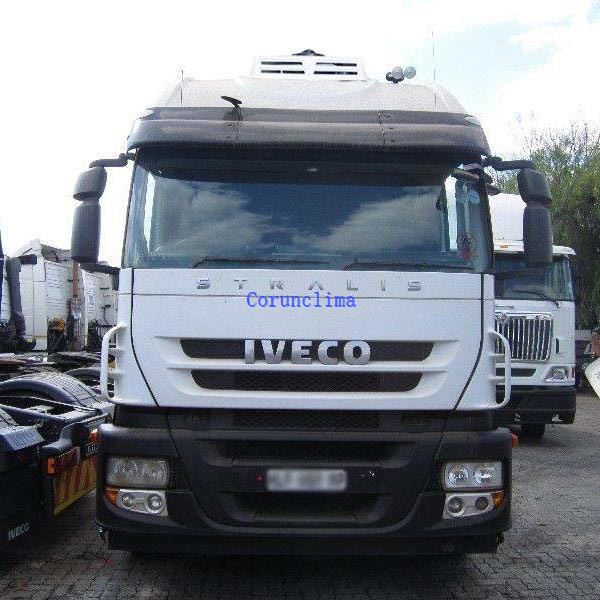

Successful Cases:
If you are looking for 100% electric Rooftop air conditioner for trucks, please feel free to contact us. info@corunclima.com
