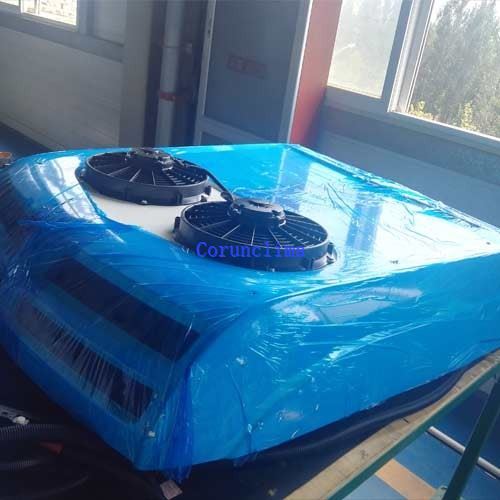

Rooftop air conditioner for van AC60TB is driven by battery.
Benefit
1.Easy to install.
2.Fast cooling. 10miutes will feeling cool.
3.Save fuel for engine-off when parking
4.Customized 12V and 24V compressor with brushless motor.
5.Quiet / less noise ensures the driver feel comfort.
6.The air vents can adjust and control the temperature and air speed without airduct.
Technical Data
|
Model NO. |
AC60TB | |
|
Cooling Capacity |
6.8KW/23200BTU | |
|
Voltage |
DC12V/DC24V | |
|
Current |
75A(12V)/45A(24V) | |
|
Refrigerant |
R134A | |
|
Evaporator Air Flow Volume |
850M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
1 |
|
Dimension |
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 48Kg | |
|
Evaporator |
Fan Quantity |
1 |
|
Dimension |
NA | |
|
Weight |
NA | |
|
Applying |
4.5-5.5m Van | |
Controller.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

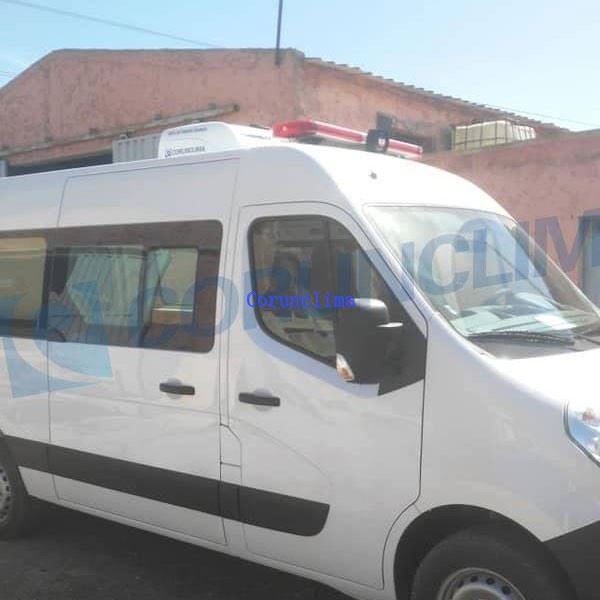

Successful Cases:
Full Electric is Future, We are Already Here.
Since 2006, we start to design, manufacture, and export the Full Electric A/C units. We already own the key technology of the Full Electric A/C units for engineering vehicle.
If you are looking for roof top ac for van, or want to be our dealer, please feel free to conta ct us. info@corunclima.com
