This battery driven Rooftop chiller is driven by 12V/24V vehicle original battery. Makes it be saving fuel. When engine off, the fridge can still cooling with battery.
Benefit
1. When you load or unload goods from vans, you can shut-off engine and still cooling that driven by battery directly.
2.No need install mechanical compressor feed by engine.Reduce vehicle engine wear.
3.Lower maintenance for without Mechanical compressor.
4.Digital control system, easy to operate, and can accurately monitor the operation of the entire system.
Technical Data
| Model | C150TB | |
|
Driven |
100% DC12V Powered by battery | |
|
Temperature |
-5℃ | |
|
Cooling Capacity |
1380w(-5℃) | |
|
Refrigerant |
R134A | |
|
Compressor |
DC 12V Electric Compressor | |
|
Condenser |
Fan Quantity |
1 |
|
Dimension |
1050*783*190mm | |
|
Weight |
28Kg | |
|
Evaporator |
Fan Quantity |
1 |
|
Dimension |
766*520*130mm | |
|
Weight |
12Kg | |
|
Electric Current |
72A | |
|
Application |
+5℃ |
6m3 |
|
-5℃ |
3m3 | |
Controller. Digital, Easy operation. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

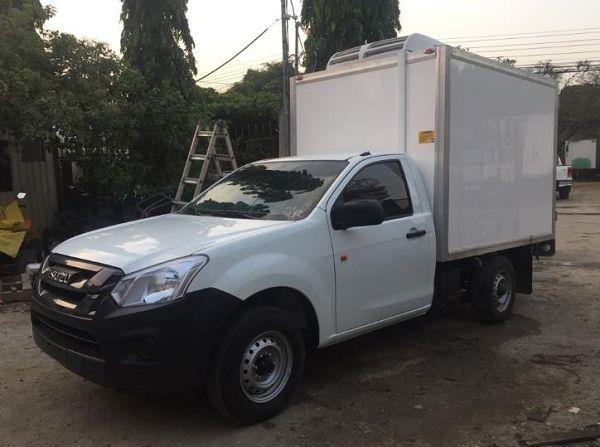

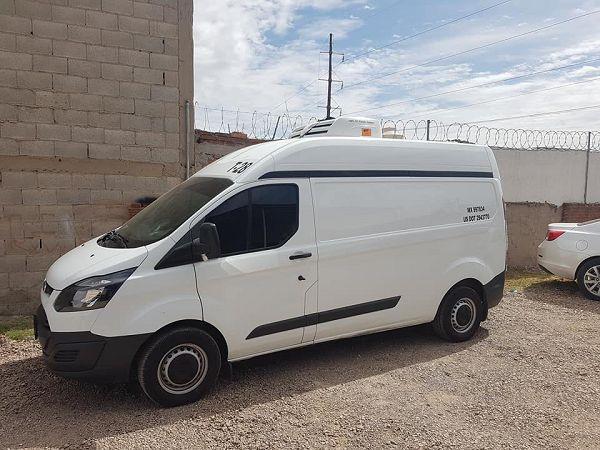

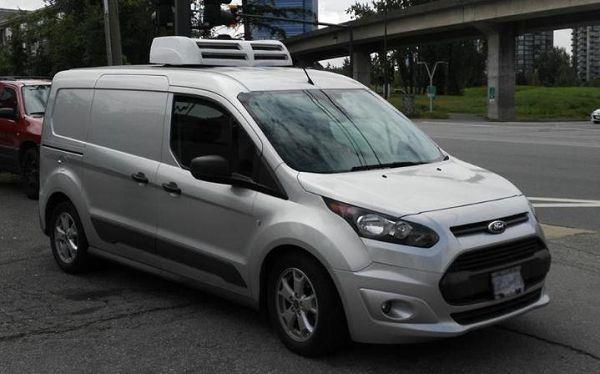

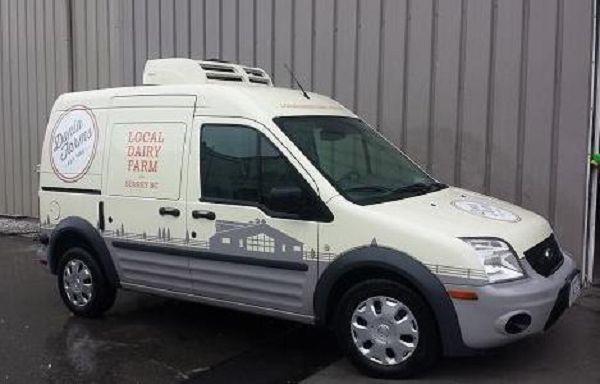

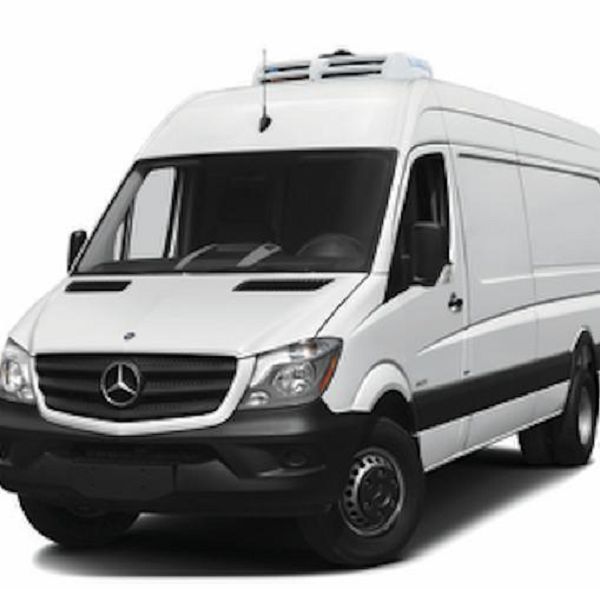

Successful Cases
From 2006 years, we start design, manufacture, and export the Full Electric refrigeration units. We already own the key technology of the Full Electric refrigeration units.
