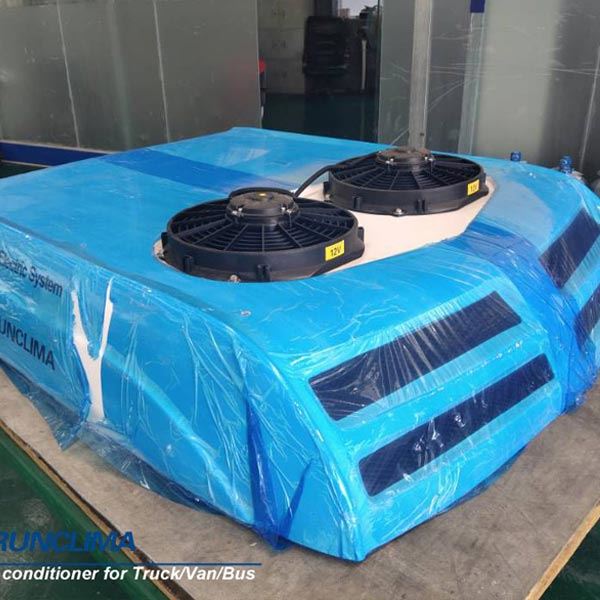

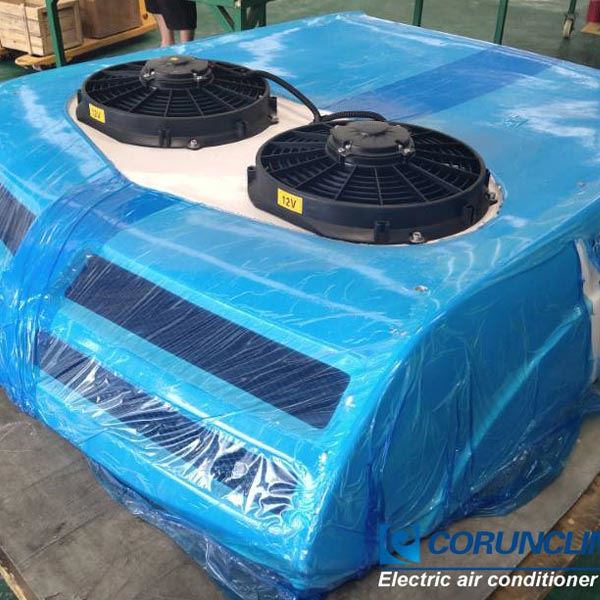

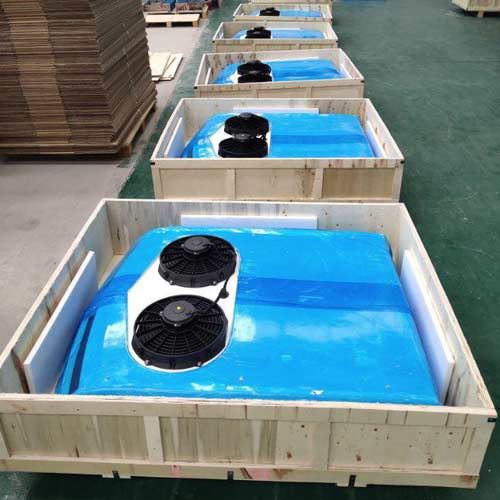

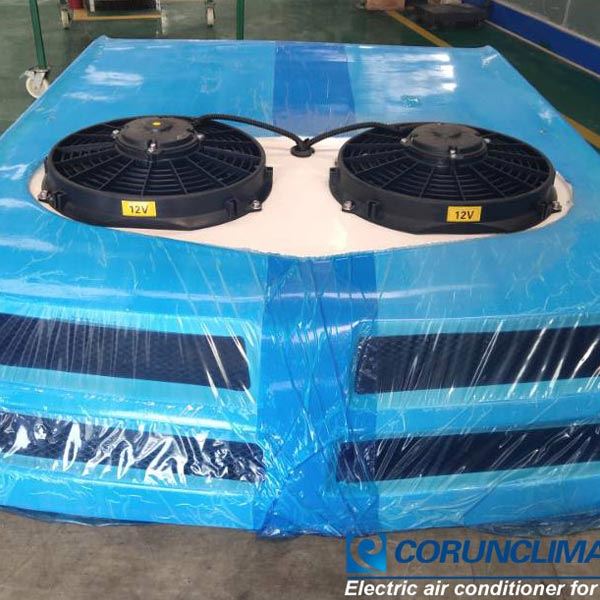

UTV air conditioner AC60TB is monoblock all roof mounted type. It is driven by battery. No need install mechanical compressor feed by engine.
Benefit
1) Fast cooling
2) More cooling air
3) Central air duct for most vans.
4) Lower maintenance for most Key parts of Top brand.
5)100% presser test and electric test
Technical Data
|
Model NO. |
AC60TB | |
|
Cooling Capacity |
6.8KW/23200BTU | |
|
Voltage |
DC12V/DC24V | |
|
Current |
75A(12V)/45A(24V) | |
|
Refrigerant |
R134A | |
|
Evaporator Air Flow Volume |
850M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
1 |
|
Dimension |
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 48Kg | |
|
Evaporator |
Fan Quantity |
1 |
|
Dimension |
NA | |
|
Weight |
NA | |
|
Applying |
4.5-5.5m Van | |
UTV air conditioner Controller.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional
Successful Cases of UTV air conditioner AC60TB:
Full Electric is Future, We are Already Here.
We not only provide high quality products, but also provide Professional technical support, Timely after-sale service,big project developing support,Key client developing support and so on.
Dealer wanted!
If you are looking for air conditioner for UTV, please feel free to contact us.
Inquiry to info@corunclima.com
