Corunclima DC electrical Van ac units
Benefit
1. Battery driven, saving 3000 gallons diesel per year.
2. Save Engine Power. No power consumption for compressor.
3. Cool down quickly. You will feel cool in 10miutes.
4.No Noise. No compressor Noise.
5.Whole cost (A/C cost+installation cost+managing cost)=Conventional A/C Cost*30%-50%
6.roof mounted, light weight, fit for vehicle of different width.
Technical Data
|
Model NO. |
AC60TB | AC65B | AC100TB | |
|
Cooling Capacity |
6.8KW/23200BTU | 6.0KW/20500BTU | 9.6KW/32800BTU | |
|
Voltage |
DC12V/DC24V | DC12V/DC24V | DC12V/DC24V | |
|
Current |
75A(12V)/45A(24V) | 60A(12V)/42A(24V) | 120A(12V)/75A(24V) | |
|
Refrigerant |
R134A | R134A | R134A | |
|
Evaporator Air Flow Volume |
850M3 /H | 1100M3 /H | 1600M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | DC 12V/24V Electric Compressor | DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
1 |
1 | 2 |
|
Dimension |
Monoblock 1263*1040*198mm |
1050*783*190mm
|
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 48Kg | 29Kg | Monoblock 56Kg | |
|
Evaporator |
Fan Quantity |
1 |
1 | 2 |
|
Dimension |
NA | 677*298*140mm | NA | |
|
Weight |
NA | 12Kg | NA | |
|
Applying |
4.5-5.5m Van | 4.5-5.5m Van | 4.5-6.0m Van | |

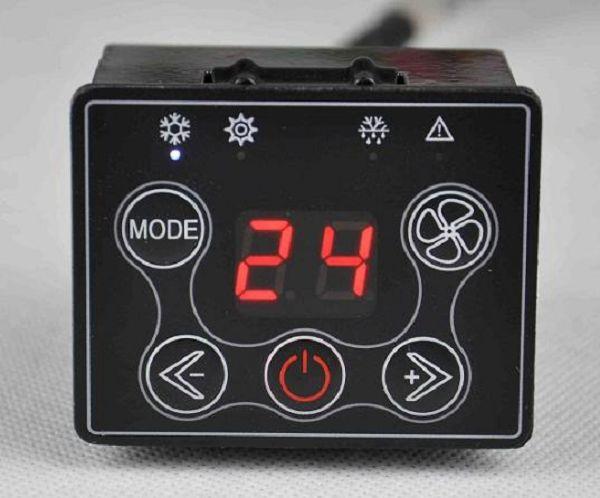

Controller.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

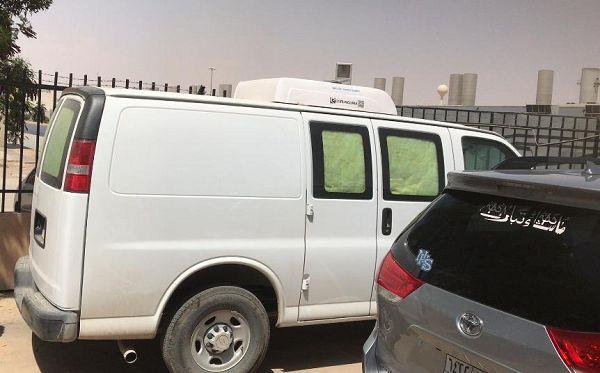

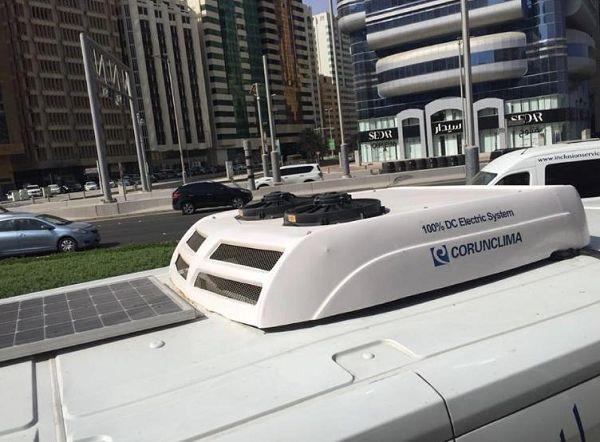

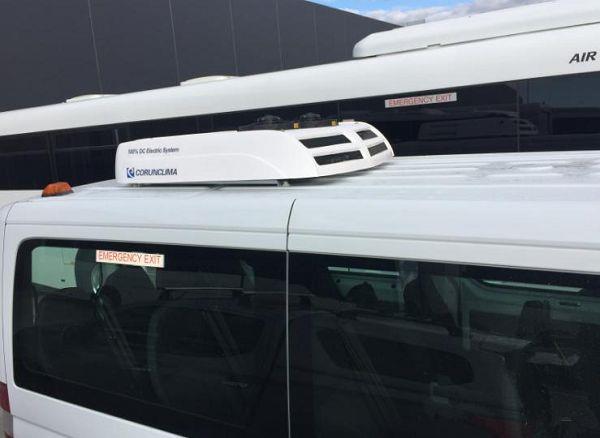

Successful Cases:
Welcome to contact us to get more applications of DC electrical Van ac units.
Dealer wanted. ODM/OEM are available.
