Full electric buses are more and more focused on by organizations and government. To meet such need, we launched all electric van air system.
Benefit
1.Fast installation. Open hole, fix it, connect wiring, its enough.
2.Fast cooling. 10miutes will feeling cool.
3.100% presser test and electric test.
4.Save fuels when engine-on and engine-off.
5.roof mounted, light weight, fit for vehicle of different width.
6.environment friendly.

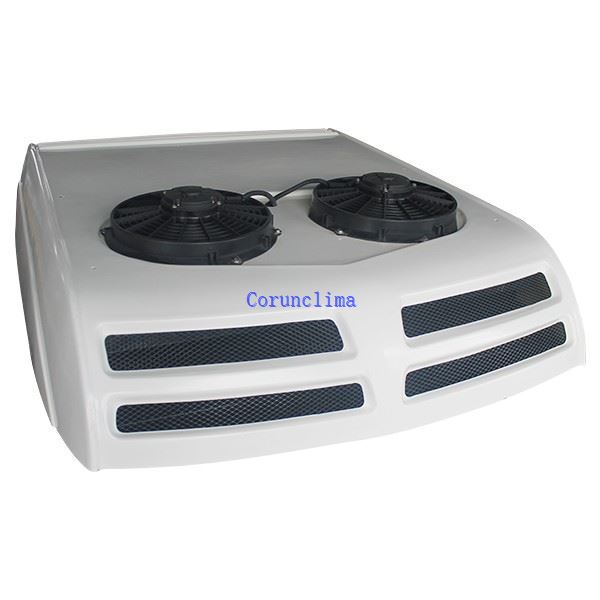

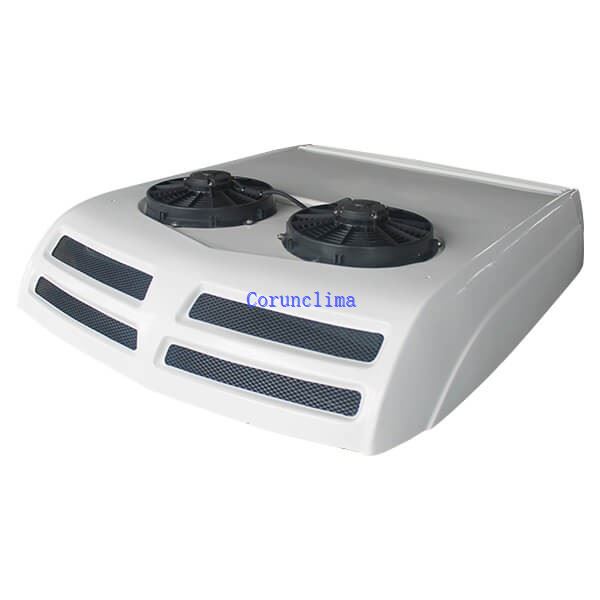

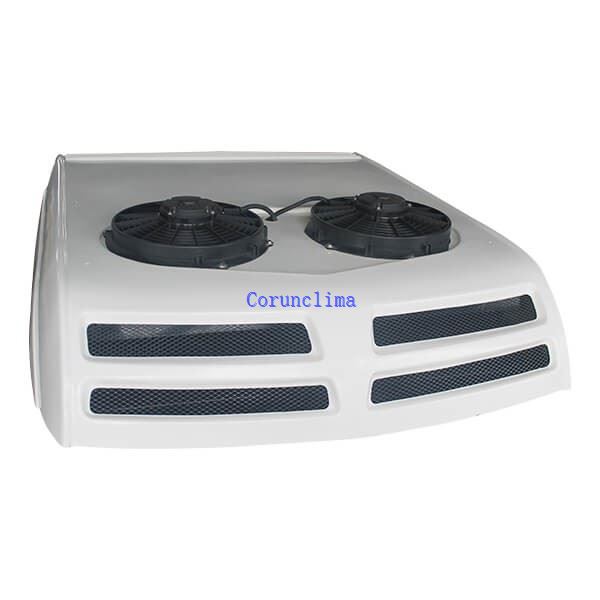

Technical Data of Van air system AC100TB
|
Model NO. |
AC100TB | |
|
Cooling Capacity |
9.6KW/32800BTU | |
|
Voltage |
DC12V/DC24V | |
|
Current |
120A(12V)/75A(24V) | |
|
Refrigerant |
R134A | |
|
Evaporator Air Flow Volume |
1600M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
2 |
|
Dimension |
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 56Kg | |
|
Evaporator |
Fan Quantity |
2 |
|
Dimension |
NA | |
|
Weight |
NA | |
|
Applying |
4.5-6.0m Van | |
Controller.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

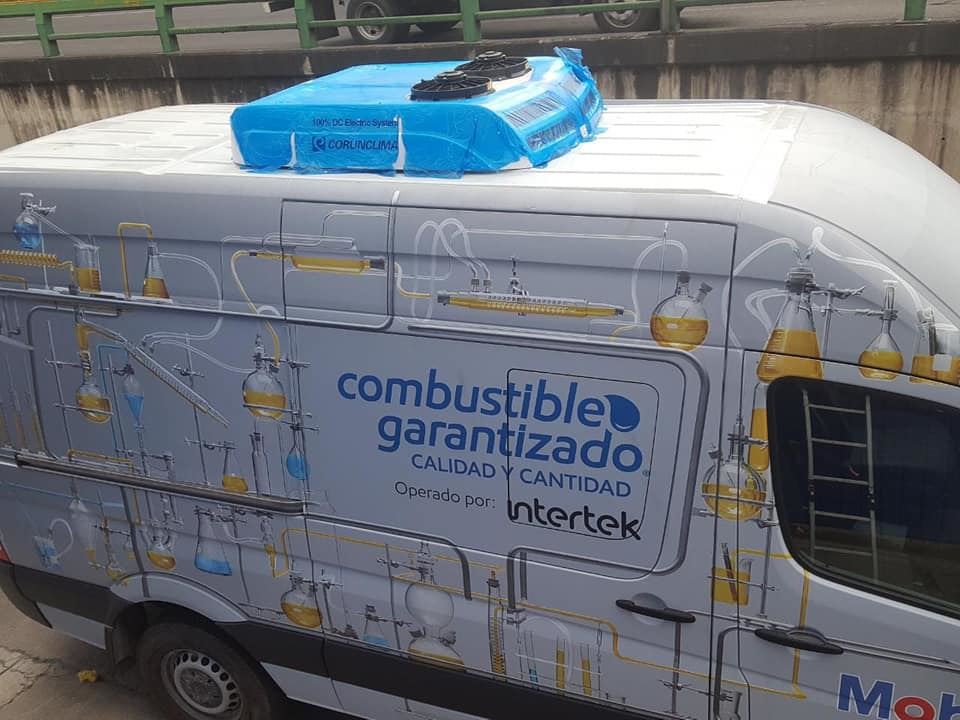

Successful Cases of Corunclima Battery air conditioner AC100TB:
Full Electric is Future, We are Already Here.
Dealer wanted. ODM/OEM are available.
Never Losing the Future Opportunity, Start Now.
Inquiry to info@corunclima.com
