Benefit
1) Installation of van air con unit is easy. No need install compressor, air duct, no need charge refrigerant gas (fully charged R134A in factory)
2)Maintains Cooling when Engine-Off. ( when Van parking or Waiting).
3)No Noise. No compressor Noise.
4)Save Engine Power. No power consumption for compressor.
5)roof mounted, light weight, fit for vehicle of different width.
Technical Data
|
Model NO. |
AC100TB | |
|
Cooling Capacity |
9.6KW/32800BTU | |
|
Voltage |
DC12V/DC24V | |
|
Current |
120A(12V)/75A(24V) | |
|
Refrigerant |
R134A | |
|
Evaporator Air Flow Volume |
1600M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
2 |
|
Dimension |
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 56Kg | |
|
Evaporator |
Fan Quantity |
2 |
|
Dimension |
NA | |
|
Weight |
NA | |
|
Applying |
4.5-6.0m Van | |
Controller.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

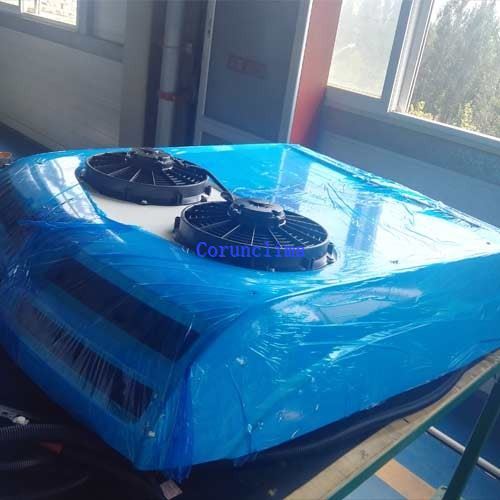

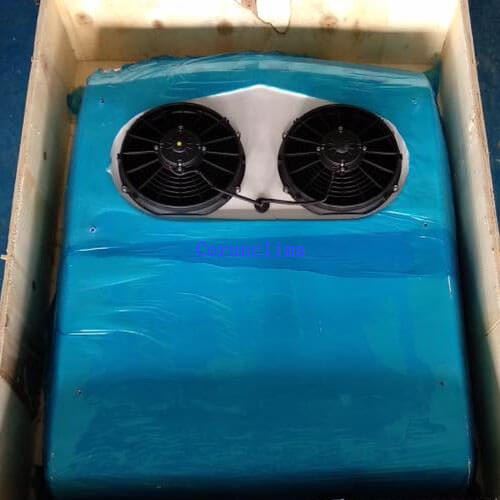

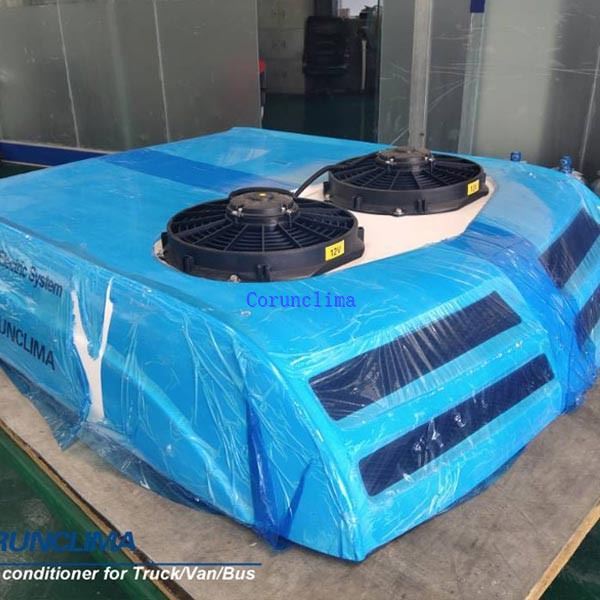

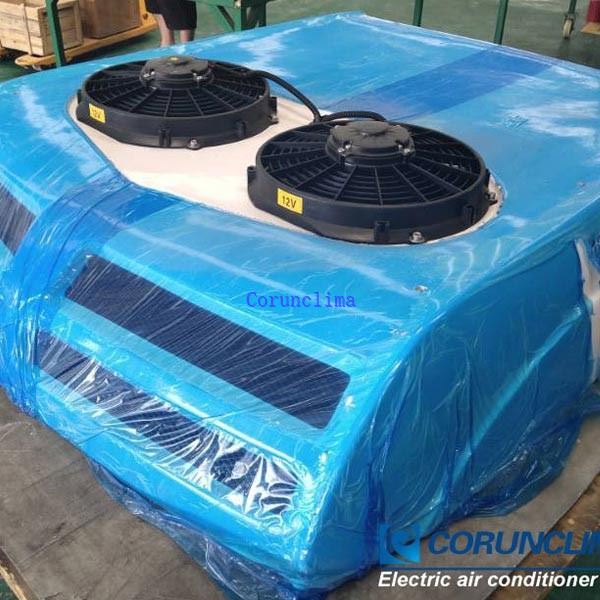

Successful Cases of Corunclima Battery van air con unit AC100TB:
Dealer wanted. ODM/OEM are available.
Inquiry to info@corunclima.com
