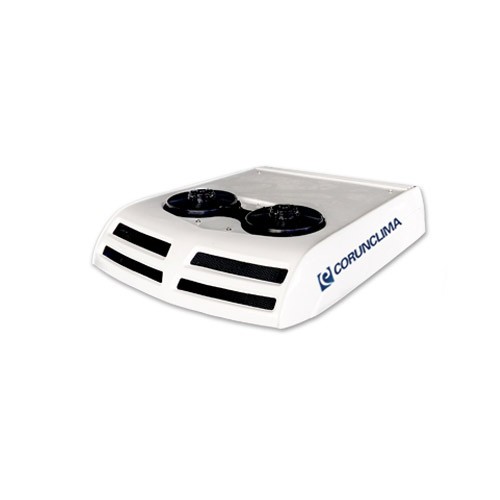

All roof mounted electric Van roof air conditioner, can directly run on DC electric batteries, no need to install compressor or engine, which can greatly save fuel and environment pollution, reduce engine wear and engine power loss during drive.
Benefit of cargo van roof air conditioner
1.No need to install mechanic compressor or bracket set, installation is easier and cost-saving.
2.A/C can still cool the passengers when engine is off, save fuel, make passengers comfortable.
3.Whole cost (A/C cost+installation cost+managing cost)=Conventional A/C Cost*30%-50%
4. 100% presser test and electric test
5. Customized 12V and 24V compressor with brushless motor&3 different speeds to meet different applications, have been proved in market for 8 years.
6. Specifized customized thick wire is low-resistance and anti-electro magnetic interference can endure heavy current.
Technical Data of cargo van roof air conditioner
|
Model NO. |
AC60TB | |
|
Cooling Capacity |
6.8KW/23200BTU | |
|
Voltage |
DC12V/DC24V | |
|
Current |
75A(12V)/45A(24V) | |
|
Refrigerant |
R134A | |
|
Evaporator Air Flow Volume |
850M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
1 |
|
Dimension |
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 48Kg | |
|
Evaporator |
Fan Quantity |
1 |
|
Dimension |
NA | |
|
Weight |
NA | |
|
Applying |
4.5-5.5m Van | |
Controller.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

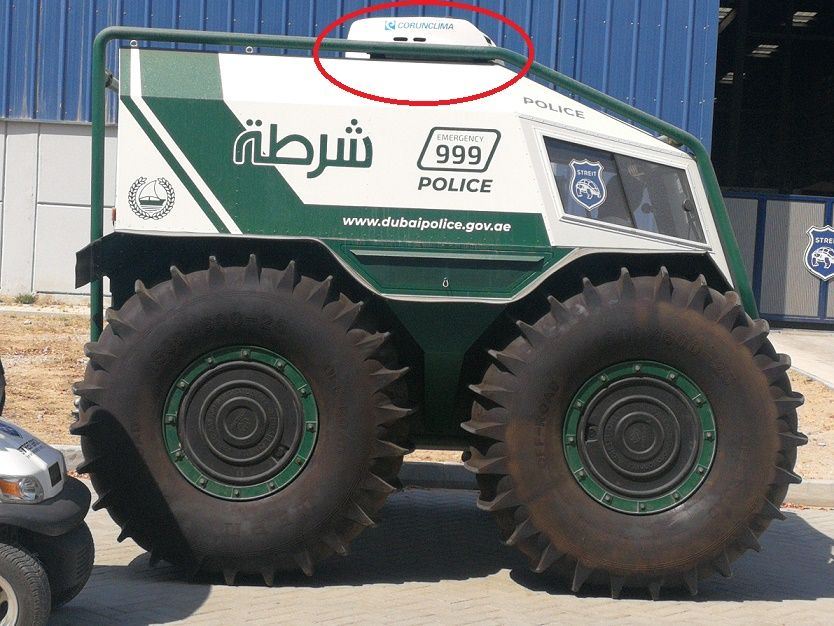

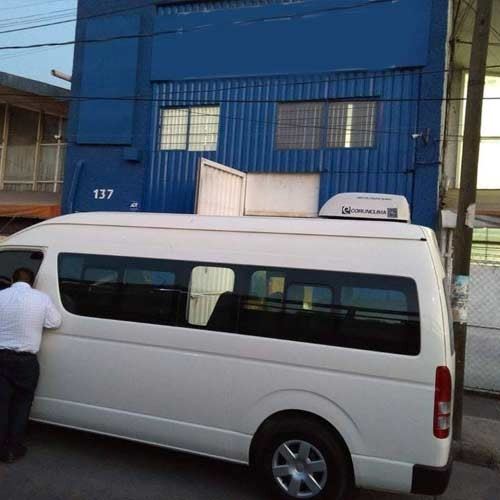

Successful Cases of corunclima electric Van roof air conditioner AC60TB:
Full Electric is Future, We are Already Here.
Even in Mid-east countries, where Ambient temperature is more than 52℃, Corunclima electric Van roof air conditioner still work perfect too. Special for Full Electrical bus, Van, Hybrid bus, EV bus.
Pls send inquiry to info@corunclima.com.
Never Losing the Future Opportunity, Start Now.
