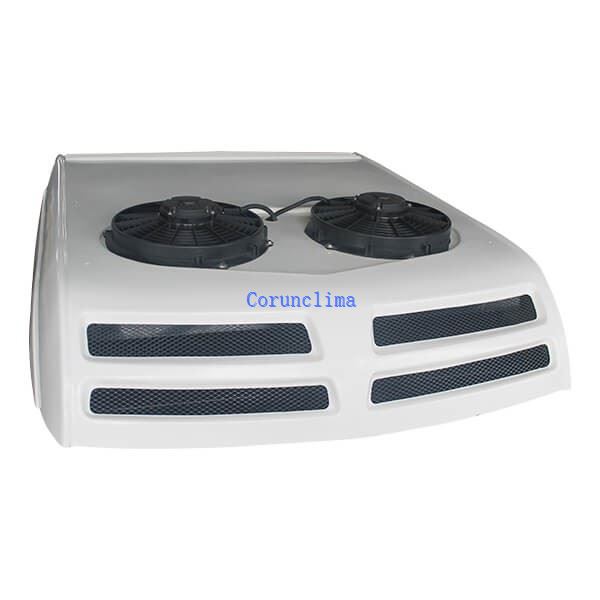

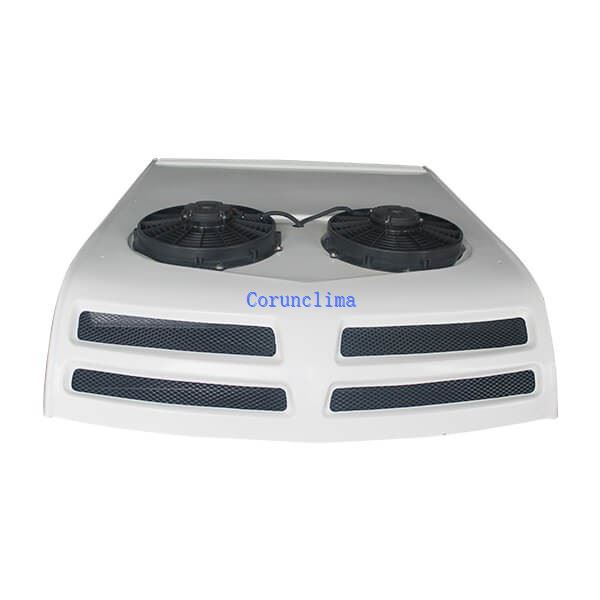

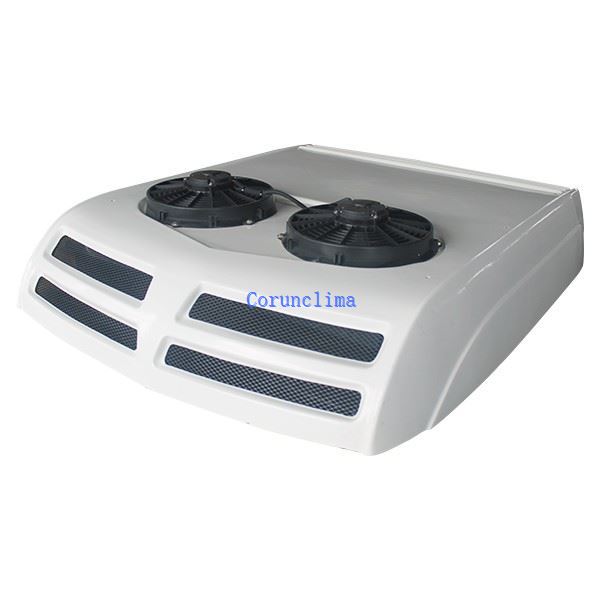

Corunclima Van rooftop ac units AC100TB is powered by battery/alternator.
It is monoblock all roof mounted type bus A/C for Engine Vans, Buses, Pure Electric and Hybrid Passenger Vans.
Benefit of Van rooftop ac units AC100TB
1.Connect to battery directly, save fuel.
2.Installation is much easier. Open hole, fix it, connect wiring, its enough.
3. Fast cooling. 10miutes will feeling cool..
4. Lower maintenance.
5.Durable. Used in UAE, Australia etc very hot countries since 2016.
Technical Data of Van rooftop ac units AC100TB
|
Model NO. |
AC100TB | |
|
Cooling Capacity |
9.6KW/32800BTU | |
|
Voltage |
DC12V/DC24V | |
|
Current |
120A(12V)/75A(24V) | |
|
Refrigerant |
R134A | |
|
Evaporator Air Flow Volume |
1600M3 /H | |
|
Compressor |
DC 12V/24V Electric Compressor | |
|
Condenser |
Fan Quantity |
2 |
|
Dimension |
Monoblock 1263*1040*198mm | |
|
Weight |
Monoblock 56Kg | |
|
Evaporator |
Fan Quantity |
2 |
|
Dimension |
NA | |
|
Weight |
NA | |
|
Applying |
4.5-6.0m Van | |
Controller of Van rooftop ac units.
Easy operation, Digital,. Put on dashboard
Plug-in: 220V, 380V, (Electric Standby) is Optional

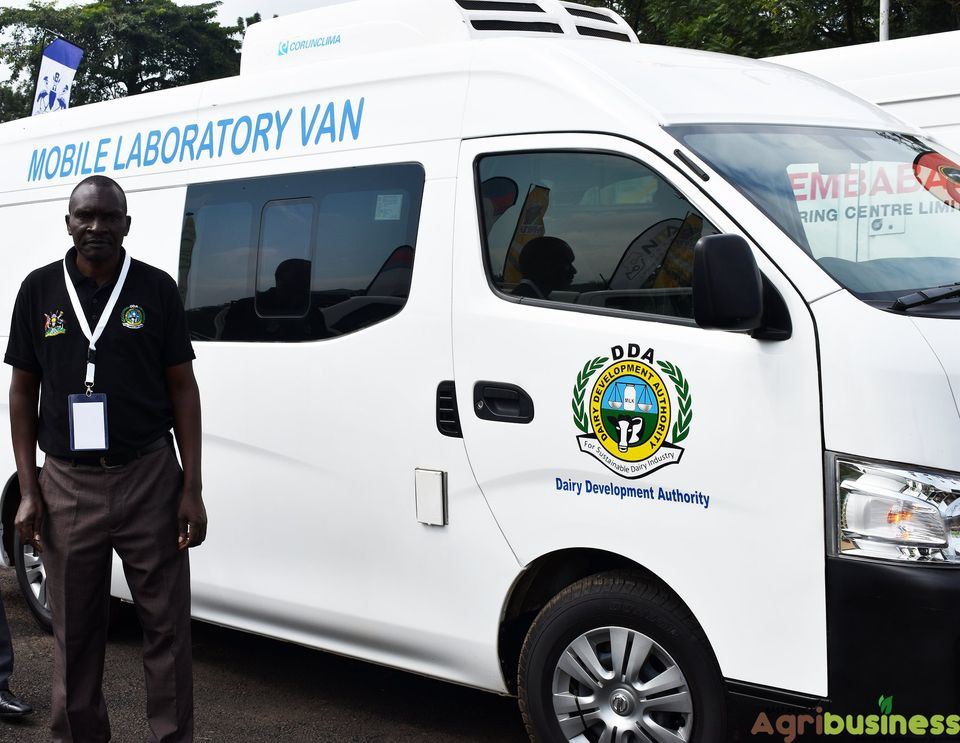

Successful Cases of DC electrical van rooftop ac units:
Corunclima is always committed to the development of electric products. We started to design, produce and export DC Electric Battery Driven Refrigeration Units and DC Electric Aircon since 2006, we own the key technology.
Dealer wanted. OEM/ODM are available.
If you are looking for rooftop ac units for vans, or want to be our dealer, please feel free to contact us.
Inquiry to info@corunclima.com
